R9 Connector Pinouts

117

D.4. R9 High Voltage Output 10-Pin Female Connector

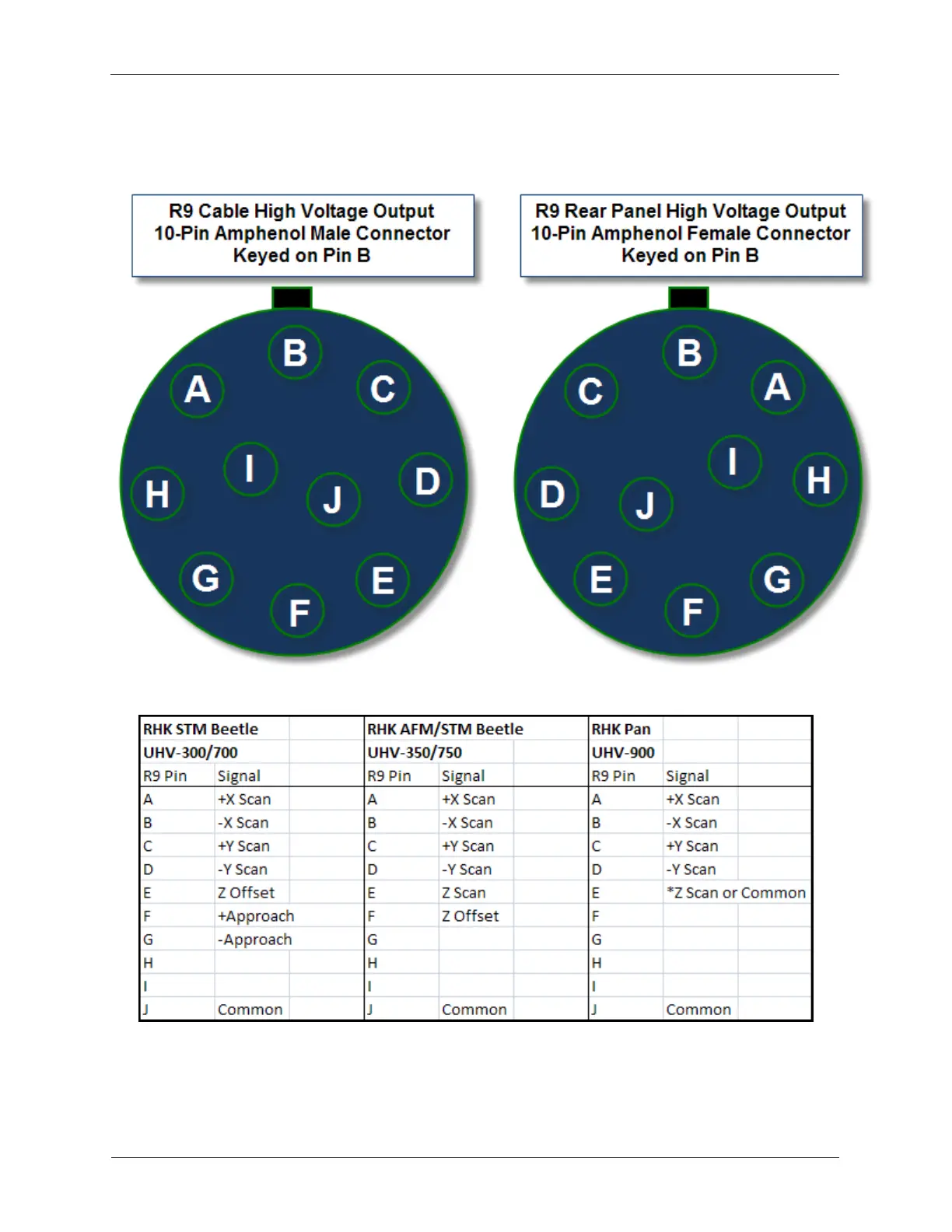

Figure D.4. R9 High Voltage Output 10-Pin Female Connector

Figure D.5. R9 High Voltage Output Defaults for RHK Microscopes
