122

Appendix E. Configuring the High

Voltage Block

This appendix will discuss how to configure the High Voltage Block for use with the various scan head

designs. It will also have information about setting the jumpers on the high voltage boards to change the

bandwidth of the high voltage outputs.

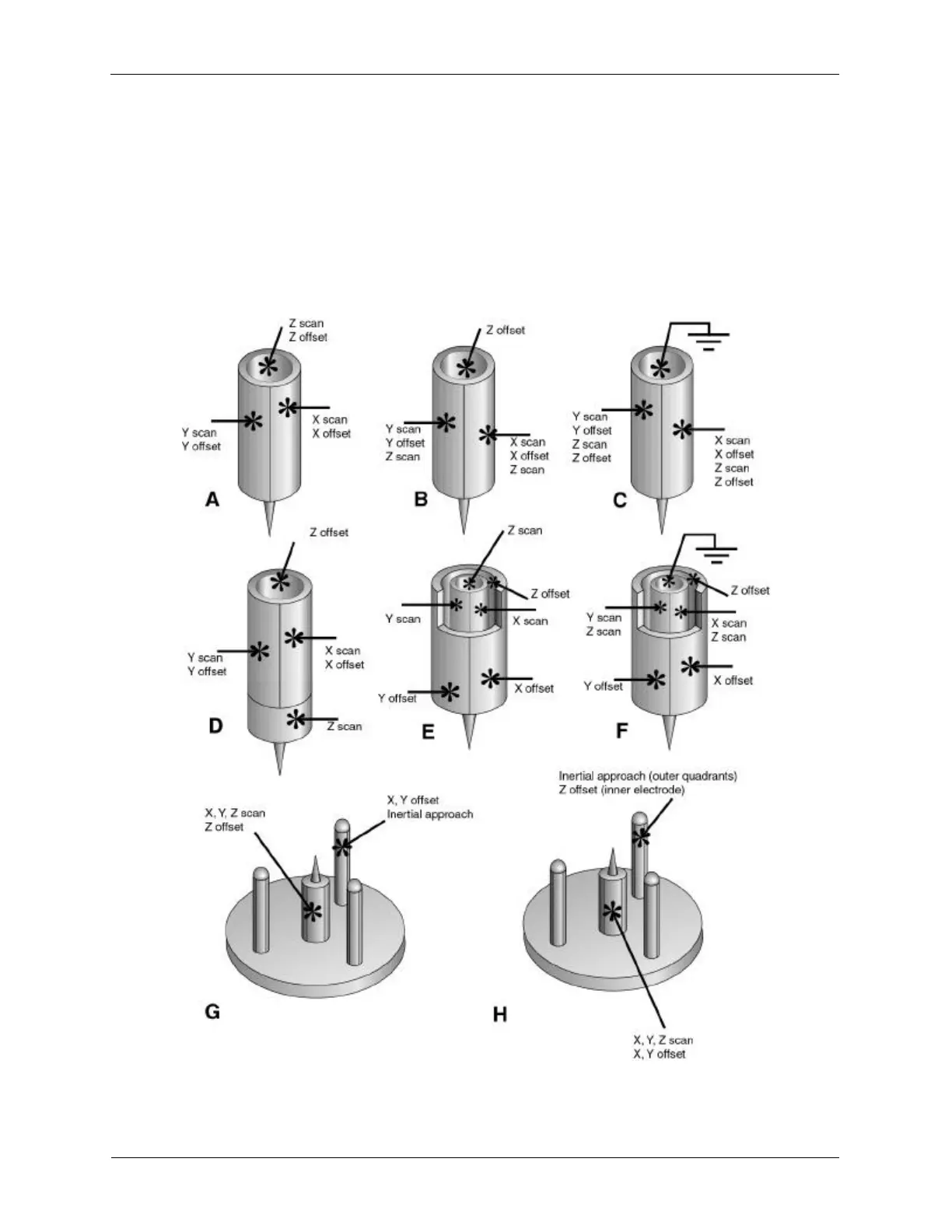

Figure E.1. Common Scan Head Designs
