114

Appendix D. R9 Connector Pinouts

D.1. R9 Preamp I/O 44-Pin Female Connector

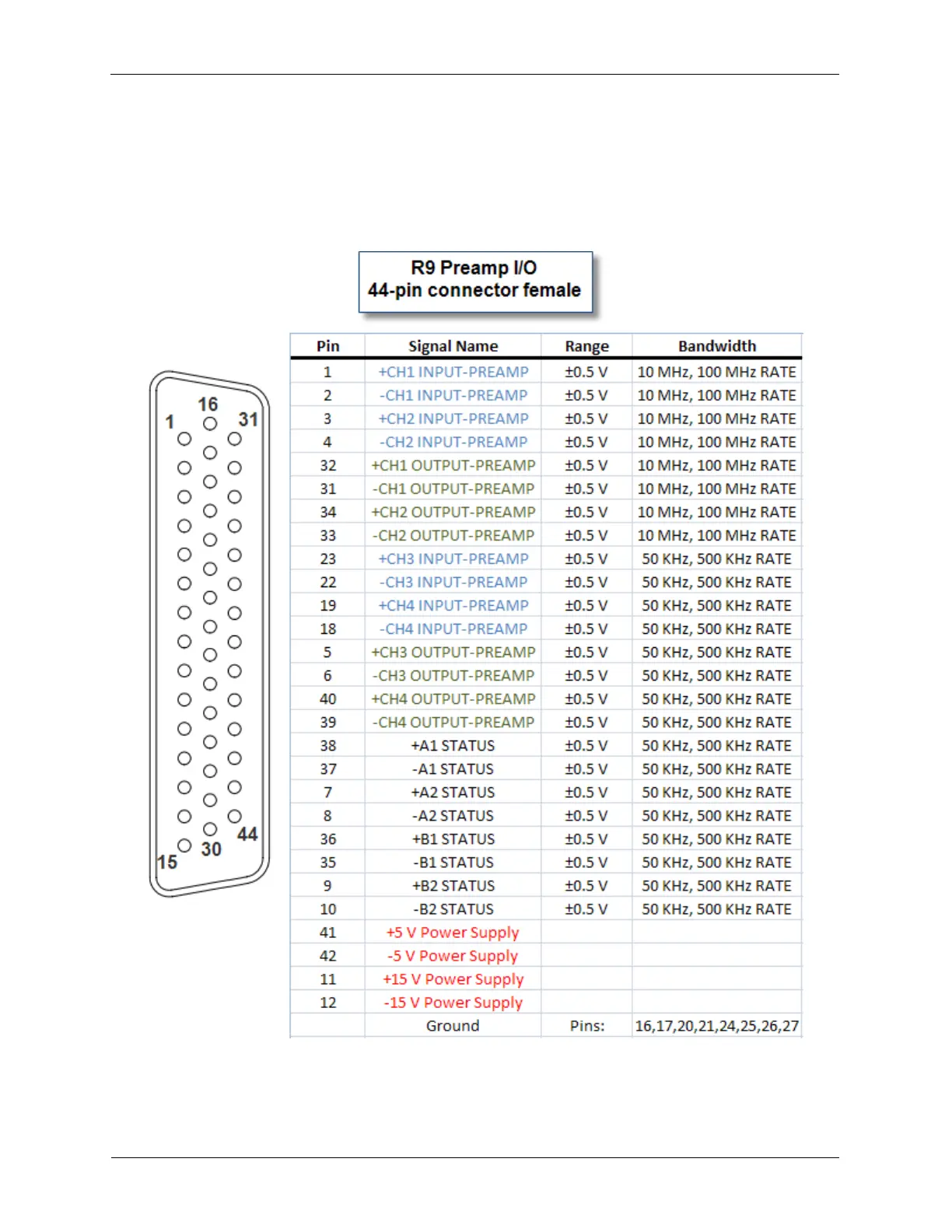

Figure D.1. R9 Preamp I/O 44-Pin Female Connector
