Approach

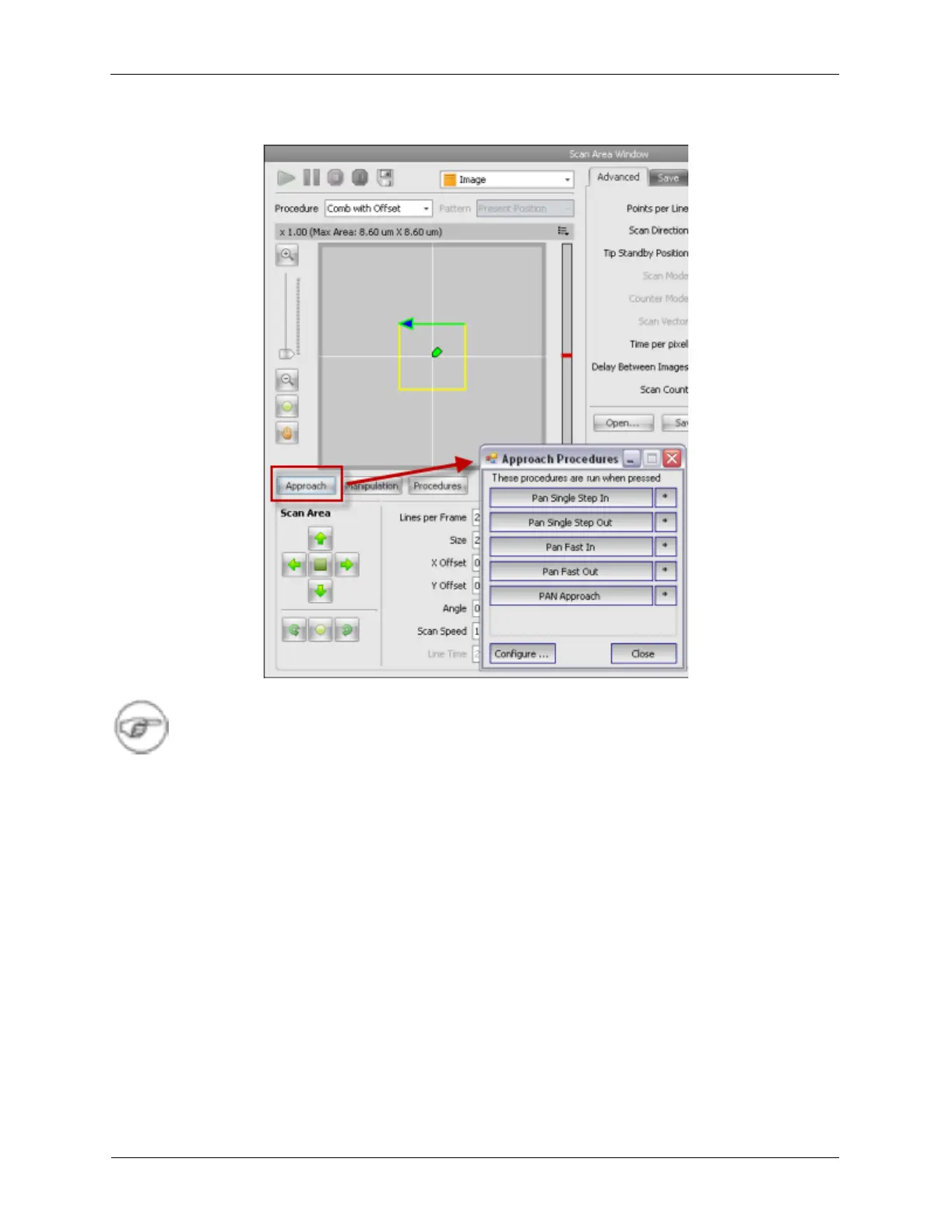

Figure 3.1. Open the Approach Procedures Panel

Note

The Approach Procedures can be different for each microscope! The Pan Approach

Procedures are shown above.

3.2 Feedback Settings

Open the Dashboard to view the Feedback settings before trying to approach. Part of the Dashboard

may resemble the following figure.
