RHK Technology R9 - Figure 1.12. Workbench

To Next Page

To Previous Page

Prepare Your SPM System

Now, some initial testing can be performed without risking any changes to the UHV 300.ihl file. After the

Offline Testing, the UHV 300.ihl file can be opened again.

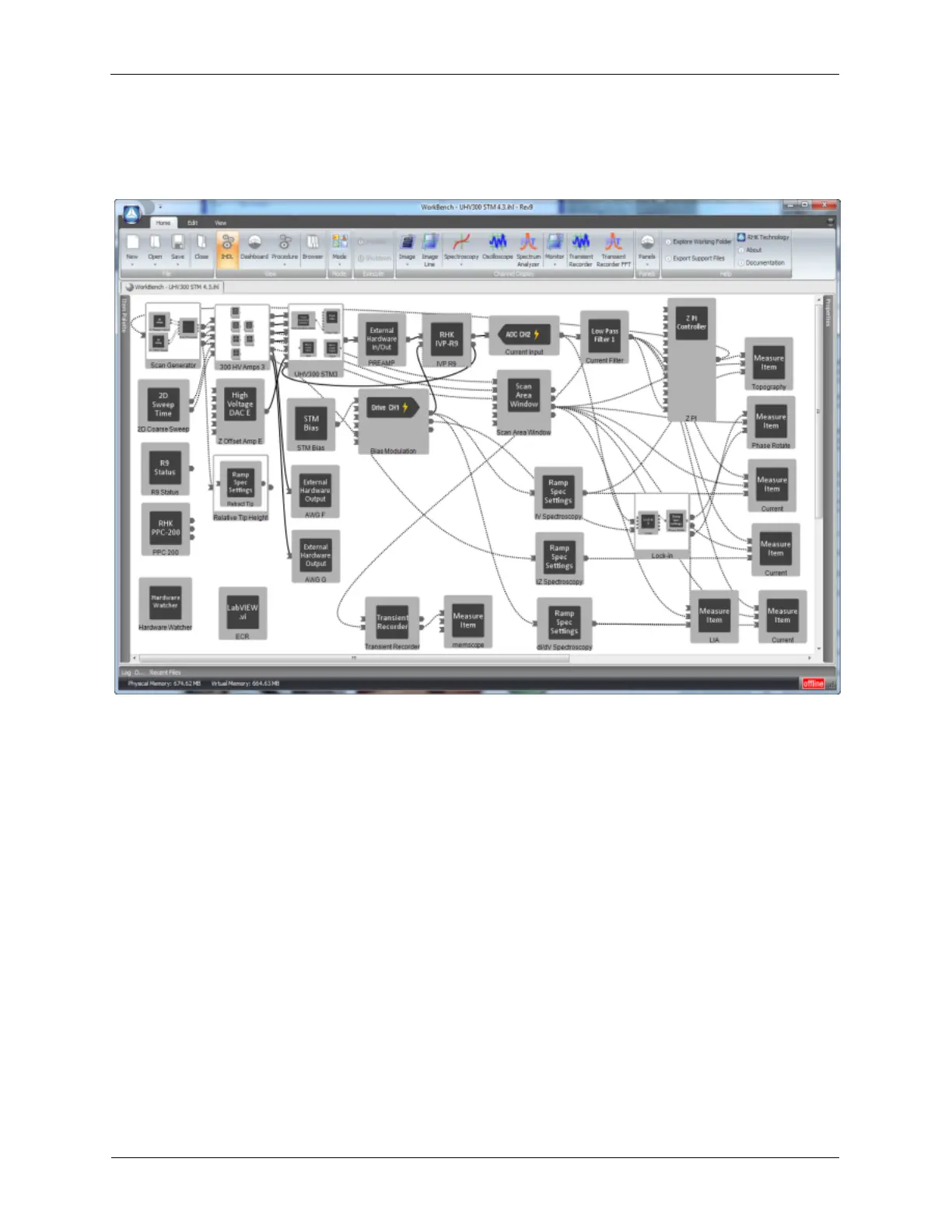

Figure 1.12. Workbench - Testing UHV 300.ihl

Turn on the R9 Controller. Your monitors should resemble the image below.
