RHK Technology R9 - Appendix L. Power Supply Wiring; Figure L.1. Power Supply Terminal Wiring; Table L.1. R9 Input Fuses

To Next Page

To Previous Page

196

Appendix L. Power Supply Wiring

The R9 Controller's power supply can be wired for 100 VAC, 120 VAC, and 230 VAC input voltages. The

two fuses F1 and F2 are Slo-Blo Type-T, selected based on the input voltage. The figure below shows

how the R9 Controller power supply's terminal strip is configured for different input voltages. The table

below lists the values used for the fuses.

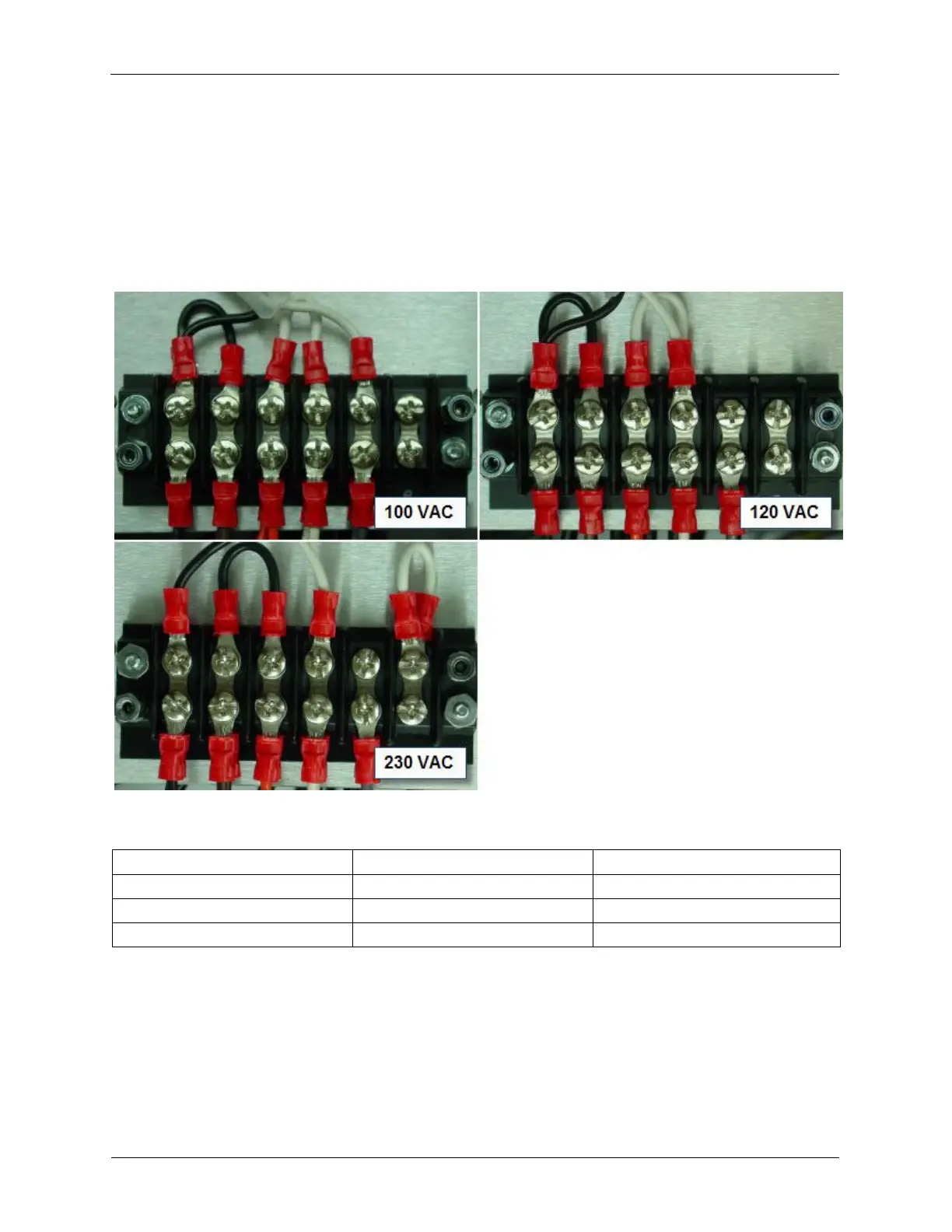

Figure L.1. Power Supply Terminal Wiring

Table L.1. R9 Input Fuses

Input Voltage

Fuse F1

Fuse F2

100 VAC

0 Ω Copper Jumper

16 A

120 VAC

0 Ω Copper Jumper

16 A

230 VAC

10 A
