Hardware Space Components
B.16. Forth Scripts
Forth Scripts are low level text commands that can be used to access low level features for the firmware
for which no Dashboard control panels exist. Forth text commands are entered into the Properties Panel
and will then be displayed in the Script window in Hardware Space. Forth Scripts are primarily used
during testing and for advanced applications. Most users will not need to interface with Forth Scripts. The
Forth Script icon is found in the General drawer of the Item Palette.

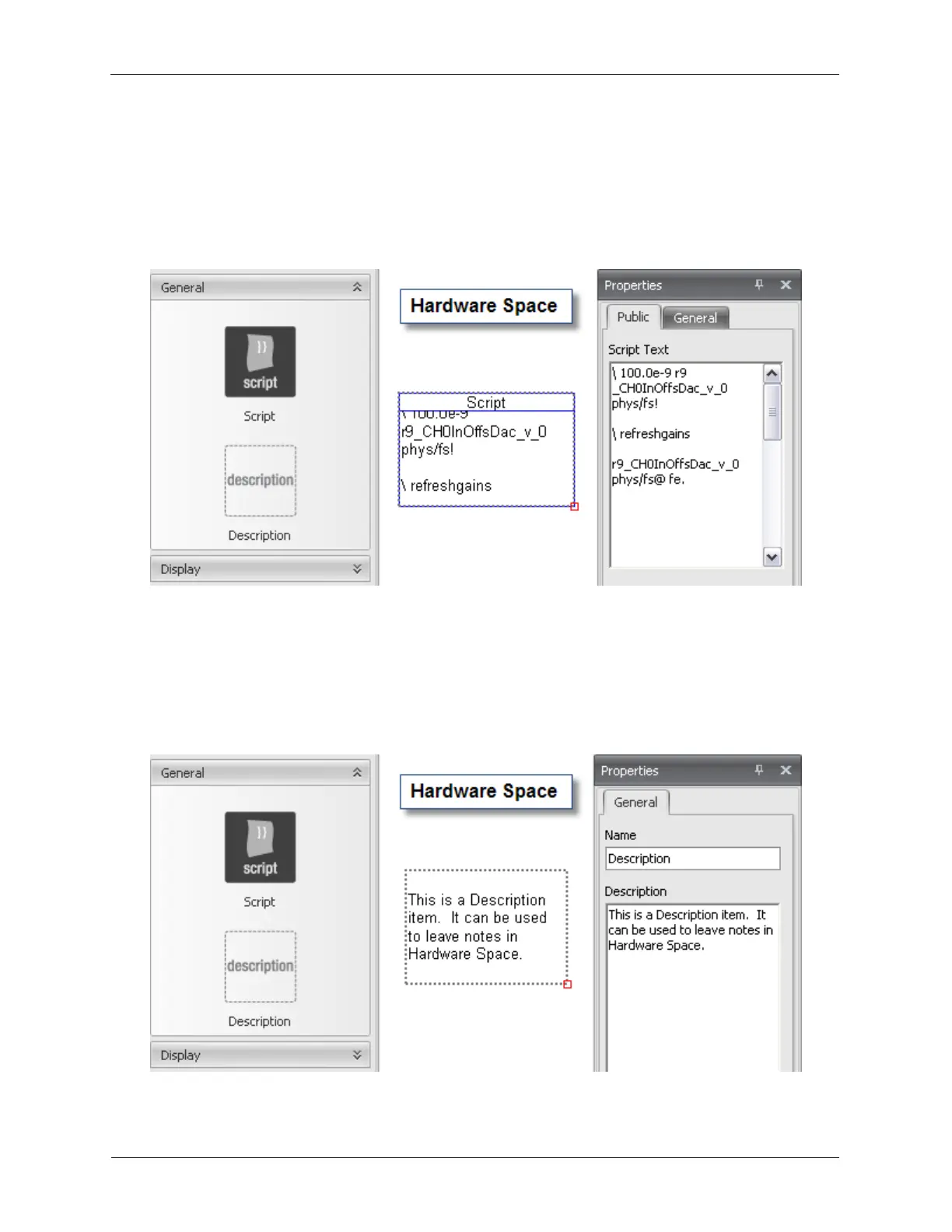

Figure B.35. Forth Scripts
B.17. Description
The Description window is a notepad that allows the user to make notes to be saved on the Hardware
Space. This can be used to make a note about a special feature of that IHL file or a reminder of why
things were changed from a default configuration. The text in the Description window has no effect on
the operation of R9. The Description icon is found in the General drawer of the Item Palette.
Figure B.36. Description
