Configuring the High Voltage Block

123

Tip

The RHK Microscopes use the following configurations:

• RHK UHV300/700 STM Beetle: Type H

• RHK UHV350/750 AFM/STM Beetle: Type D

• RHK UHV900 Pan: Type C

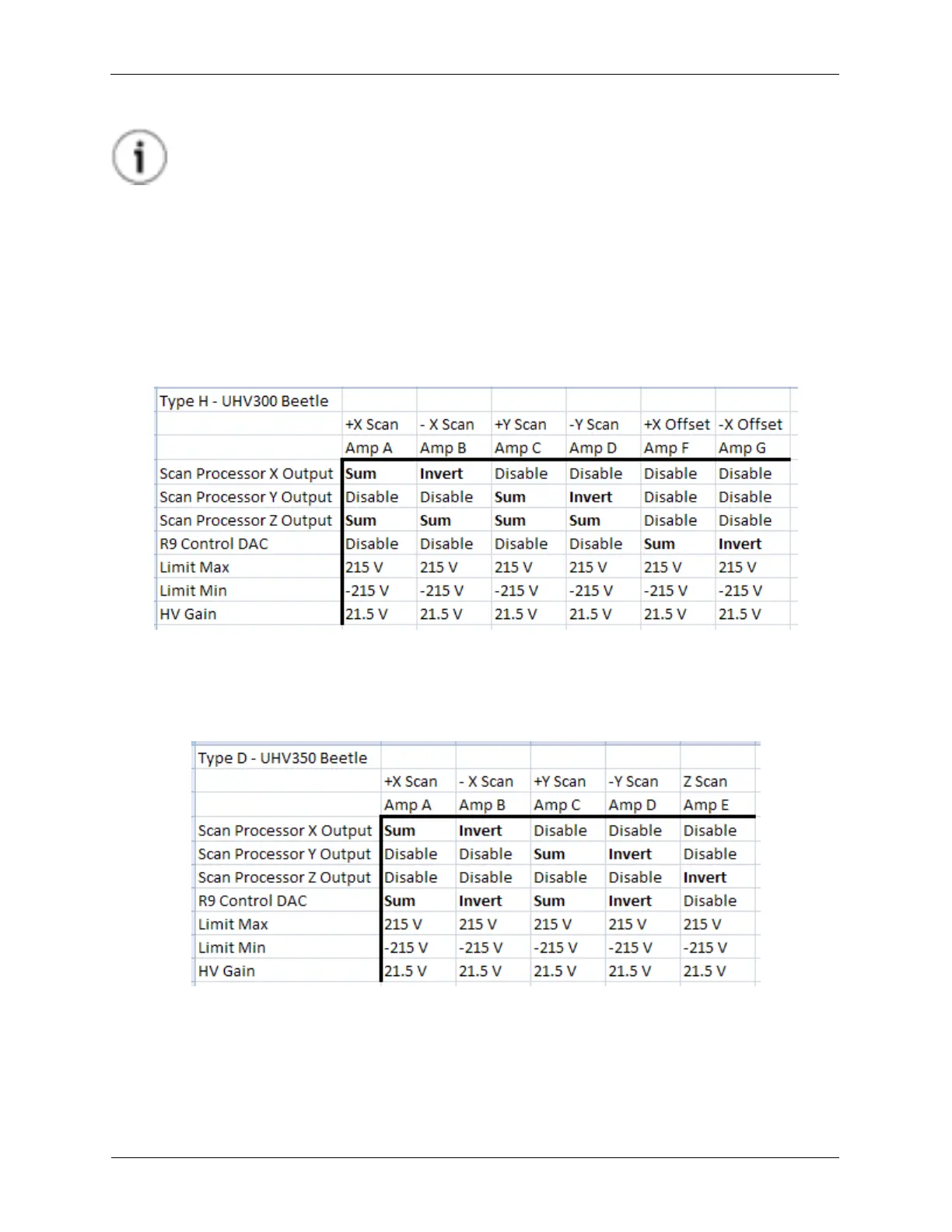

E.1. RHK UHV300/700 STM Beetle

Figure E.2. RHK UHV300/700 High Voltage Block

E.2. RHK UHV350/750 AFM/STM Beetle

Figure E.3. RHK UHV350/750 High Voltage Block
