RHK Technology R9 - Appendix J. Details on Procedure Space Constructions; J.1. Constructing Procedures

To Next Page

To Previous Page

R9 Connector Pinouts

119

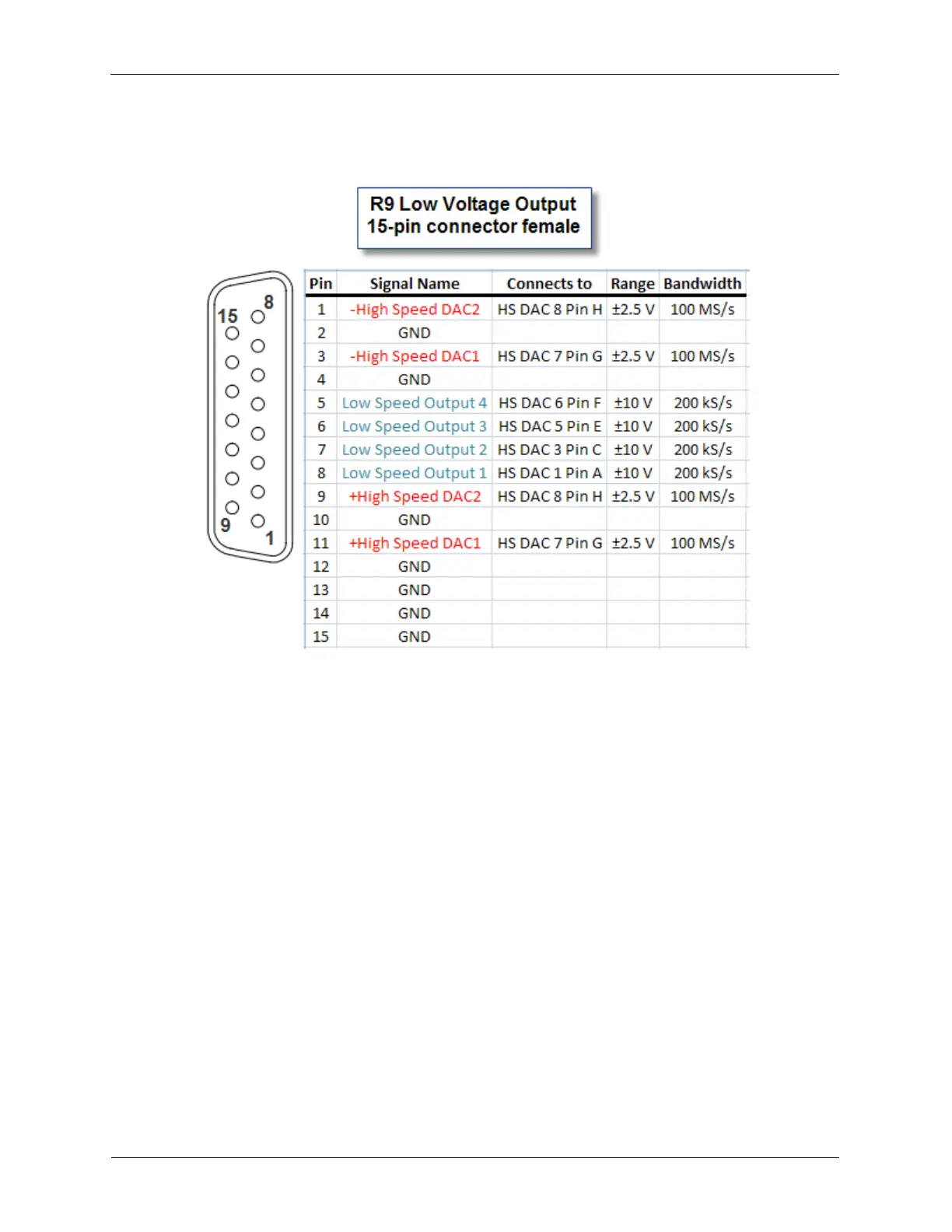

D.6. R9 Low Voltage Outputs 15-Pin Female Connector

Figure D.7. R9 Low Voltage Outputs 15-Pin Female Connector
