Appendix A. IHDL Element Details

A.1. Overview of a Hardware Item

All the Hardware Items have a similar organization and operation. Open up the Channel 1 Bias Drive and

see exactly how it works and how to use it.

The Channel 1 Bias Drive Hardware item, its Properties Palette, its Dashboard and a simplification of the

Dashboard are shown in the figure below.

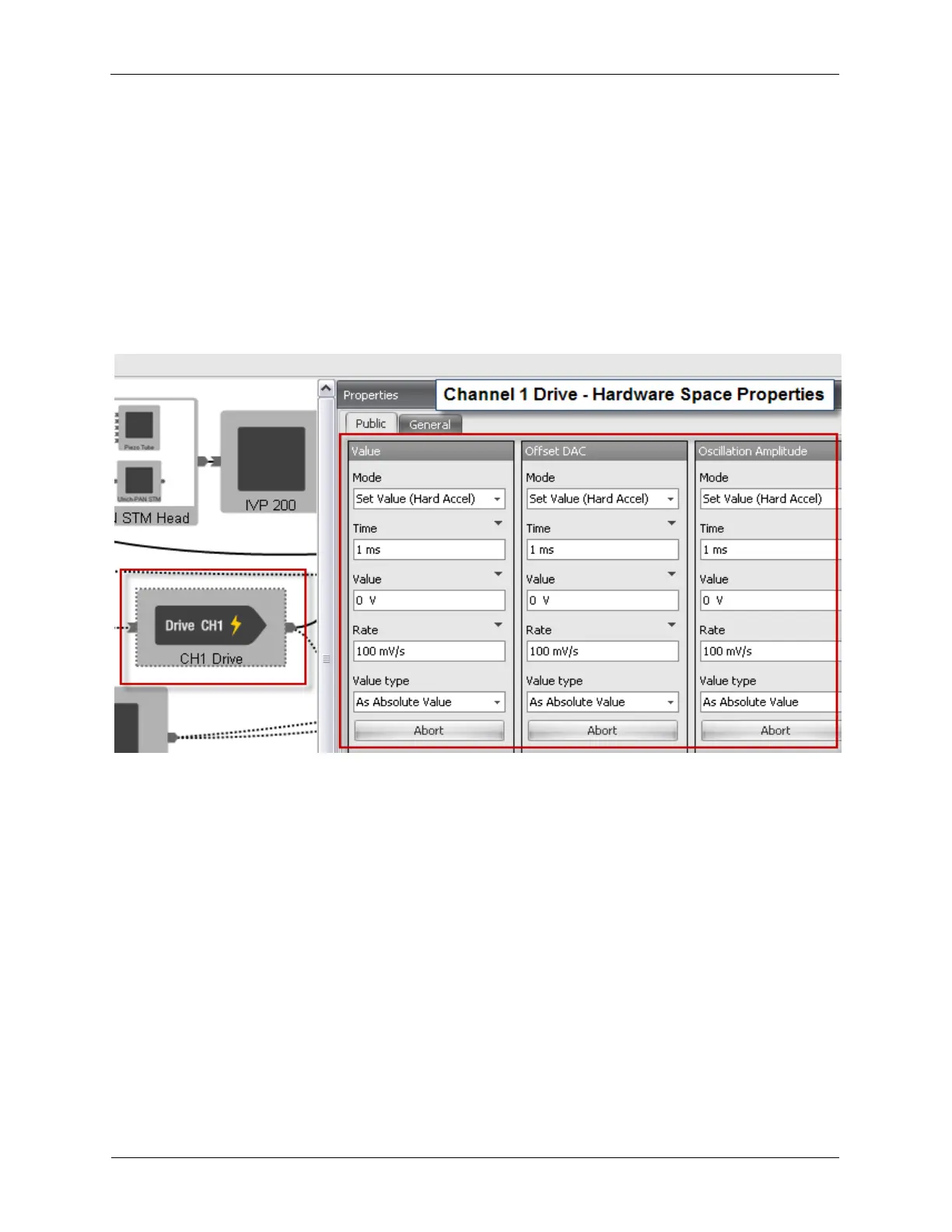

Figure A.1. Hardware Space Properties
