K.2.2. Settings Tab

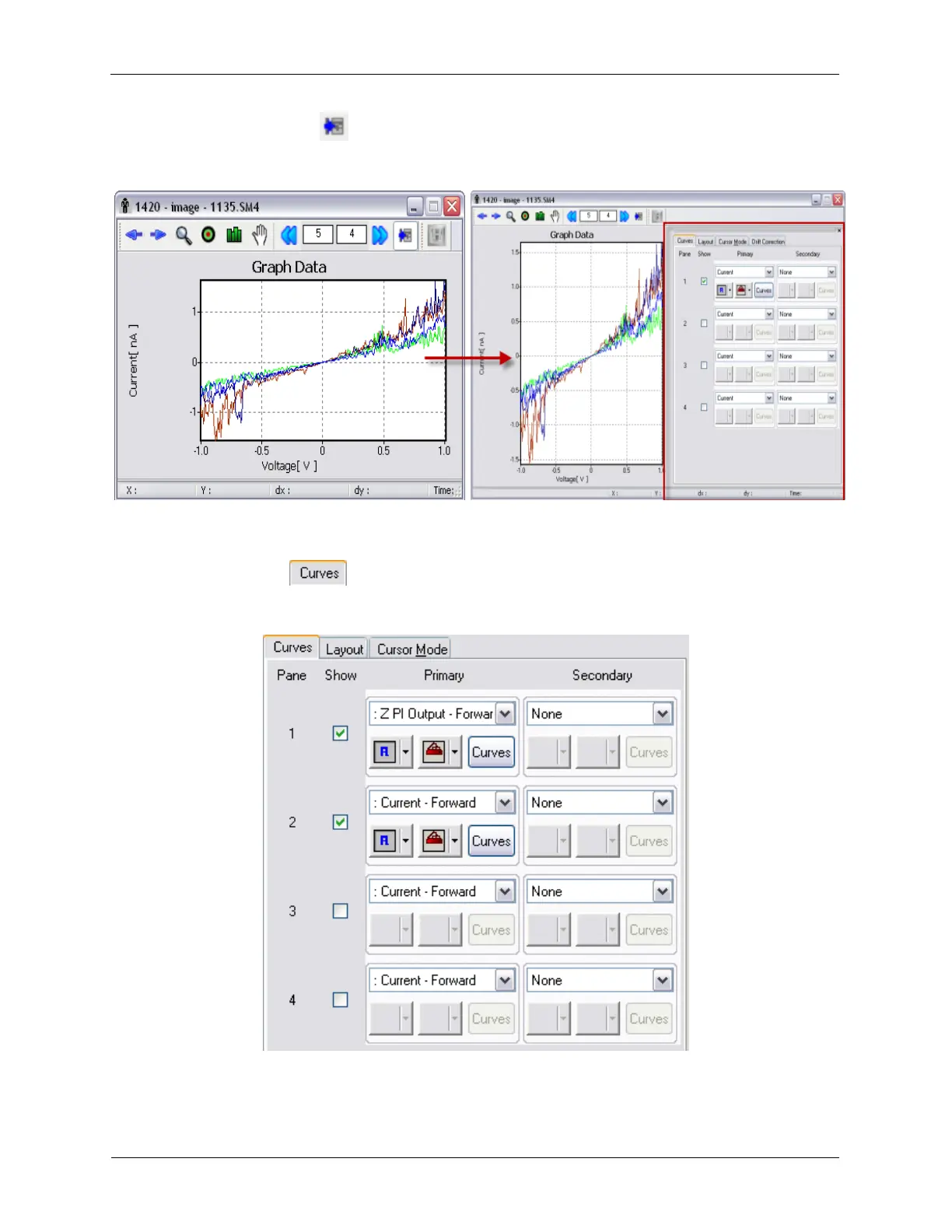

Figure K.21. XY Graph Settings

Pressing the Settings Tab toolbar icon will expand the XY Graph Window to include some additional

features.

K.2.2.1. Curves Tab

Figure K.22. XY Graph Settings - Curves

The Curves Tab allows some visual customization of the data. The displayed data channel can be

selected from the Primary drop-down menu.
