RHK Technology R9 - Figure J.17. Results of Validation; Figure J.18. Real-Time Wiring Validation

To Next Page

To Previous Page

Details on Procedure Space Constructions

157

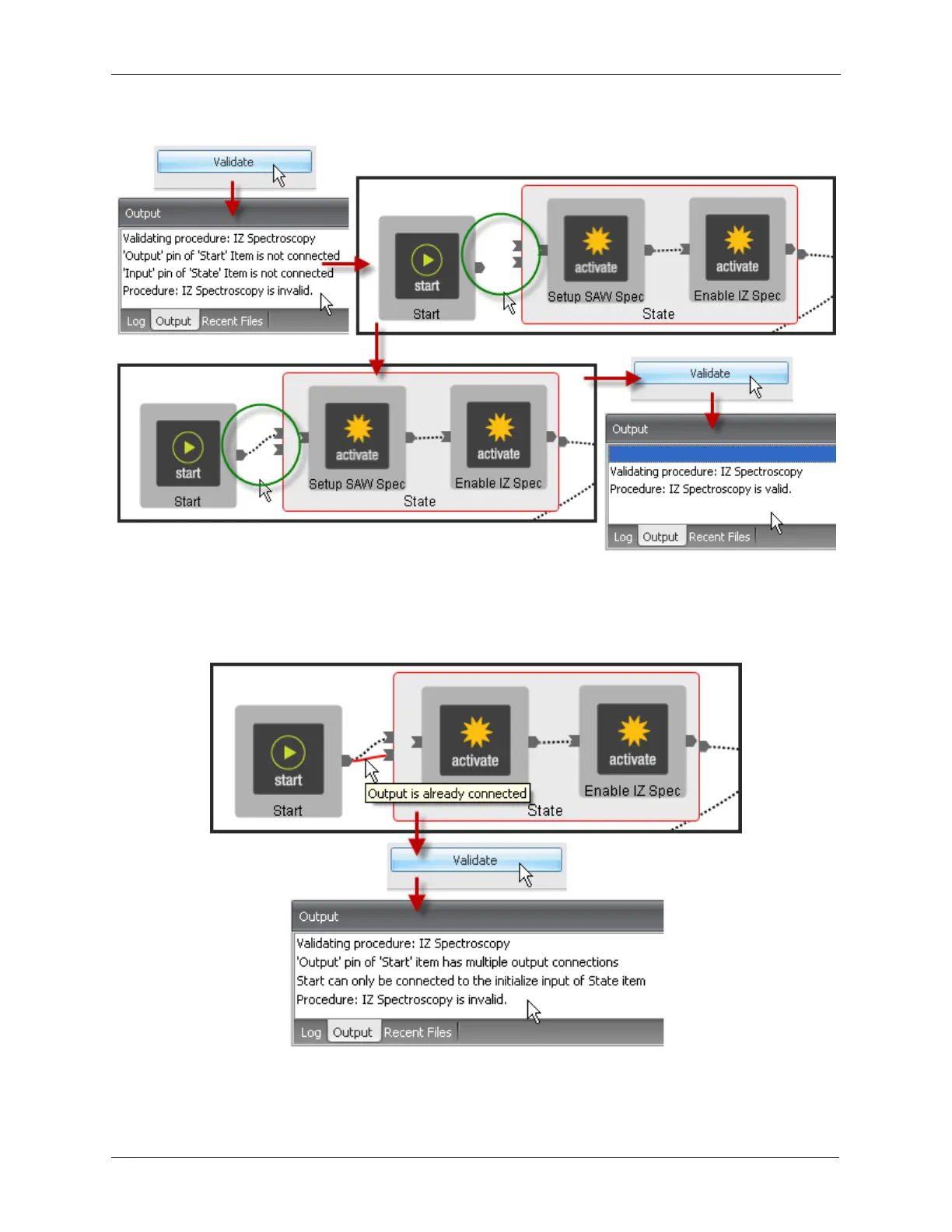

Figure J.17. Results of Validation

In addition to the Validation test, wiring errors are also shown in real-time. If a connection is made that

cannot be executed by R9, it will be immediately shown as a red line. This error will also be shown during

the Validation process if it was not corrected.

Figure J.18. Real-time Wiring Validation

All Validated procedures are displayed with a green dot next to their names in the Procedures drop-down

list as well as on any open Procedure tab. Any procedure that has failed Validation will be displayed with

a red dot.
