B.13. Status ADCs
The four Status A/D Inputs connect to the R9 PSD Interface to read in the four segment PSD voltages.
These signals can optionally be measured and recorded as any other data channels. These can also be
used as general purpose differential inputs with a ±0.5 V input range.

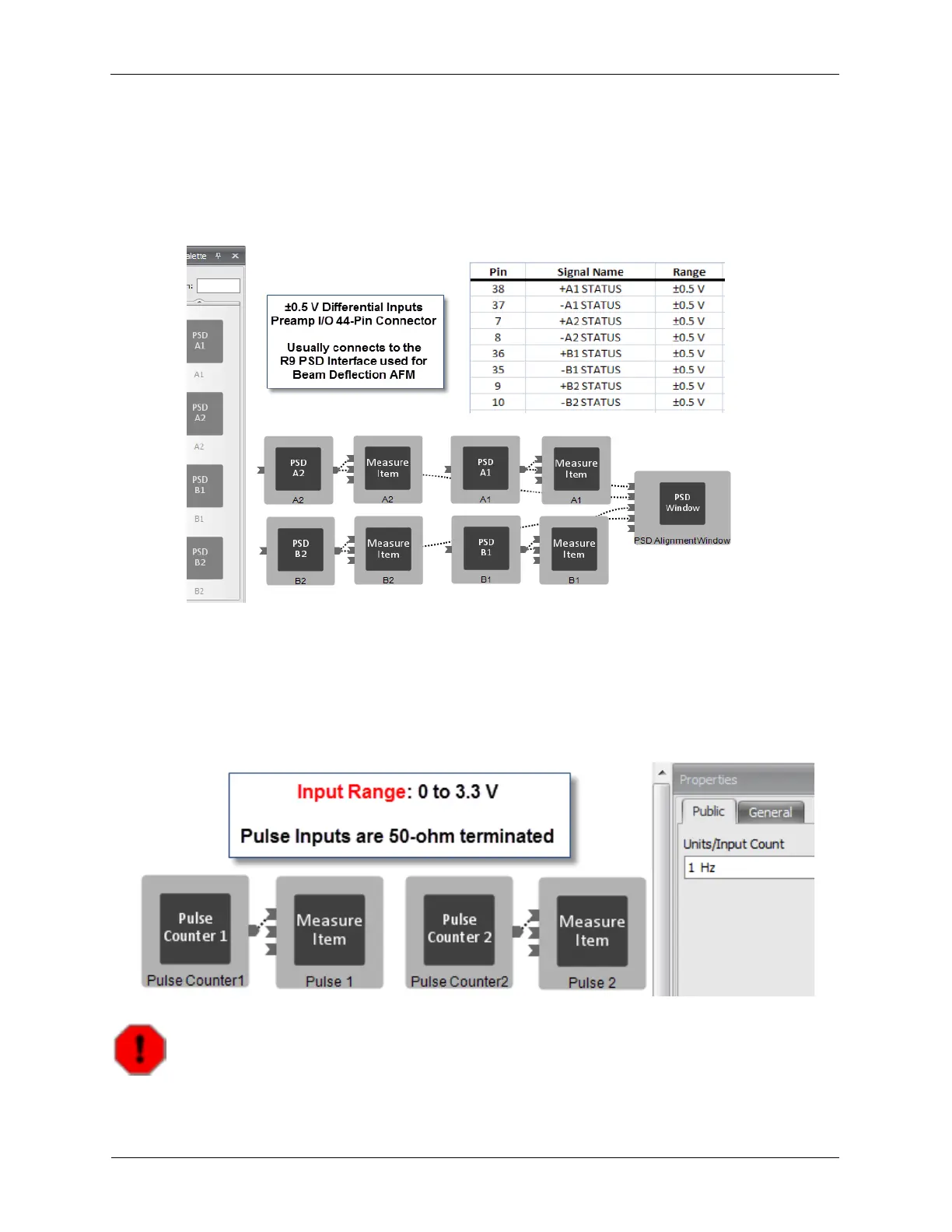

Figure B.32. Status A/D Inputs
B.14. Pulse Counting
The Pulse Inputs are 50-ohm terminated.
Figure B.33. Pulse Counting
Warning
The pulse inputs only accept voltages between 0V to 3.3V. Going outside these limits will
damage the R9 controller.
