Operations and Maintenance Manual Software Calibration
Version 1.2 - June 2004 12 - 5

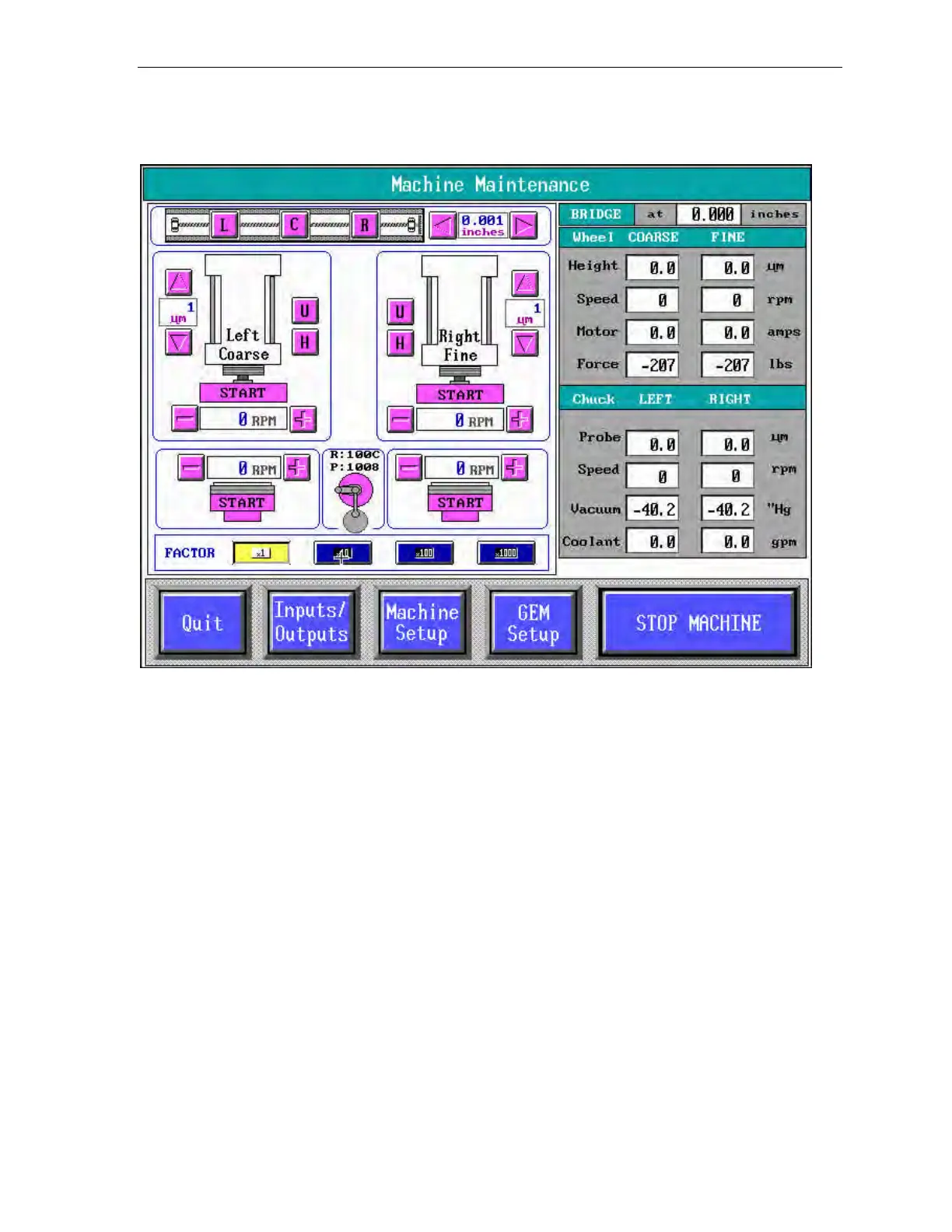

Figure 12-1 Machine Maintenance Menu
The images (icons) displayed on this menu represent the bridge, the coarse and fine
grind spindles, and the left and right work chucks.
INFORMATION AVAILABLE AT THE MAINTENANCE MENU
Status Display Area
The real time status display, located at the right side of the Machine Maintenance
menu screen, monitors machine component position and function values continuously
while machine power is on. The information provided is detailed in the table below.
