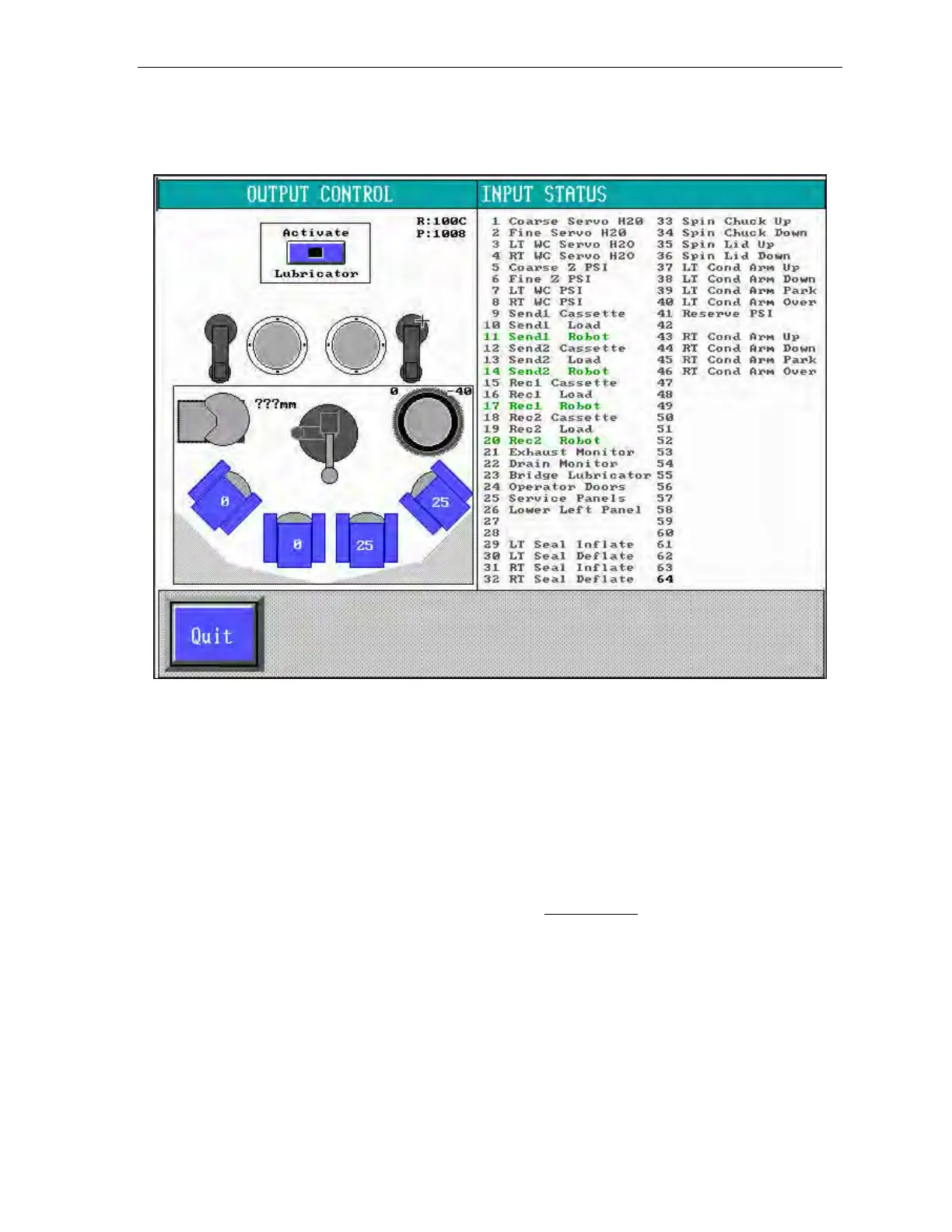

Figure 12-2 Output Control / Input Status Menu
INFORMATION AND CHOICES AVAILABLE AT THE OUTPUT CONTROL/INPUT STATUS MENU
Notes on Input Status
• Refer to Appendix D of this manual for the 7AF Input/Output Address Lists.
• On the Output Control/Input Status menu, active inputs are highlighted and
displayed in green.
