Strasbaugh nTellect (Model 7AF) Wafer Grinder
13 - 8 Version 1.2 - June 2004
LEFT/RIGHT CHUCK CONDITIONING ARMS UP
Solenoid
No.
Component Name
Location/
Drawing No.
Setting Goals
2
8
Left Chuck Conditioning
Arm
Right Chuck Conditioning
Arm
Regulators and
Gauges: Door 14
Panel
Flow Controls: 1 at
each cylinder.
Drawing: 224038
Pressure: 60 PSI
Flow Controls: Set to
eliminate jarring
stops at either end.
Procedure for Setting Pressure and Flow Control:

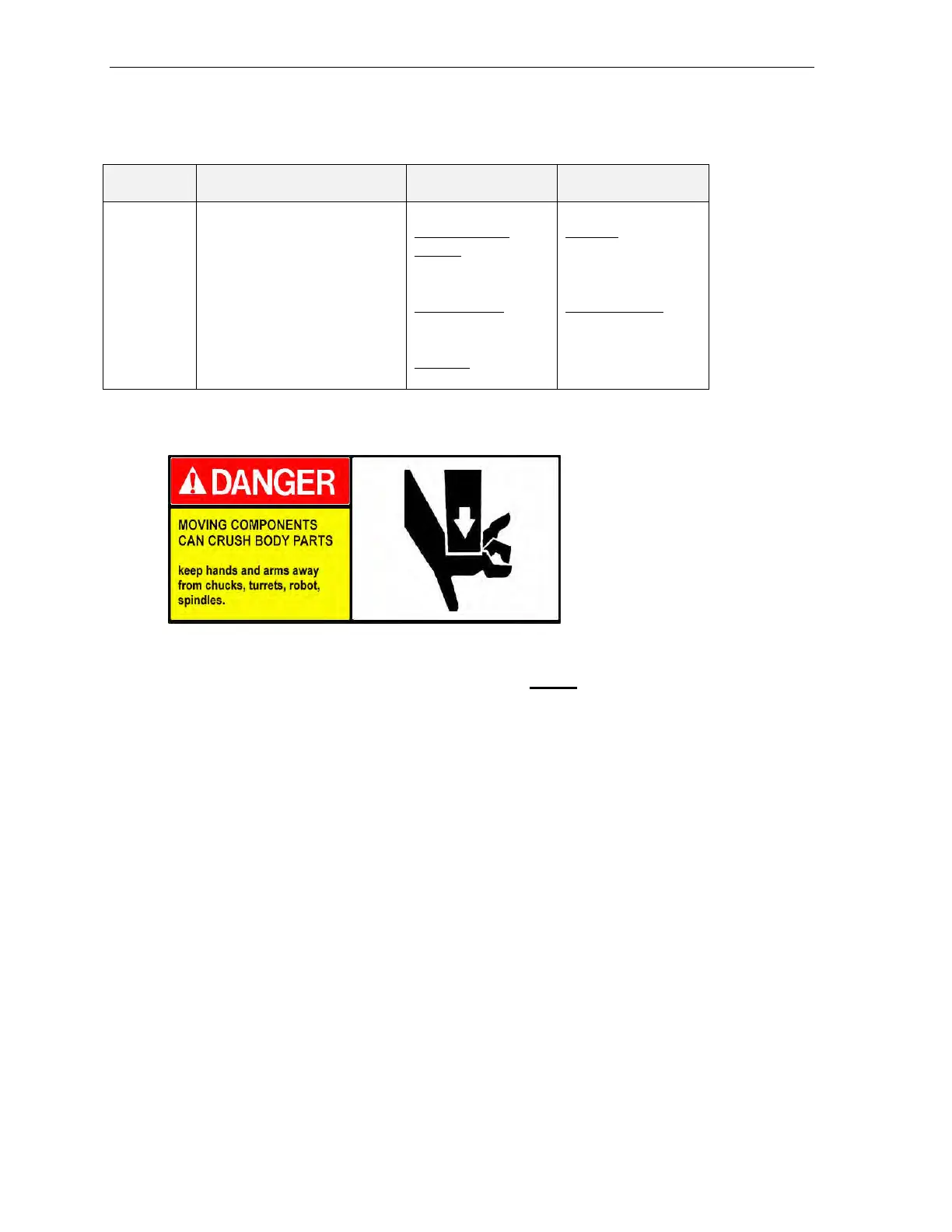

CAUTION! To prevent injury or a crash, before exercising the cylinder, make
sure all objects, including your hands are clear of the cylinder.
1. Open doors 14 and 17.
