Operations and Maintenance Manual Pneumatic Adjustments
Version 1.2 - June 2004 13- 15

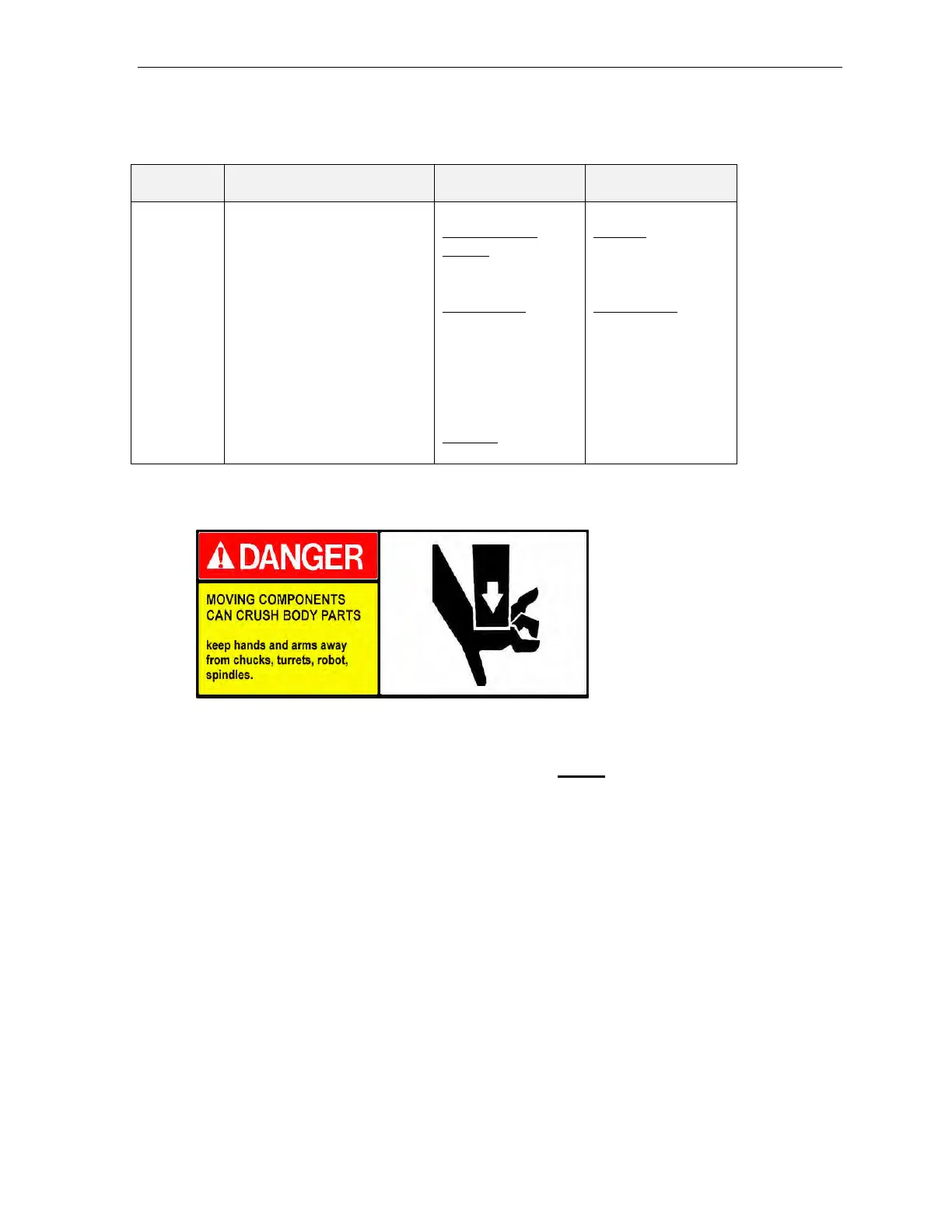

SEND 1 CASSETTE TURRET ROTARY ACTUATOR
Solenoid
No.
Component Name
Location/
Drawing No.
Setting Goals
14A
and
14B
Send 1 Cassette Turret
Rotary Actuator
Regulators and
Gauges: Door 7
Panel
Flow Control: At
the cylinder, located
inside a small drip
pan at the top of the
machine cabinet,
inside door 7.
Drawing: 224039
Pressure: 50 PSI
Flow Control: Set to
produce smooth,
steady movement of
the cylinder.
Procedure for Setting Pressure and Flow Control:
CAUTION! To prevent injury or a crash, before exercising the cylinder, make
sure all objects, including your hands are clear of the cylinder.
1. Rotate the knob on the regulator until the pressure gauge reads 50 PSI.
