Strasbaugh nTellect (Model 7AF) Wafer Grinder
13 - 22 Version 1.2 - June 2004

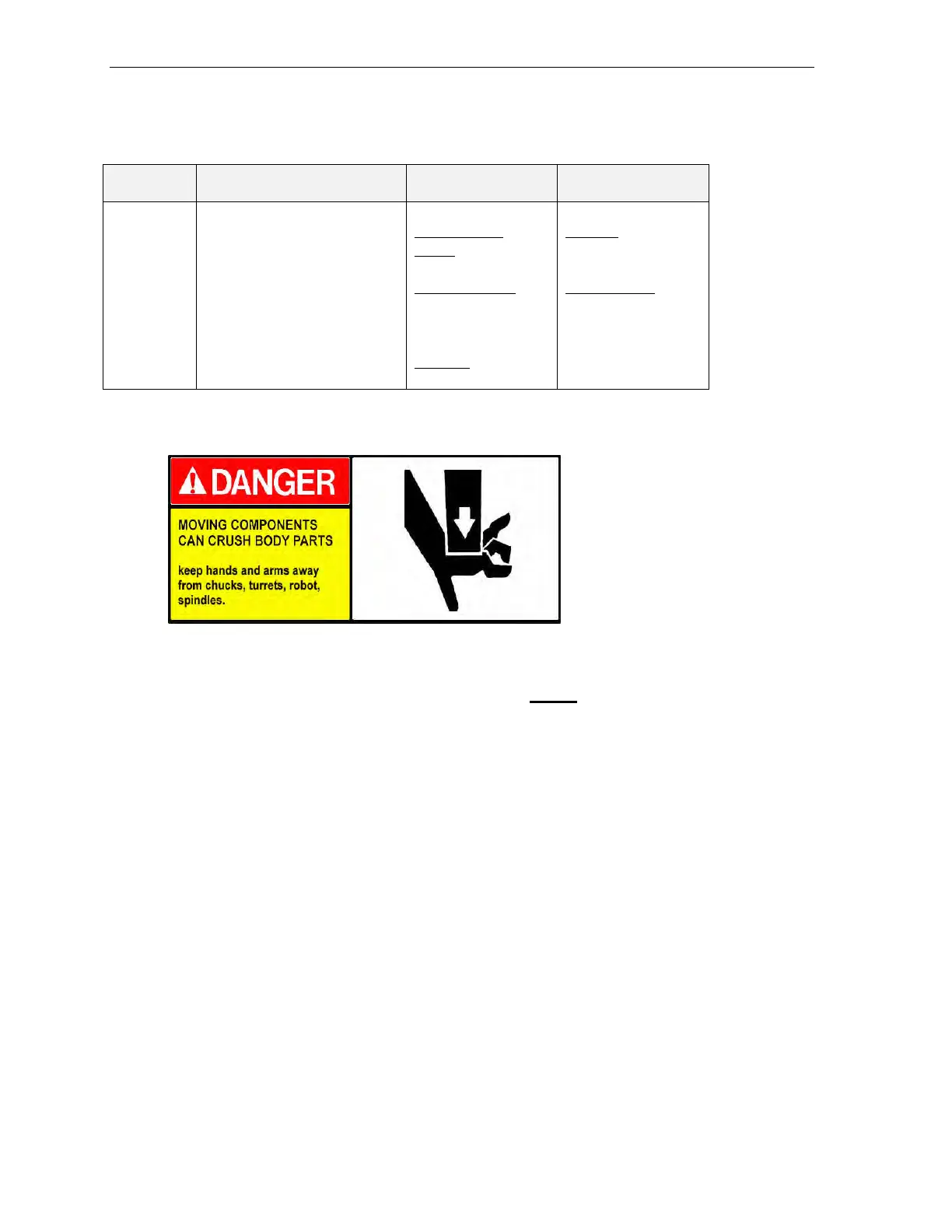

SPIN STATION SPINDLE UP/DOWN
Solenoid
No.
Component Name
Location/
Drawing No.
Setting Goals
28
Spin Station Spindle
Regulator and
Gauge: Door 7 Panel
2 Flow Controls: At
the cylinder, located
inside door 10.
Drawing: 224039
Pressure: 50 PSI
Flow Controls: Set to
produce smooth,
efficient movement
of the cylinder, with
no banging at either
end.
Procedure for Setting Pressure and Flow Controls:
CAUTION! To prevent injury or a crash, before exercising the cylinder, make
sure all objects, including your hands are clear of the cylinder.
1. Open door 7.
2. Rotate the knob on the regulator until the pressure gauge reads 50 PSI.
To Next Page
