Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-41

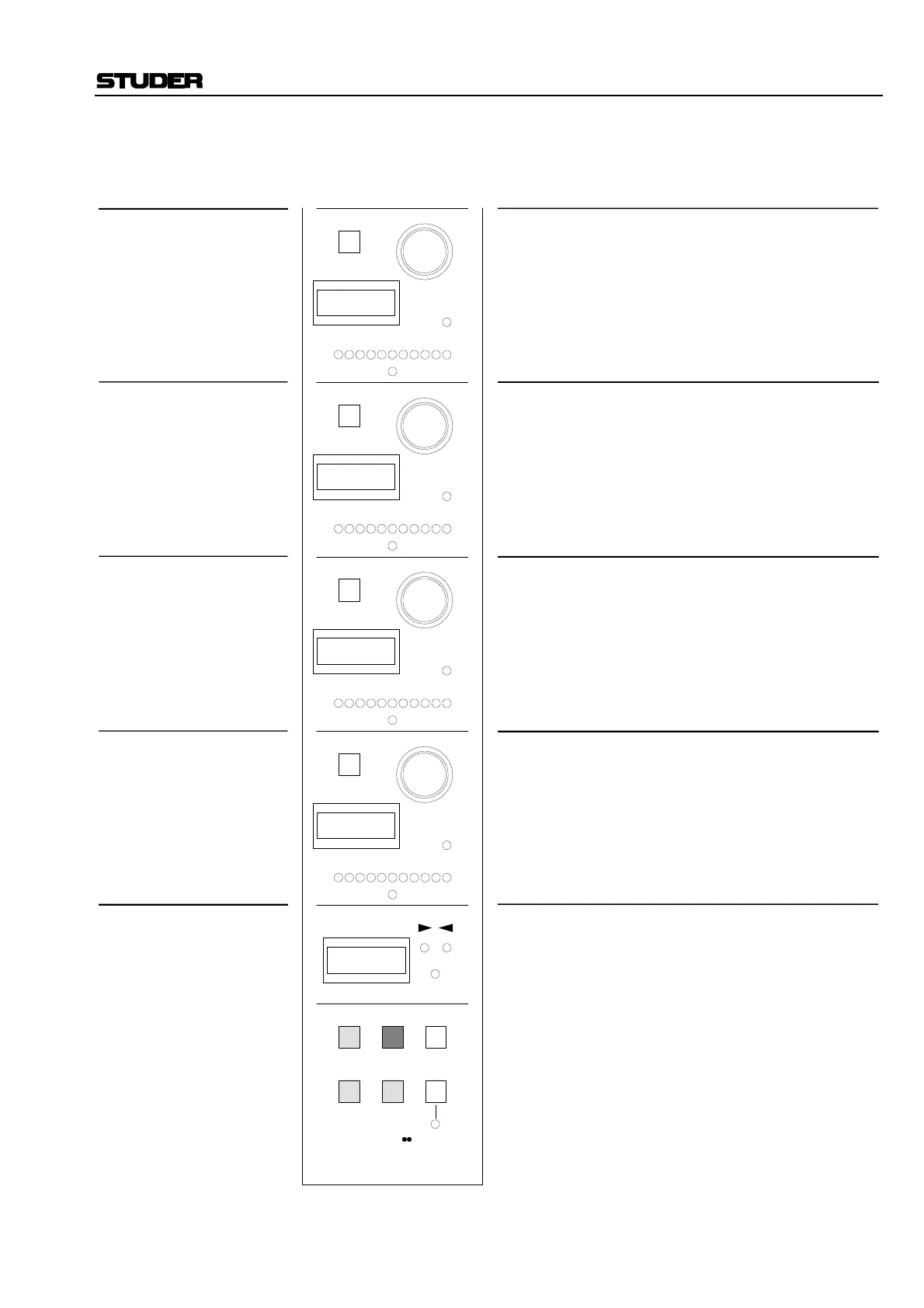

Example EQ2 Mode, Frequency Page:
Available operating elements and their function
PHASE
Display = Indication of EQ selection
EQ_2; EQ2 mode general page (page 1)
EQ_F; EQ2 mode frequency setting page (page 2)
EQ_Q; EQ2 mode Q setting page (page 3)
EQ_G; EQ2 mode gain setting page (page 4)
EQ2 mode control parameter
HI band frequency
HM band frequency
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Frequency adjustment
Dot display, indicates frequency setting
not used
F_HI; label of control parameter
141; frequency in Hz
2k51; frequency in kHz
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
EQ F
F LM
F LO
F HM
F HI
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Frequency adjustment
Dot display, indicates frequency setting
not used
F_HM; label of control parameter
141; frequency in Hz
2k51; frequency in kHz
LO band frequency
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Frequency adjustment
Dot display, indicates frequency setting
not used
F_LM; label of control parameter
141; frequency in Hz
2k51; frequency in kHz
LM band frequency
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Frequency adjustment
Dot display, indicates frequency setting
not used
F_LM; label of control parameter
141; frequency in Hz
2k51; frequency in kHz
