Studer D950 User Manual

D950 Digital Mixing System
3-42 Desk Operation SW V3.3 Date printed: 03.09.03

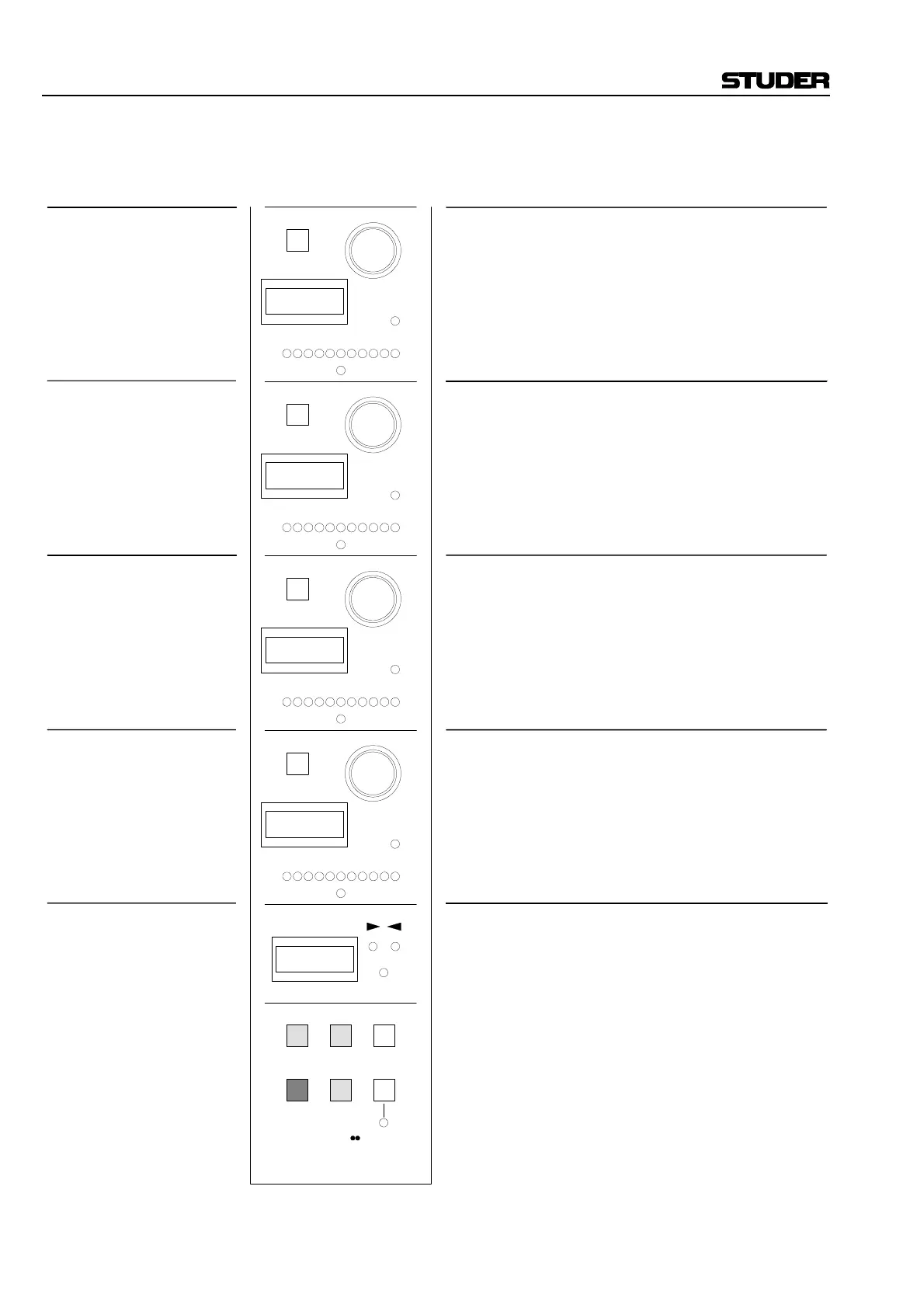

Example EQ2 Mode, Q Page:
Available operating elements and their function
PHASE
Display = Indication of EQ selection
EQ_2; EQ2 mode general page (page 1)
EQ_F; EQ2 mode frequency setting page (page 2)
EQ_Q; EQ2 mode Q setting page (page 3)
EQ_G; EQ2 mode gain setting page (page 4)
EQ2 mode control parameter
HI band Q setting and
shelving/peaking selection
HM band Q setting and
constant Q/constant range
selection
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Filter shelving/peaking selection (key is illuminated
when shelving is selected)
Q adjustment
Bar display, indicates Q setting
not used
SHLV; shelving filter is selected
Q . 27; Q is set to 0.27 (peaking filter)
Q8 . 7; Q is set to 8.7 (peaking filter)
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
EQ Q
Q.27
Q8.7
R.27
SHLV
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Filter constant Q/constant range selection (key is
illuminated when constant range is selected)
Q adjustment
Bar display, indicates Q setting
not used
R . 27; Q is set to 0.27 (constant range)
Q8 . 7; Q is set to 8.7 (constant Q)
LO band Q setting and
shelving/peaking selection
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Filter shelving/peaking selection (key is illuminated
when shelving is selected)
Q adjustment
Bar display, indicates Q setting
not used
SHLV; shelving filter is selected
Q . 27; Q is set to 0.27 (peaking filter)
Q8 . 7; Q is set to 8.7 (peaking filter)
LM band Q setting and
constant Q/constant range
selection
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Filter constant Q/constant range selection (key is
illuminated when constant range is selected)
Q adjustment
Bar display, indicates Q setting
not used
R . 27; Q is set to 0.27 (constant range)
Q8 . 7; Q is set to 8.7 (constant Q)
