D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-43

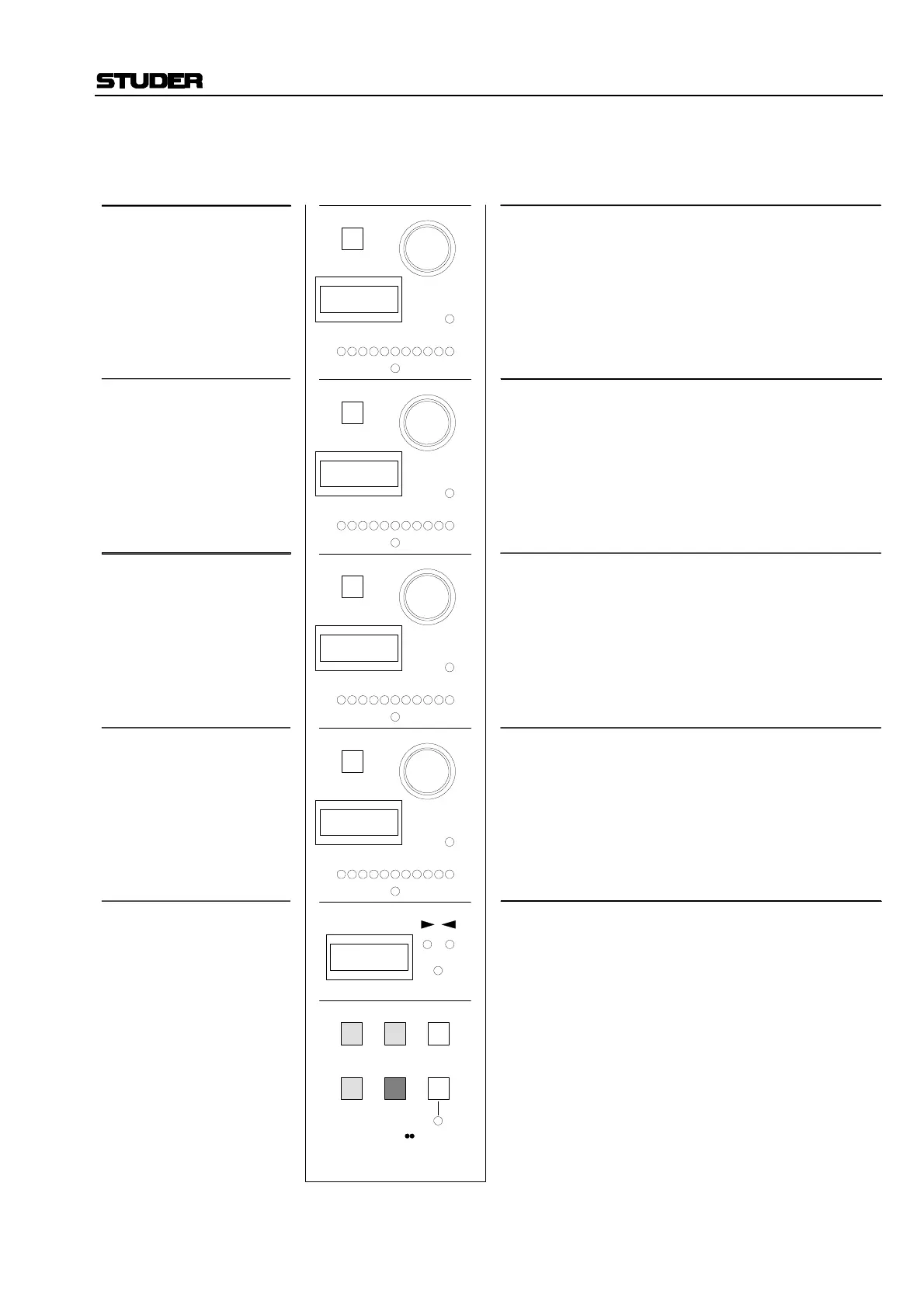

Example EQ2 Mode, Gain Page:
Available operating elements and their function
PHASE
Display = Indication of EQ selection
EQ_2; EQ2 mode general page (page 1)
EQ_F; EQ2 mode frequency setting page (page 2)
EQ_Q; EQ2 mode Q setting page (page 3)
EQ_G; EQ2 mode gain setting page (page 4)
EQ2 mode control parameter
HI band gain setting
HM band gain setting
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Gain (boost/cut) adjustment
Dot display, indicates gain setting
On if gain = 0 dB (no boost/cut)
G_HI; label of control parameter
–13 . ; gain is set to –13.5 dB (i.e. cut)
+6.5; gain is set to +6.5 dB (i.e. boost)
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK21
LAST MODE43
PAGE
FREEZE
EQ G
G LM
G LO
G HM
G HI
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Gain (boost/cut) adjustment
Dot display, indicates gain setting
On if gain = 0 dB (no boost/cut)
G_HM; label of control parameter
–13 . ; gain is set to –13.5 dB (i.e. cut)
+6.5; gain is set to +6.5 dB (i.e. boost)
LO band gain setting
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
LM band gain setting
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Band ON/OFF (key is illuminated when ON)
Gain (boost/cut) adjustment
Dot display, indicates gain setting
On if gain = 0 dB (no boost/cut)
G_LM; label of control parameter
–13 . ; gain is set to –13.5 dB (i.e. cut)
+6.5; gain is set to +6.5 dB (i.e. boost)
Band ON/OFF (key is illuminated when ON)
Gain (boost/cut) adjustment
Dot display, indicates gain setting
On if gain = 0 dB (no boost/cut)
G_LO; label of control parameter
–13 . ; gain is set to –13.5 dB (i.e. cut)
+6.5; gain is set to +6.5 dB (i.e. boost)
