Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Desk Operation 3-105
Example: Mono channel, VSP panning, page 2
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Pan mode selector
Pan mode selector
no function
no function
AMPL; amplitude mode
HRTF; HRTF mode
SPHR; sphere mode
ORTF; ORTF mode
AB; AB mode
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Divergence mode
select
Divergence mode
select
OFF
front
all
no function
DIVM; label of control parameter
OFF; no divergence
FRNT; divergence on front speakers
ALL; divergence on all speakers

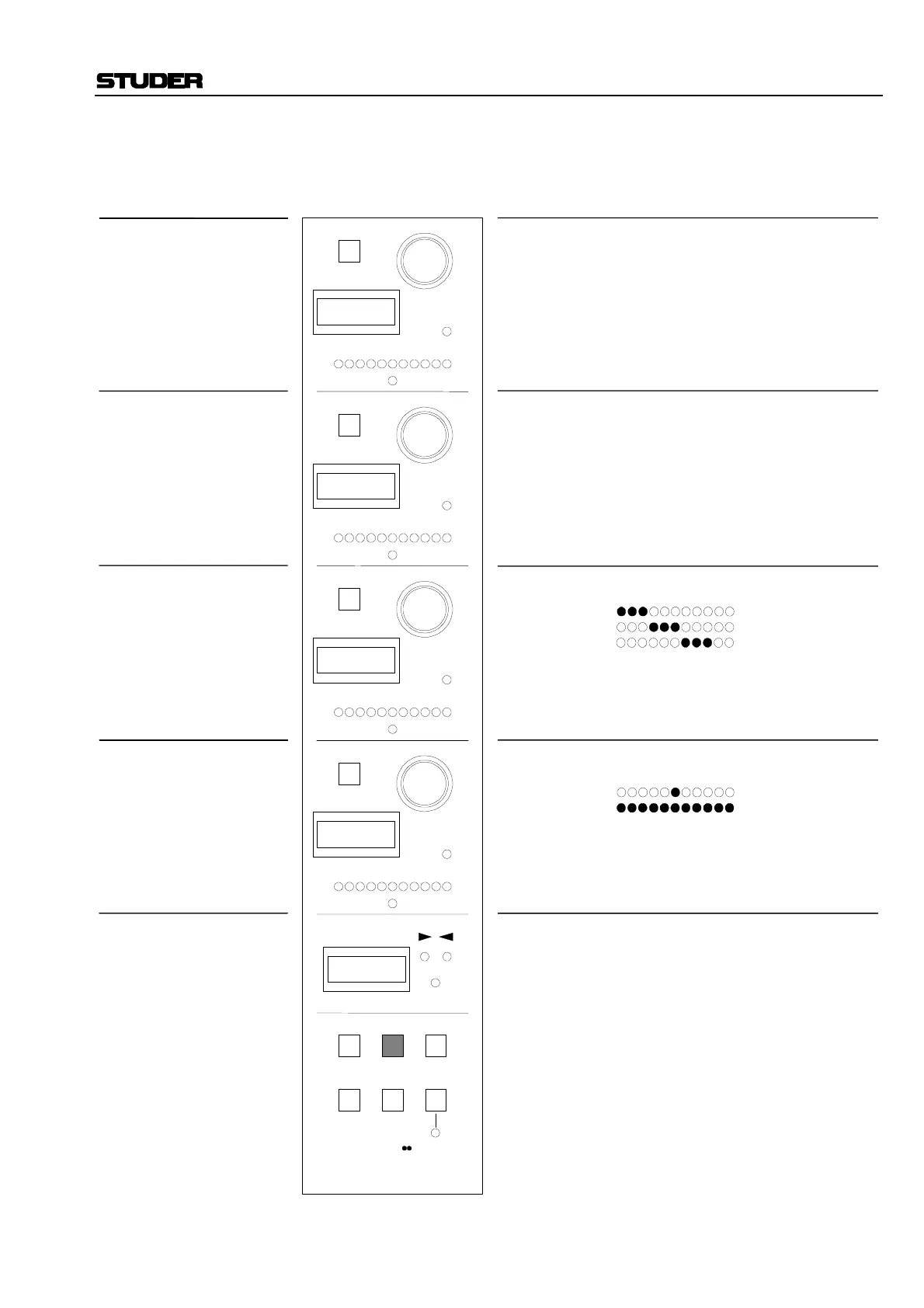

Available operating elements and their function
PMOD
MODS
DIVG
DIVM
PANA
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE
VSP pan control parameters
Display
=
Indication of VSP pan divergence
MODeS
(Page 4 not used)
DIVERGENCE CONTROL
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Center speaker ON/OFF
Divergence
control
1%
100%
no function
DIVG; label of control parameter
1%; minimum divergence
100%; maximum divergence
PAN MODE
DIVERGENCE MODE
PANAROUND
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Panaround function ON/OFF
Panaround position
Dot display
Front center position
PANA; label of control parameter
F0; front center position, FR29; front right position
R30; right position, BR1; back right position
B0; back center, BL29; back left position
L30; left position, FL1; front left position
