Studer D950 User Manual

D950 Digital Mixing System
3-106 Desk Operation SW V3.3 Date printed: 03.09.03
Example: Mono channel, VSP panning, page 3
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Absorption adjustment
bar display
no function
ABSN; label of control parameter
0%; min. absorption
100%; max. absorption
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
no function
Ambience adjustment
Bar display
no function
AMBI; label of control parameter
0%; min. ambience
100%; max. ambience
Available operating elements and their function
ROOM
DIST
AMBI
ABSN
SIZE
AUTO
SW
1
AUTO
SW
2
AUTO
SW
3
AUTO
SW
4
n–1
TALK
2
1
LAST MODE
4
3
PAGE
FREEZE

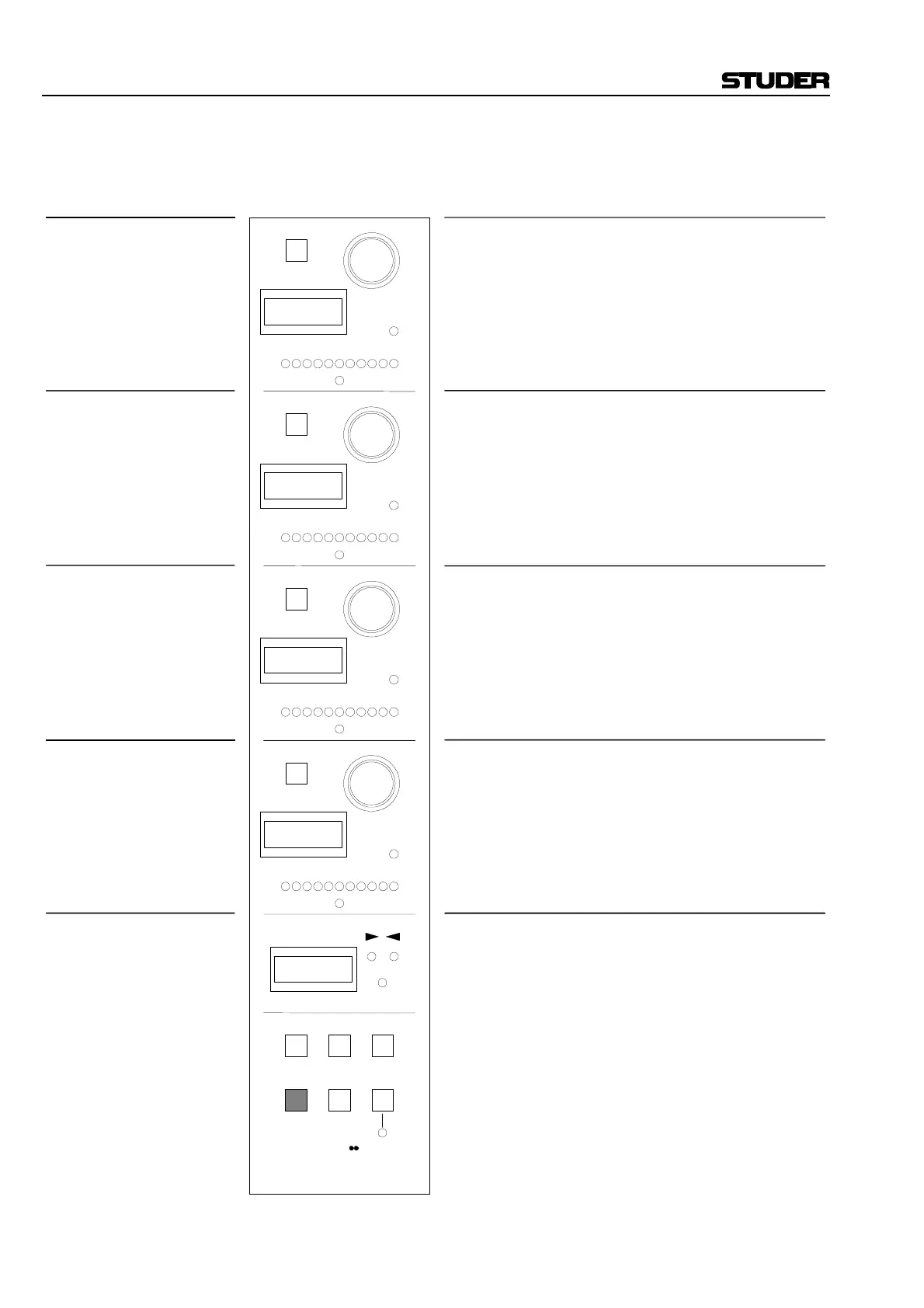

VSP pan control parameters
Display
=
Indication of various VSP room parameters
(Page 4 not used)
SOURCE DISTANCE
SW key
Rotary encoder
LED bar
Center LED
Display
no function
Distance adjustment
Bar display
no function
DIST; label of control parameter
0%; min. distance
100%; max. distance
ROOM ABSORPTION
ROOM AMBIENCE
ROOM SIZE
SW key
Rotary encoder
LED bar
Center LED
Display
=
=
=
=
=
Room parameters ON/OFF
Room size adjustment
Center spread display
no function
SIZE; label of control parameter
0; min. room size
31; max. room size
=
=
=
=
=
