Studer D950 User Manual

D950/Vista7 Digital Mixing System
5-58 AutoTouch+ SW V3.3 Date printed: 27.08.03

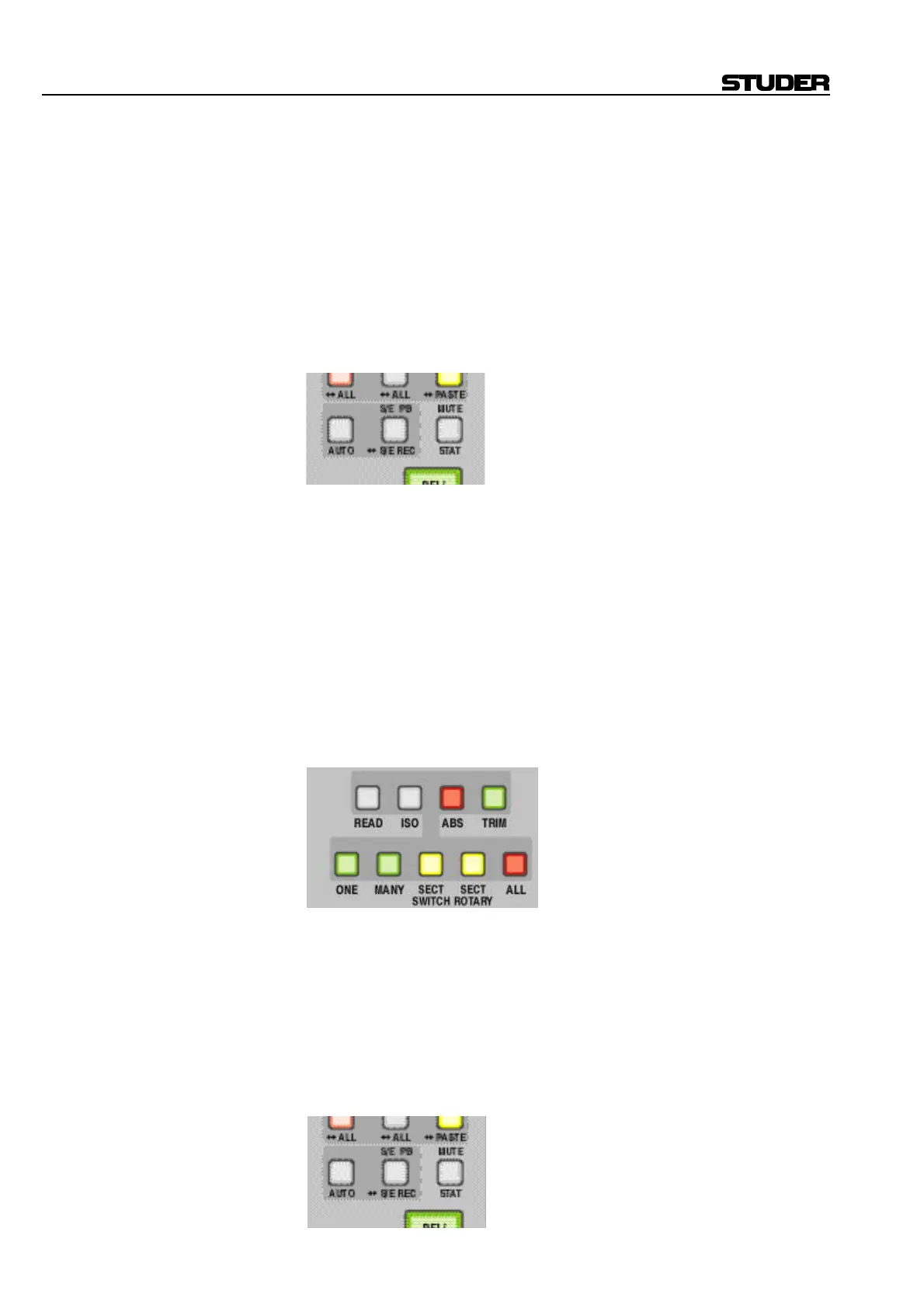

Switches: Channel Strip:
Control Modes for Switches are not shown in a unique fashion on the
channel strip. It is not possible to determine the exact status by viewing the
S/E STAT (S/E PB, S/E REC) key locally. There are also no Control Mode
indications for individual Switches. The unique status is shown on the
CAS. Switch Control Modes are indicated in the channel strip as follows:
• READ or ISOLATE: The S/E STAT key is not lit.
• WRITE or TRIM ENABLE: The S/E STAT key lights when one or more
Switch or Encoder is enabled.
• WRITE or TRIM RECORD: The S/E STAT key flashes when one or
more Switch or Encoder is in RECORD.
CAS:
The SECT SWITCH Pre-Selector key will light for all Encoder Control
Mode indications.
• READ: The Switches and Encoders READ Control Mode Activator is
lit.
• WRITE ENABLE: The Switches and Encoders ABS Control Mode Ac-
tivator is lit (SECT SWITCH Pre-Selector key flashes when in
RECORD).
• TRIM ENABLE: The Switches and Encoders TRIM Control Mode Acti-
vator is lit (SECT SWITCH Pre-Selector key flashes when in RECORD).
• ISOLATE: The Switches and Encoders ISO Control Mode Activator is
lit.
Channel Strip S/E STAT Key: The S/E STAT (S/E PB, S/E REC) key gives partial Control Mode indica-
tions for both Switches and Encoders
• S/E STAT key on: One or more Switch(es) or Encoder(s) is/are in either
WRITE ENABLE or TRIM ENABLE mode.
• S/E STAT key flashing: One or more Switch(es) or Encoder(s) is/are in
either WRITE ENABLE or TRIM ENABLE mode.
• S/E STAT key off: All Switches and Encoders are in either READ or
ISOLATE mode.
