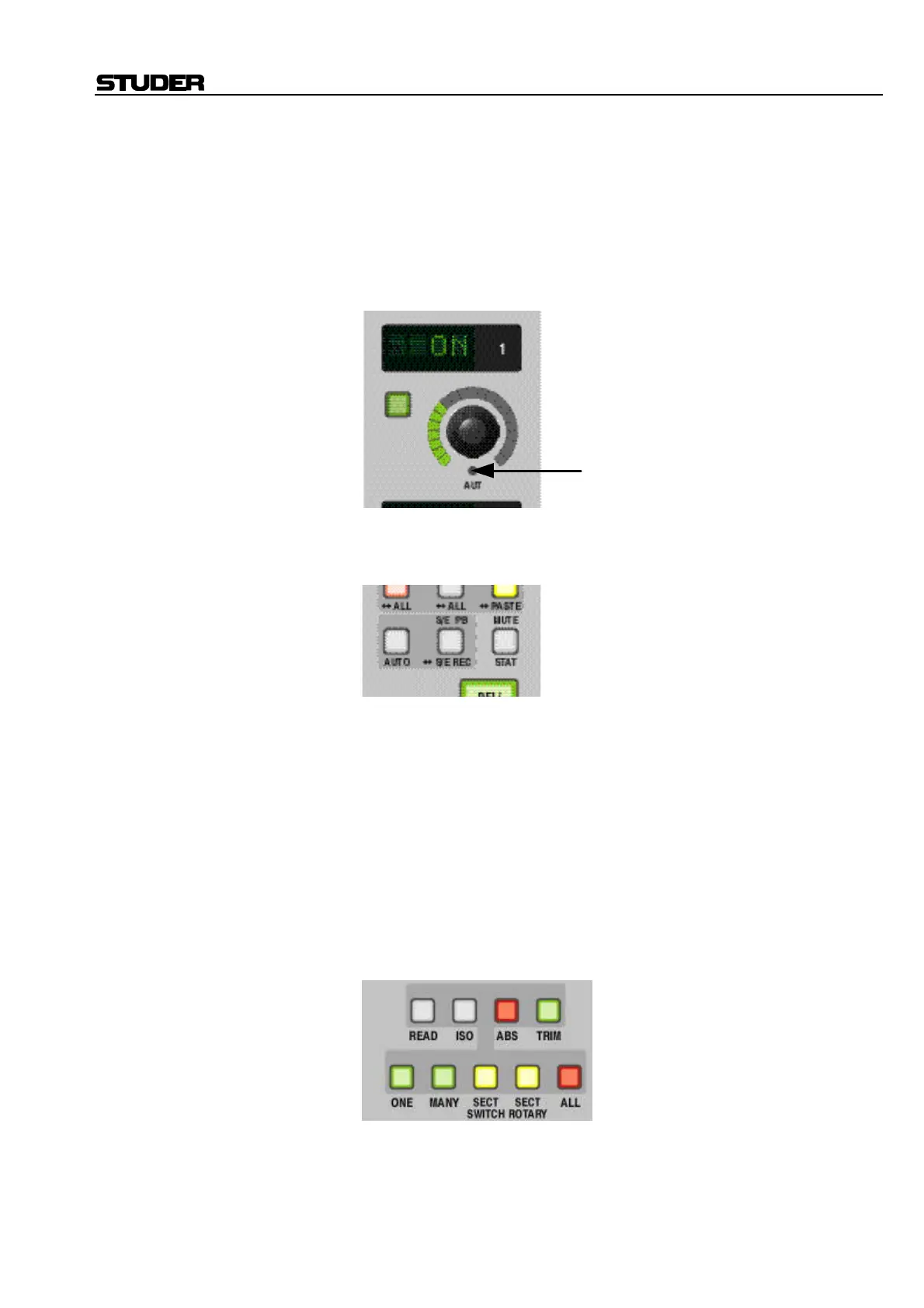

Encoders (Knobs): Channel Strip:
The Control Mode of each of the four Encoders on the channel strip is
indicated by the associate AUT LED.
• READ or ISOLATE: AUT LED is not lit. The S/E REC key is not lit.
• WRITE ENABLE: AUT LED is lit in red (flashes red when in
RECORD). The S/E REC key lights (flashes when in RECORD).
• TRIM ENABLE: AUT LED is lit in green (flashes green when in
RECORD). The S/E REC key lights (flashes when in RECORD).
(The graphic above is that of a channel strip, but the Control Mode indica-
tions of the AUT LED are the same as on the CAS.)
CAS:
The SECT ROTARY Pre-Selector key will light for all Encoder Control
Mode indications.
• READ: The Switches and Encoders READ Control Mode Activator is
lit.
• WRITE ENABLE: The Switches and Encoders ABS Control Mode Ac-
tivator is lit (SECT ROTARY Pre-Selector key flashes when in
RECORD).
• TRIM ENABLE: The Switches and Encoders TRIM Control Mode Acti-
vator is lit (SECT ROTARY Pre-Selector key flashes when in RECORD).
• ISOLATE: The Switches and Encoders ISO Control Mode Activator is
lit.
Off = Read or Isolate
Constant Red = Absolute Enable
Flashing Red = Absolute Record
Constant Green = Trim Enable
Flashing Green = Trim Record
