Studer D950 User Manual

D950 Digital Mixing System
Date printed: 03.09.03 SW V3.3 Getting started 2-25

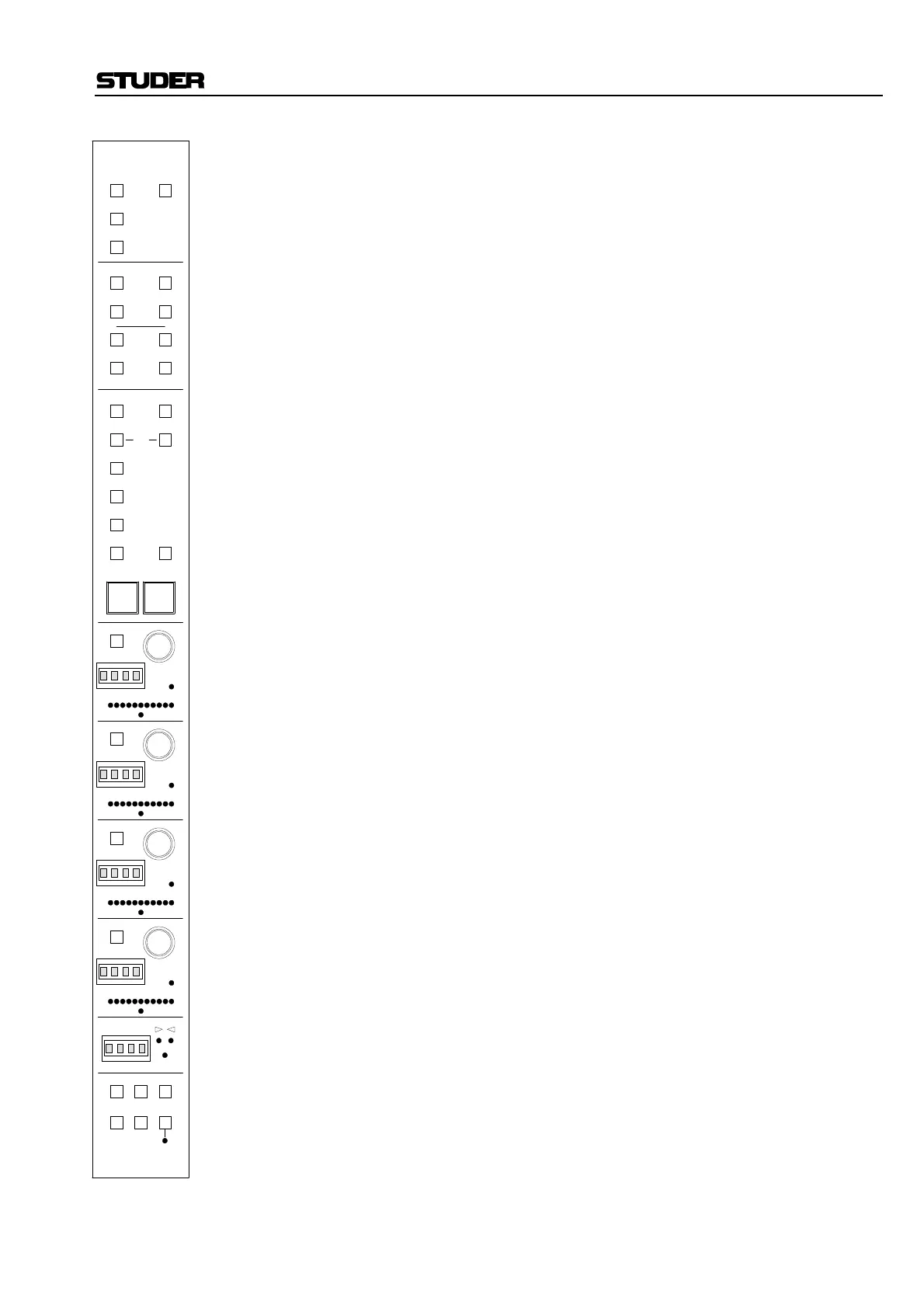

DIR OUT ON
This is an ON/OFF function for the channel’s Direct Output. For all
MASTER and AUX MASTER channels it is automatically turned on and
cannot be disabled.
This key also allows selection/de-selection of the channel’s direct output
when using the copy and clear parameter facilities.
AUX MONO 1...4 ON
These four keys provide direct ON/OFF control of Mono AUX sends 1
through 4. Since there can be more than four Mono AUX sends, these keys
control only the first four Mono AUX sends. Mono AUX sends 5 and
above can be turned on and off using the Central Assign Unit (CAU).
AUX STEREO 1...4 ON
These four keys provide direct ON/OFF control of Stereo AUX sends 1
through 4. Since there can be more than four Stereo AUX sends, these
keys control only the first four Stereo AUX sends. Stereo AUX sends 5
and above can be turned on and off using the Central Assign Unit (CAU).
EQ
This is an ON/OFF control for the four-band Equalizer.
FILT
This is an ON/OFF control for the High-pass/Low-pass Filter.
COMP/LIM
This is an ON/OFF control for the Compressor/Limiter functions.
EXP/GATE
This is an ON/OFF control for the Expander/Gate functions.
INS
This is an ON/OFF control for the Insert Return signal.
DLY
This is an ON/OFF control for the variable Delay function.
OPT
This is a control reserved for future functions.
PAN
This is an ON/OFF control for the channel Panning/Direction function.
ASN SEL
Activation of the Assign Selection function enables a set of functions to be
assigned to the Local Assignable Control Panel (LACP). For example,
pressing the ASN SEL key followed by the EQ key assigns the EQ pa-
rameters to the LACP soft controls (encoders and switches). However,
unless the EQ has already been turned ON, it will not be active and the EQ
key will not illuminate. A subsequent press of the EQ key will engage the
EQ and it’s key will light.
PAN
OPT
DLY
INS
CMP/
LIM
EQ
3
ON
1
ON
3
ON
1
ON
4
ON
2
ON
4
ON
2
ON
AUX
MONO
GEN
IN 2
IN 1
INPUT DIR OUT
ON
Input
Busses
Meters
Out
PROCESSING
FILT
EXP/
GTE
DYN
ASN
SEL
Processing
USER
1
USER
2
AUX
STEREO
SW
AUTO
1
SW
AUTO
2
SW
AUTO
3
SW
AUTO
4
n–1
TALK21
LAST MODE43
PAGE
•• FREEZE
