Managing Physical Interfaces Port Mirror Configuration
Configuration Guide
83

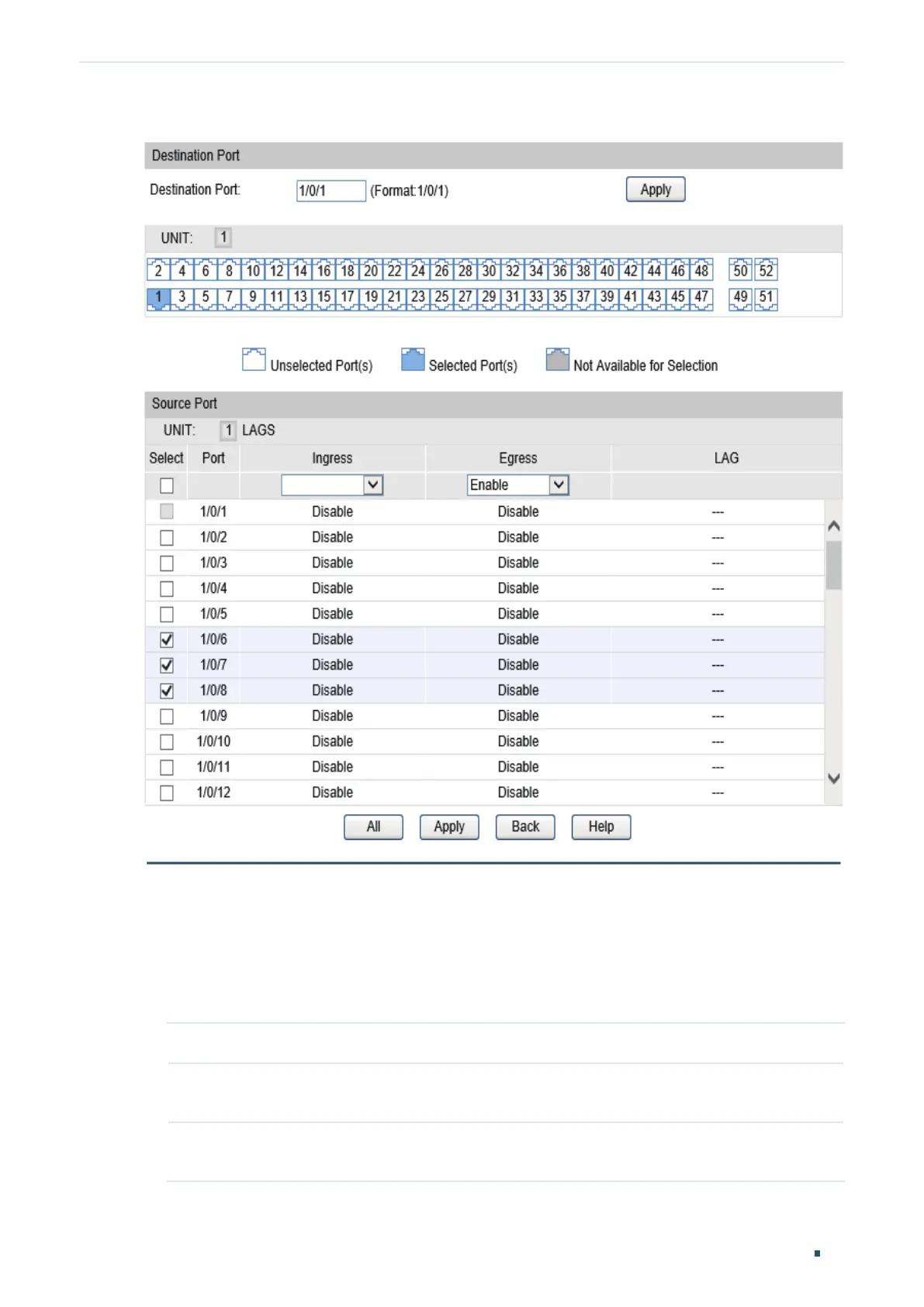

Figure 3-2 Configuring Port Mirror
Follow these steps to configure Port Mirror:
1) In the Destination Port section, specify a monitoring port for the mirror session, and
click Apply.
2) In the Source Port section, select one or multiple monitored ports for configuration.
Then set the parameters and click Apply.
UNIT:1/LAGS Click 1 to select physical ports. Click LAGS to select LAGs.
Ingress With this option enabled, the packets received by the monitored port will be
copied to the monitoring port. By default, it is disabled.
Egress With this option enabled, the packets sent by the monitored port will be copied to
the monitoring port. By default, it is disabled.
