Configuration Guide 194
Configuring Protocol VLAN Configuration Example

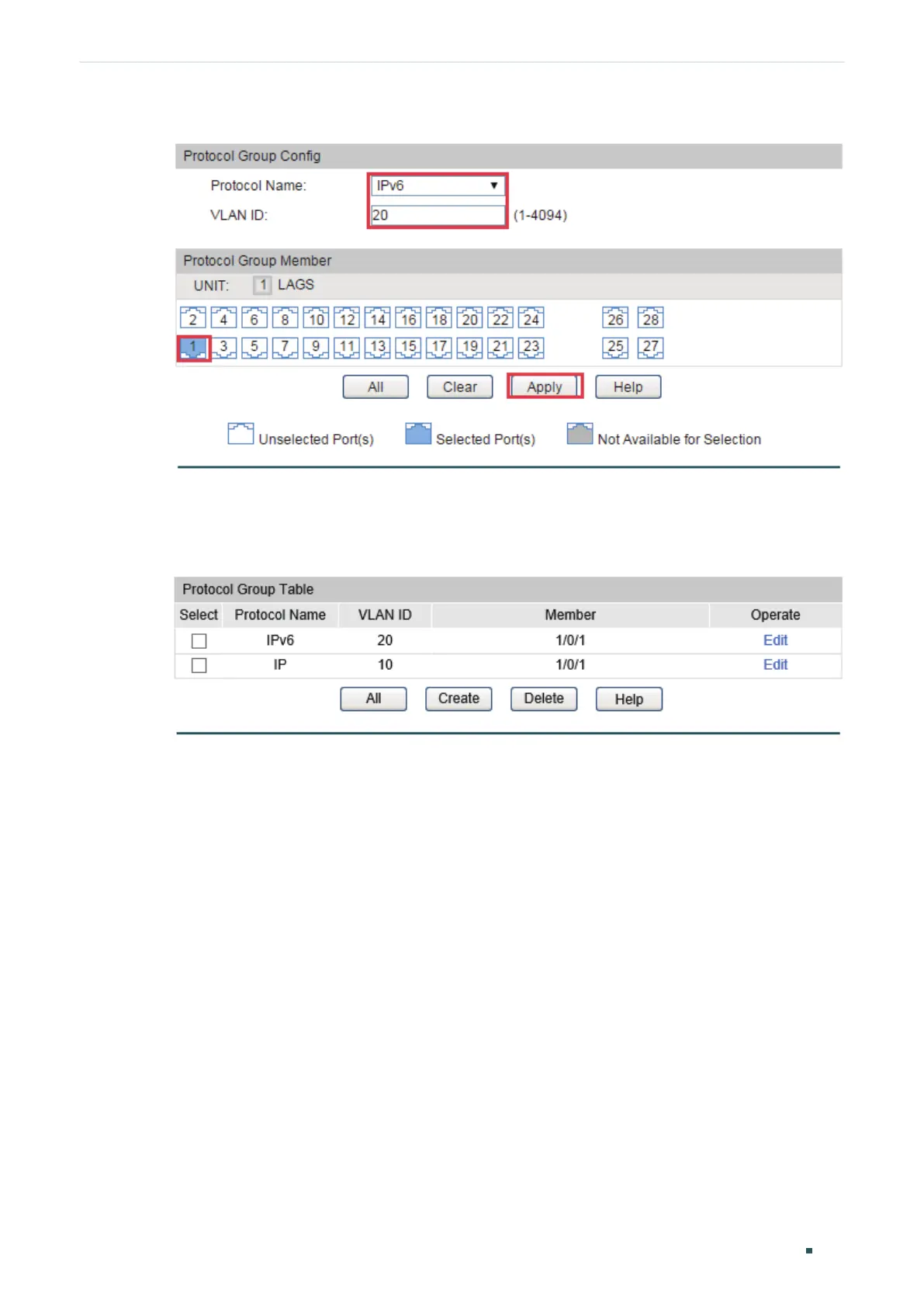

Figure 3-8 Configure the IPv6 Protocol Group
5) Choose the menu VLAN > Protocol VLAN > Protocol Group Table to load the following
page. Here you can view the protocol VLAN configuration.
Figure 3-9 Protocol VLAN configuration
6) Click Save Config to save the settings.
3.4 Using the CLI

Configurations for Switch 1
1) Create VLAN 10 and VLAN 20.
Switch_1#configure
Switch_1(config)#vlan 10
Switch_1(config-vlan)#name IPv4
Switch_1(config-vlan)#exit
Switch_1(config)#vlan 20
Switch_1(config-vlan)#name IPv6
Switch_1(config-vlan)#exit
