Configuring Layer 2 Multicast Configuration Examples

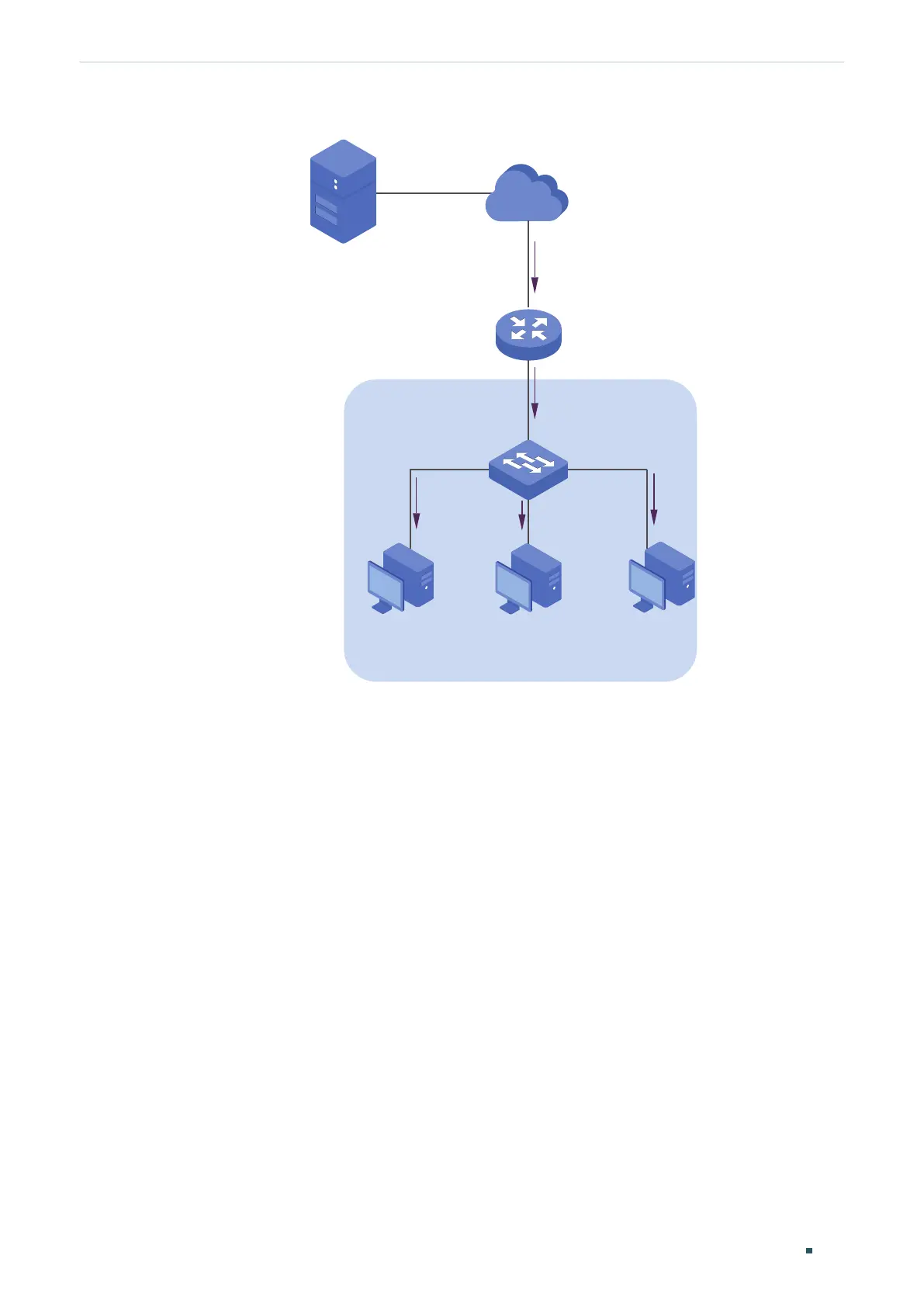

Figure 5-7 Network Topoloy for Multicast VLAN
Internet
Host B
Receiver
Host C
Receiver
Host D
Receiver
VLAN 40
Querier
Source
Gi1/0/4
Gi1/0/2
Gi1/0/3
Gi1/0/1
Demonstrated with T1600G-52TS, this section provides configuration procedures in two
ways: using the GUI and using the CLI.
5.2.4 Using the GUI
1) Choose the menu Multicast > IGMP Snooping > Snooping Config to load the following
page. Enable IGMP Snooping globally, and keep the default values in the Router Port
Time and Member Port Time fields.
