Configuring ACL Configuration Example for ACL

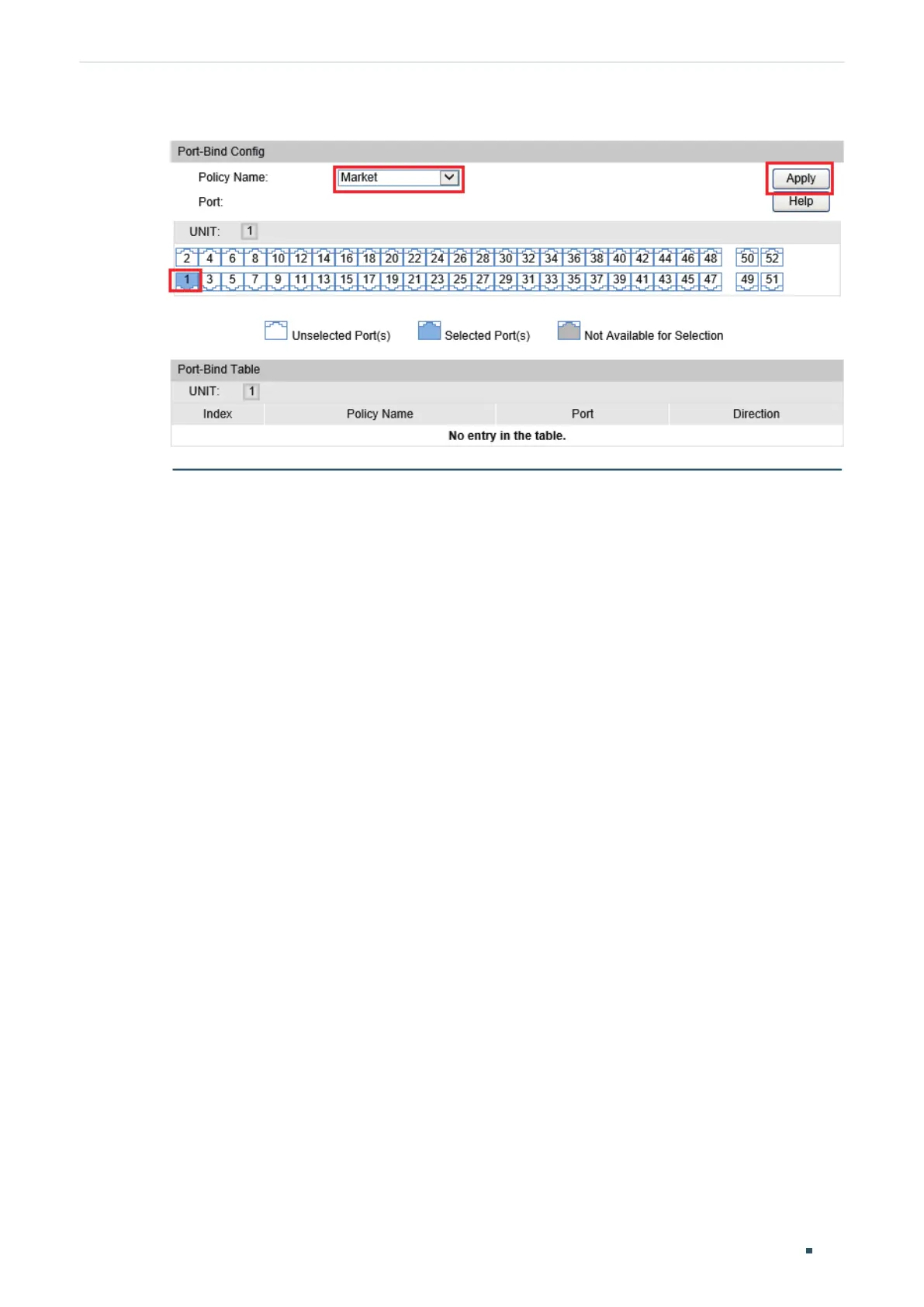

Figure 3-11 Binding the Policy to Port 1/0/1
9) Click Save Config to save the settings.
3.5 Using the CLI
1) Create Extended-IP ACL 1600.
Switch#configure
Switch(config)#access-list create 1600
2) Configure rule 1 to permit packets with source IP 10.10.70.0 and destination IP
10.10.80.0.
Switch(config)#access-list extended 1600 rule 1 permit sip 10.10.70.0 smask
255.255.255.0 dip 10.10.80.0 dmask 255.255.255.0
3) Configure Rule 2 and Rule 3 to permit packets with source IP 10.10.70.0, and destination
port TCP 80 (http service port) or TCP 443 (HTTPS service port).
Switch(config)#access-list extended 1600 rule 2 permit sip 10.10.70.0 smask
255.255.255.0 protocol 6 d-port 80
Switch(config)#access-list extended 1600 rule 3 permit sip 10.10.70.0 smask
255.255.255.0 protocol 6 d-port 443
4) Configure Rule 4 and Rule 5 to permit packets with source IP 10.10.70.0, and destination
port TCP53 or UDP 53.
Switch(config)#access-list extended 1600 rule 4 permit sip 10.10.70.0 smask
255.255.255.0 protocol 6 d-port 53
Switch(config)#access-list extended 1600 rule 5 permit sip 10.10.70.0 smask
255.255.255.0 protocol 17 d-port 53
5) Configure Rule 6 to deny packets with source IP 10.10.70.0.
