TP-Link T1600G-52PS User Manual

Configuration Guide 480
Configuring Voice VLAN Configuration Example

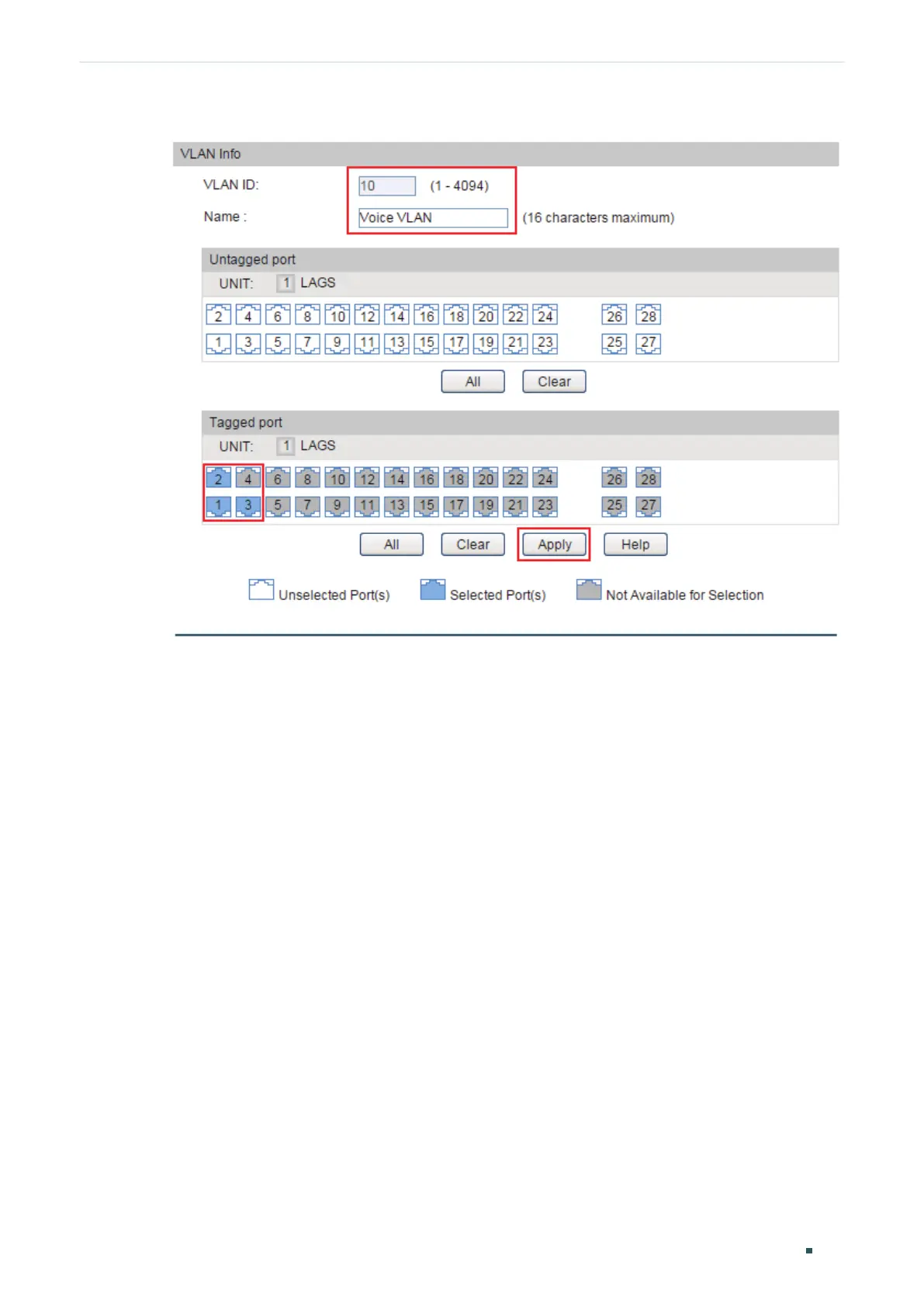

Figure 3-15 Creating a VLAN and Adding Ports to the VLAN
2) Click Save Config to save the settings.
3.5 Using the CLI

Configurations for Switch A
1) Create VLAN 10.
Switch_A#configure
Switch_A(config)#vlan 10
Switch_A(config-vlan)#name VoiceVLAN
Switch_A(config-vlan)#exit
2) Configure the aging time as 1440 minutes for port in automatic voice VLAN mode, and
set the 802.1p priority of voice packets as 6. Set VLAN 10 as the voice VLAN.
Switch_A(config)#voice vlan aging 1440
Switch_A(config)#voice vlan priority 6
Switch_A(config)#voice vlan 10
3) Configure port 1/0/1 to automatic voice VLAN mode and enable security mode.
Switch_A(config)#interface gigabitEthernet 1/0/1
