Configuring QoS DiffServ Configuration
Configuration Guide
439
Choose the menu QoS > DiffServ > Port Priority to load the following page.

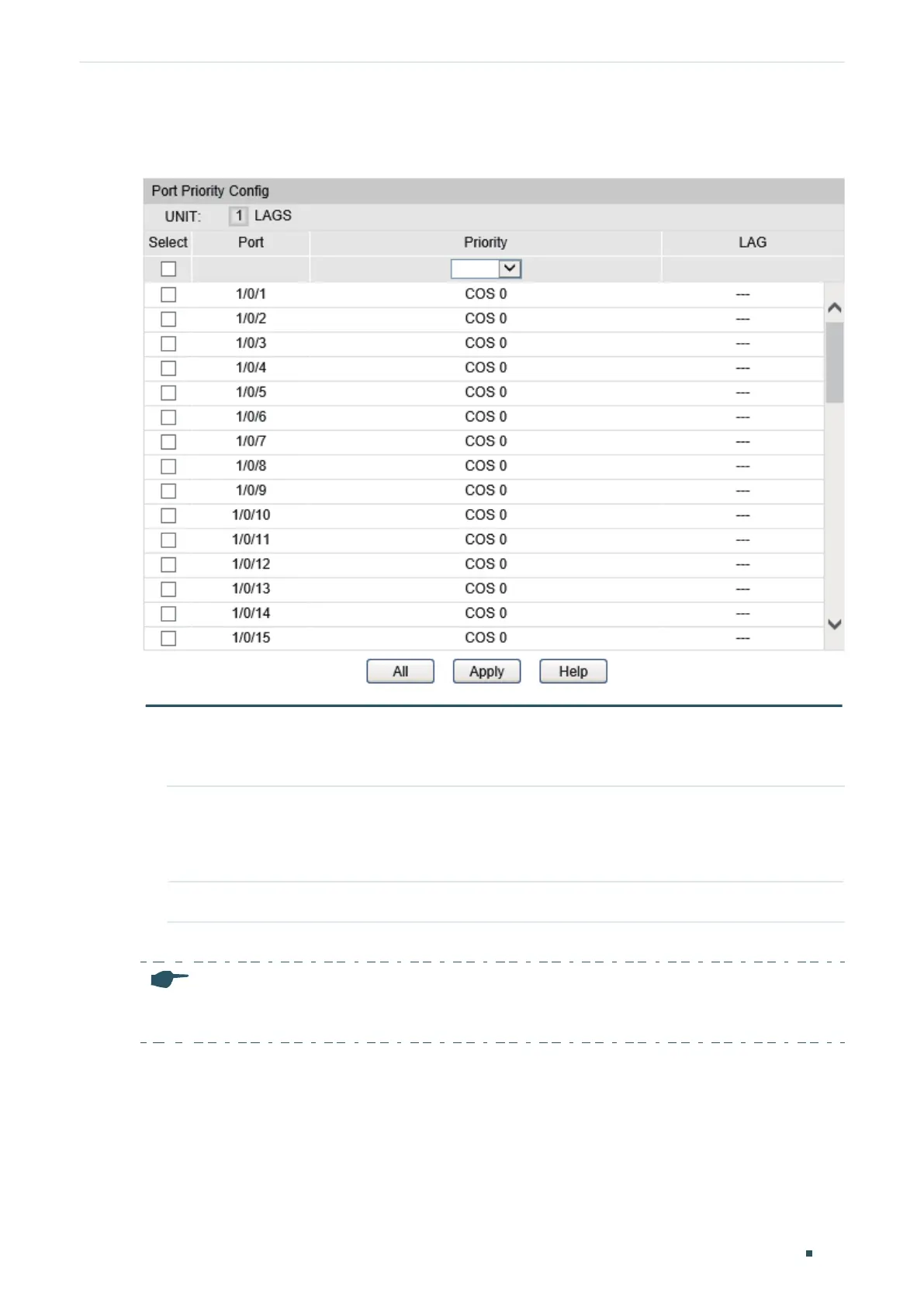

Figure 2-3 Port Priority
Follow these steps to configure the port priority:
1) Select the desired port or LAG to set its priority.
Priority Specify the CoS that the port will be mapped to.
The packets are firstly mapped to CoS, then to TC queues according to the CoS-
id-TC mapping relations.
LAG Displays the aggregation group which the port is in.
2) Click Apply.
Note:
All the ports in the same LAG should be assigned with the same port priority.
2.1.2 Configuring Schedule Mode
Configure the schedule mode to control the forwarding sequence of different TC queues
when congestion occurs.
Choose the menu QoS > DiffServ > Schedule Mode to load the following page.
