Configuration Guide 274
Configuring Layer 2 Multicast IGMP Snooping Configurations
Choose the menu Multicast > IGMP Snooping > Multicast VLAN to load the following
page.

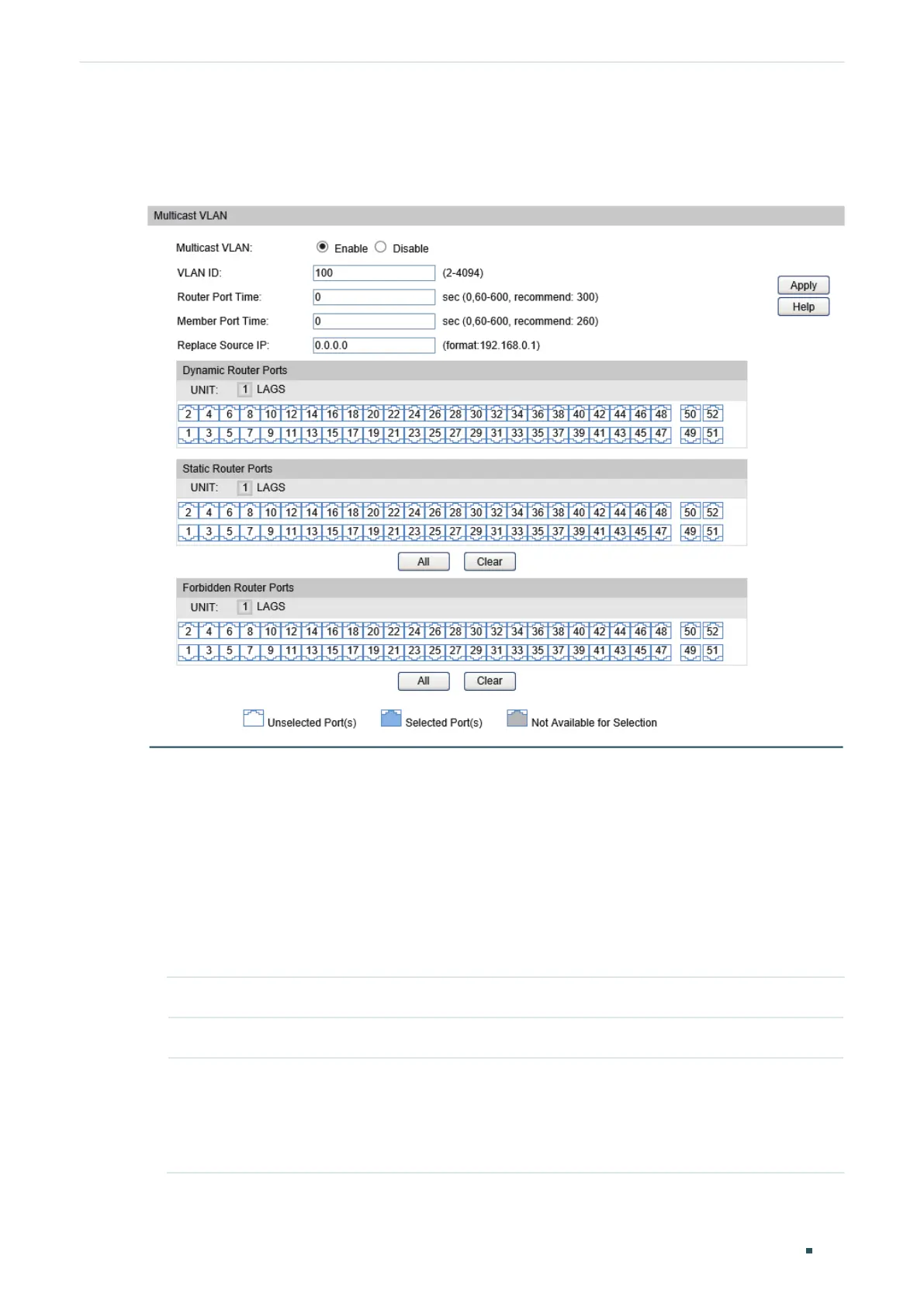

Figure 2-4 Multicast VLAN Config
Creating Multicast VLAN and Configuring Basic Settings
In the Multicast VLAN section, follow these steps to enable Multicast VLAN and to finish the
basic settings:
1) Set up the VLAN that the router ports and the member ports are in. For details, please
refer to
Configuring 802.1Q VLAN
.
2) Enable Multicast VLAN, configure the specific VLAN to be the multicast VLAN, and
configure the Router Port Time and Member Port Time.
Multicast VLAN Select Enable to enable multicast VLAN function.
VLAN ID Specify the 802.1Q VLAN to be the multicast VLAN.
Router Port
Time
Specify the aging time of the router ports in the multicast VLAN. If the router port
does not receive any IGMP general query message within the router port time,
the switch will no longer consider this port as a router port and delete it from the
router port table. The valid values are from 60 to 600 seconds. When the router
port time is 0, the VLAN uses the global time.
