Configuration Guide 512
Configuring ACL ACL Configurations
Choose the menu ACL > ACL Config > ACL Create to load the following page.

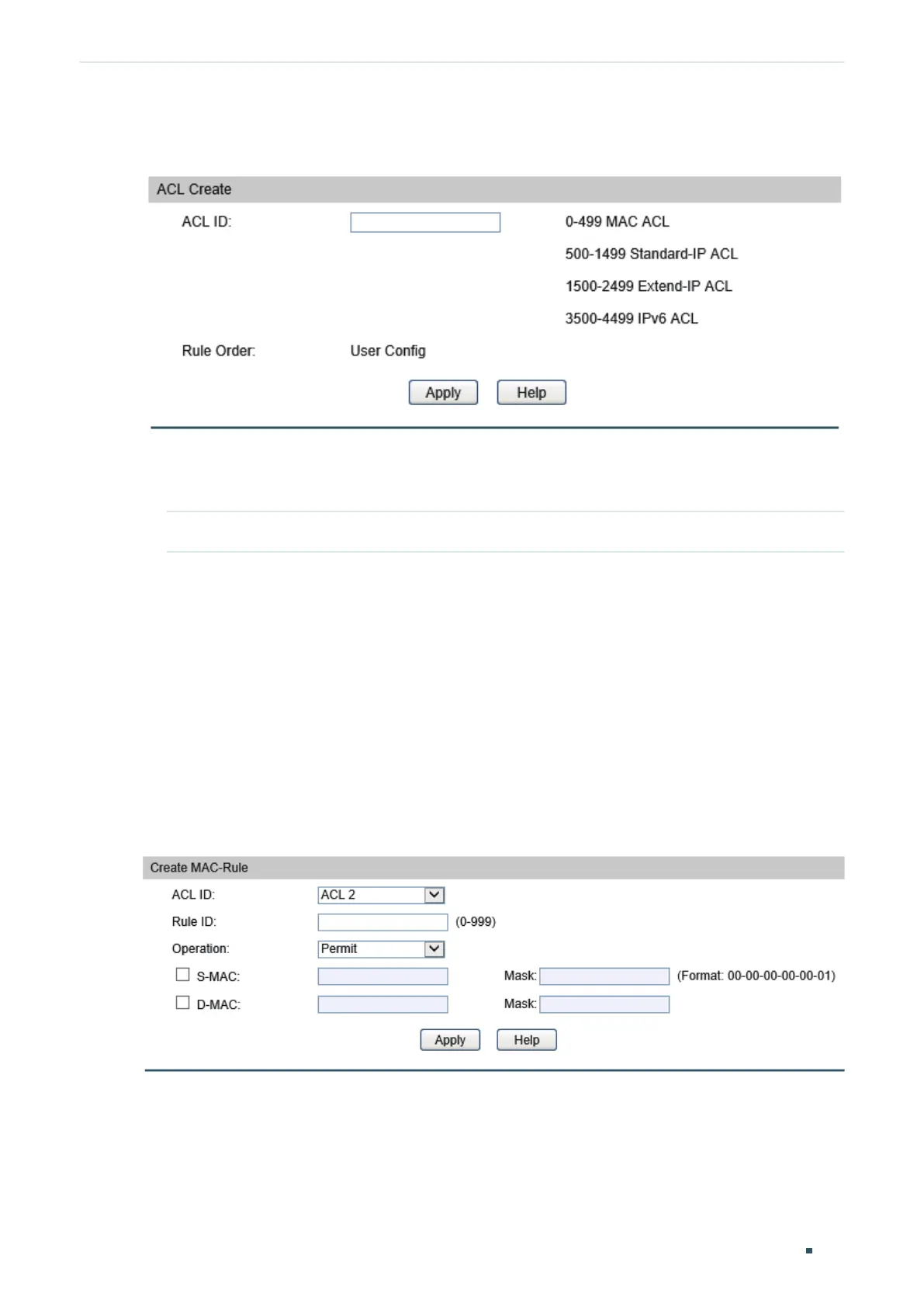

Figure 2-1 Creating an ACL
Follow these steps to create an ACL:
1) Enter a number to identify the ACL.
ACL ID Enter a number to identify the ACL.
2) Click Apply
.
2.1.2 Configuring ACL Rules
Add rules to the ACL. For details, refer to
“Configuring the MAC ACL Rule”
,
“Configuring the
Standard-IP ACL Rule”
,
“Configuring the Extend-IP ACL Rule”
, and
“Configuring the IPv6
ACL Rule”
.
Configuring the MAC ACL Rule
Choose the menu ACL > ACL Config > MAC ACL to load the following page.
Figure 2-2 Creating the MAC ACL Rule
Follow these steps to create the MAC ACL rule:
1) Select an MAC ACL from the drop-down list, enter a Rule ID, and specify the operation
for the matched packets.
