Configuring Protocol VLAN Configuration Example
Configuration Guide
189
1) Create VLAN 10 and VLAN 20, set the port type, and add each port to the
corresponding VLAN.
2) Use the IPv4 protocol template provided by the switch, and create the IPv6 protocol
template.
3) Bind the protocol templates to the corresponding VLANs to form protocol groups, and
add port 1/0/1 to the groups.
For Switch 1, configure 802.1Q VLAN according to the network topology.
Demonstrated with T1600G-28TS, this chapter provides configuration procedures in two
ways: using the GUI and using the CLI.
3.3 Using the GUI

Configurations for Switch 1

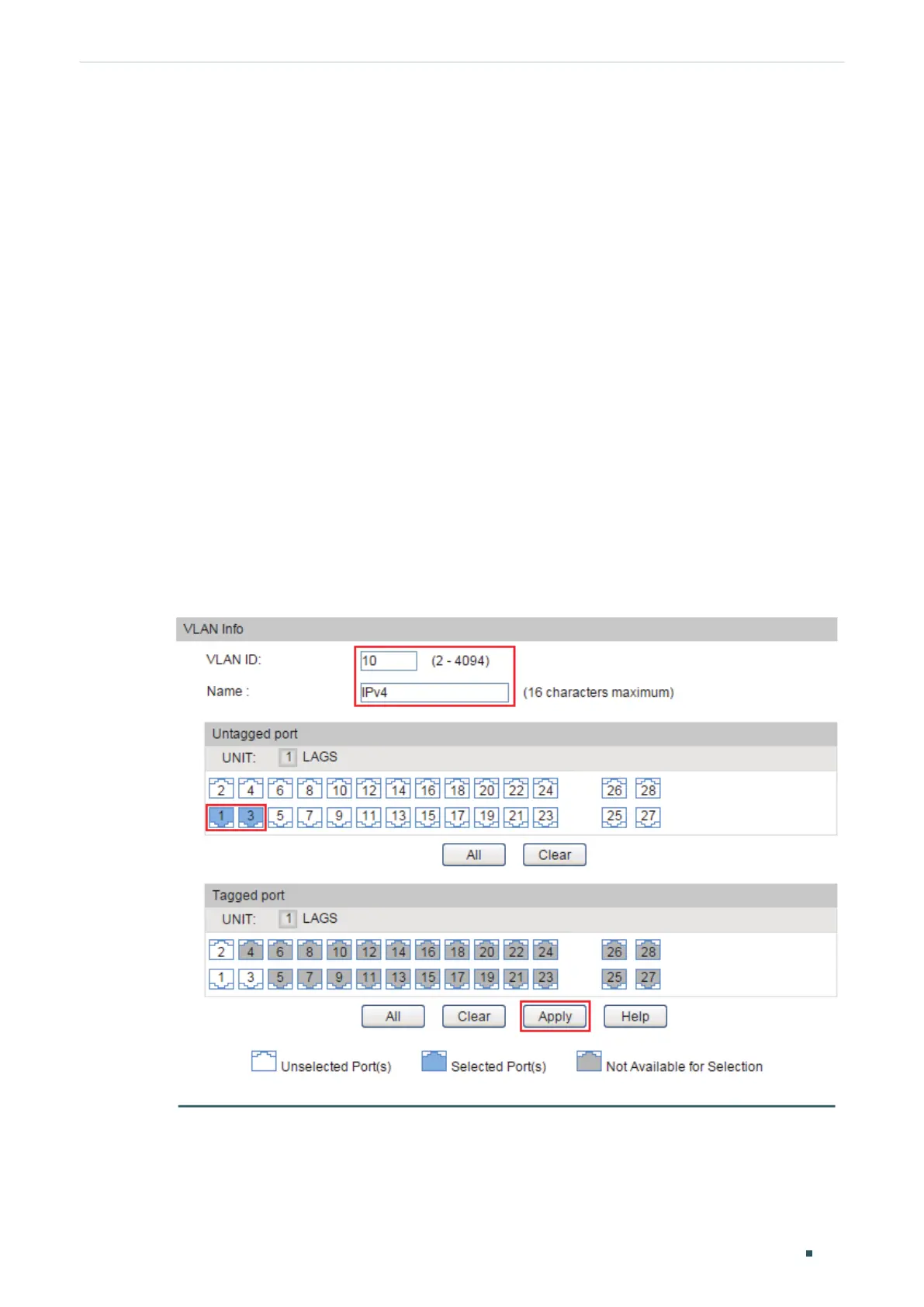

1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10, and add port 1/0/1 and port 1/0/3 as untagged ports to
VLAN 10. Click Apply.
Figure 3-2  Create VLAN 10
