TP-Link T1600G-52PS User Manual

Configuring QoS Configuration Example
Configuration Guide
457
3) Choose QoS > DiffServ > Schedule Mode to load the following page, and select SP-
Mode as the schedule mode. Click Apply.

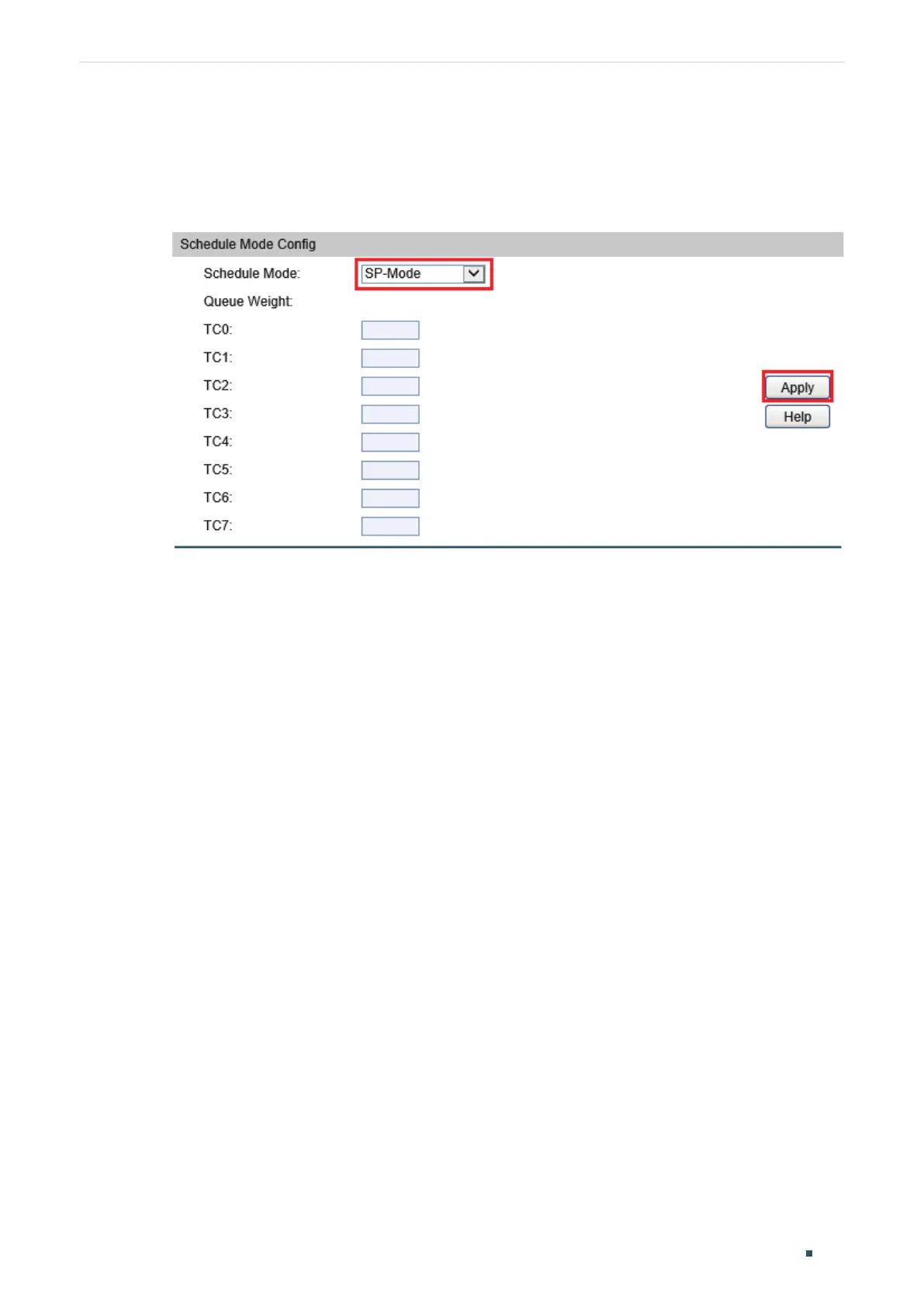

Figure 4-4 Configure Schedule Mode
4) Click Save Config to save the settings.
4.4 Using the CLI
1) Check the corresponding CoS-id of TC0 and TC1.
Switch#show qos cos-map
-----+-----+-----+----+-----+-----+-----+----+----
Tag |0 |1 |2 |3 |4 |5 |6 |7
-----+-----+-----+----+-----+-----+-----+----+----
TC |TC1 |TC0 |TC2 |TC3 |TC4 |TC5 |TC6 |TC7
-----+-----+-----+----+-----+-----+-----+----+----
2) Set the priority for port 1/0/1 to CoS 0(mapping to TC1) and priority for port 1/0/2 to
CoS 1(mapping to TC0).
Switch#configure
Switch(config)#interface gigabitEthernet 1/0/1
Switch(config-if)#qos 0
Switch(config-if)#exit
Switch(config)#interface gigabitEthernet 1/0/2
Switch(config-if)#qos 1
