Configuration Guide 504
Configuring PoE Example for PoE Configurations
4
Example for PoE Configurations
4.1 Network Requirements
The network topology of a company is shown below. Camera1 and Camera2 work for the
security of the company and cannot be power off all the time. AP1 and AP2 provide Internet
service and only work in the daytime.

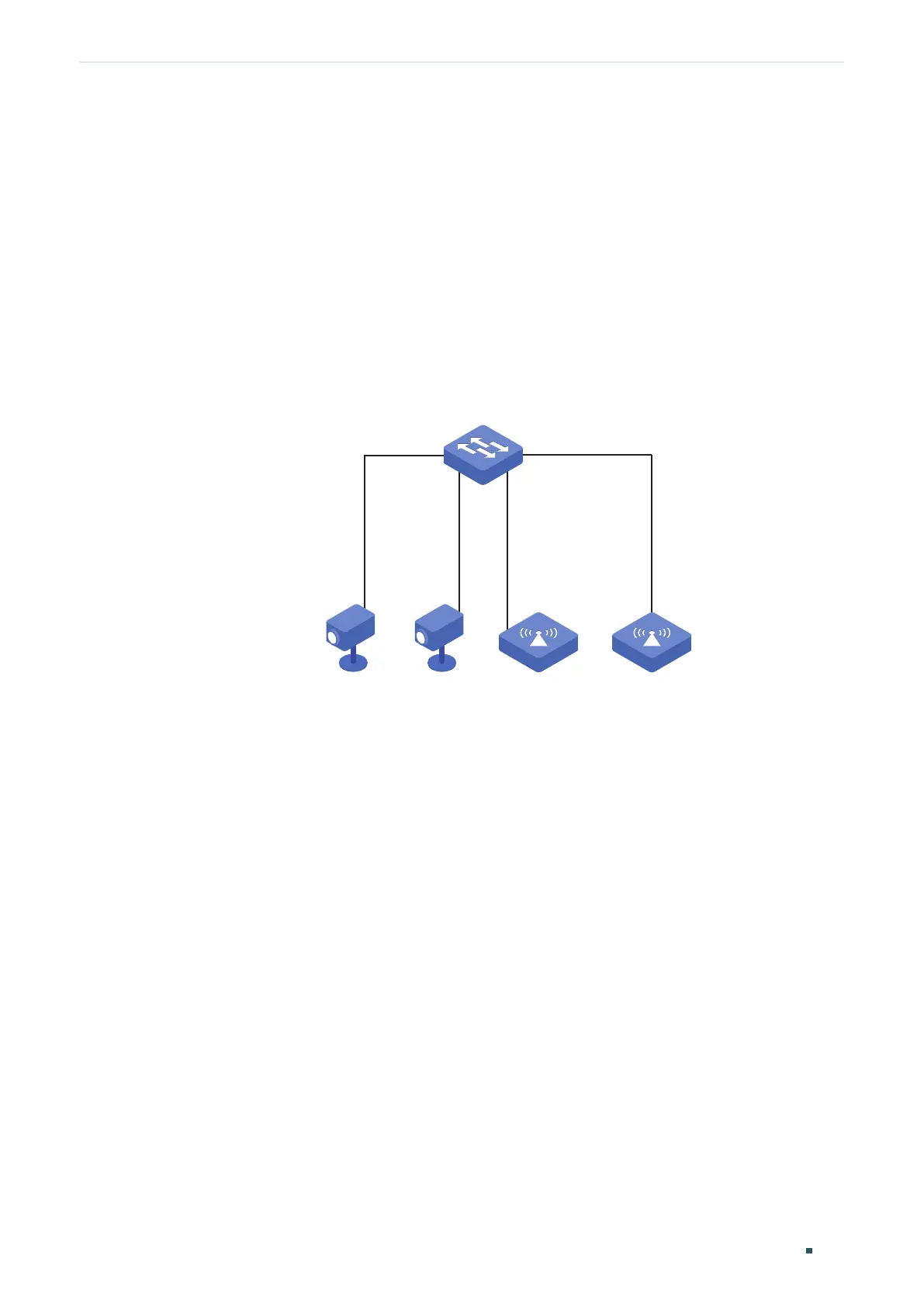

Figure 4-1 Network Topology
Gi1/0/1
Gi1/0/2 Gi1/0/3
Gi1/0/4
Camera1 Camera2 AP1 AP2
Switch A
4.2 Configuring Scheme
To implement this requirement, you can set a PoE time-range as the office time for
example from 08:30 to 18:00. You can also set a holiday and make the time-range settings
not be affected on holiday. Then apply the settings to port 1/0/3 and 1/0/4. Port 1/0/1 and
1/0/2 need to supply power all the time, so the time range configurations can be left at the
default settings here.
4.3 Using the GUI
The configurations of Port1/0/4 is similar with the configuration of port 1/0/3. Here we take
port 1/0/3 for example.
1) Choose the menu PoE > Time-Range > Time-Range Create to load the following page.
Specify a name for the time-range and select Exclude to make the time-range settings
not be affected on holiday. Set the time-range as periodic mode and add a time range
that is from 08:30 to 18:00. Click Apply.
