Configuration Guide 644

Configuring LLDP Viewing LLDP Settings

Viewing LLDP Settings

This chapter introduces how to view the LLDP settings on the local device.

4.1 Using GUI

4.1.1 Viewing LLDP Device Info



Viewing the Local Info

Choose the menu LLDP > Device Info > Local Info to load the following page.

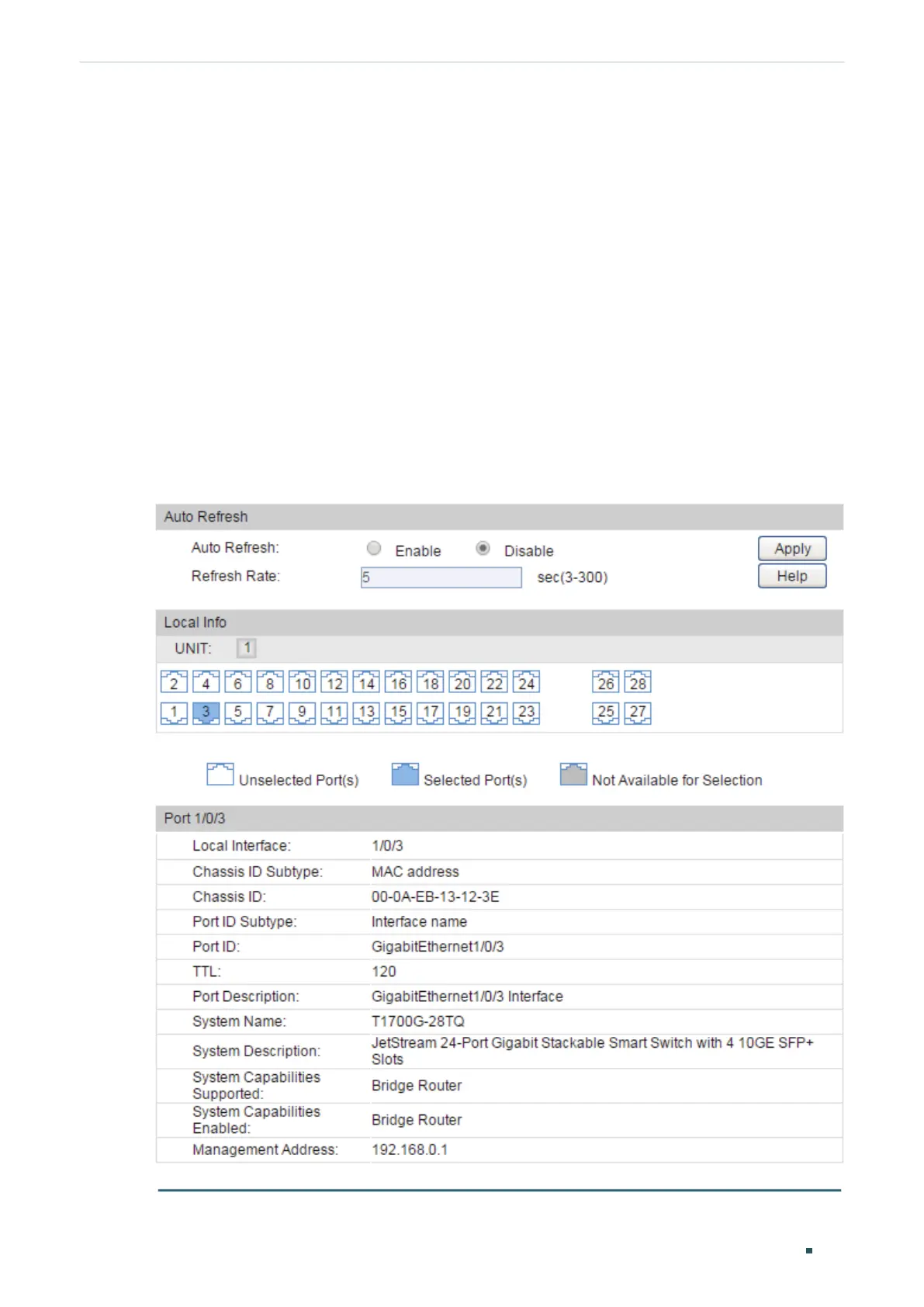

Figure 4-1 Local Info
