Configuration Guide 660
Configuring LLDP Configuration Example
6.2.4 Using the GUI

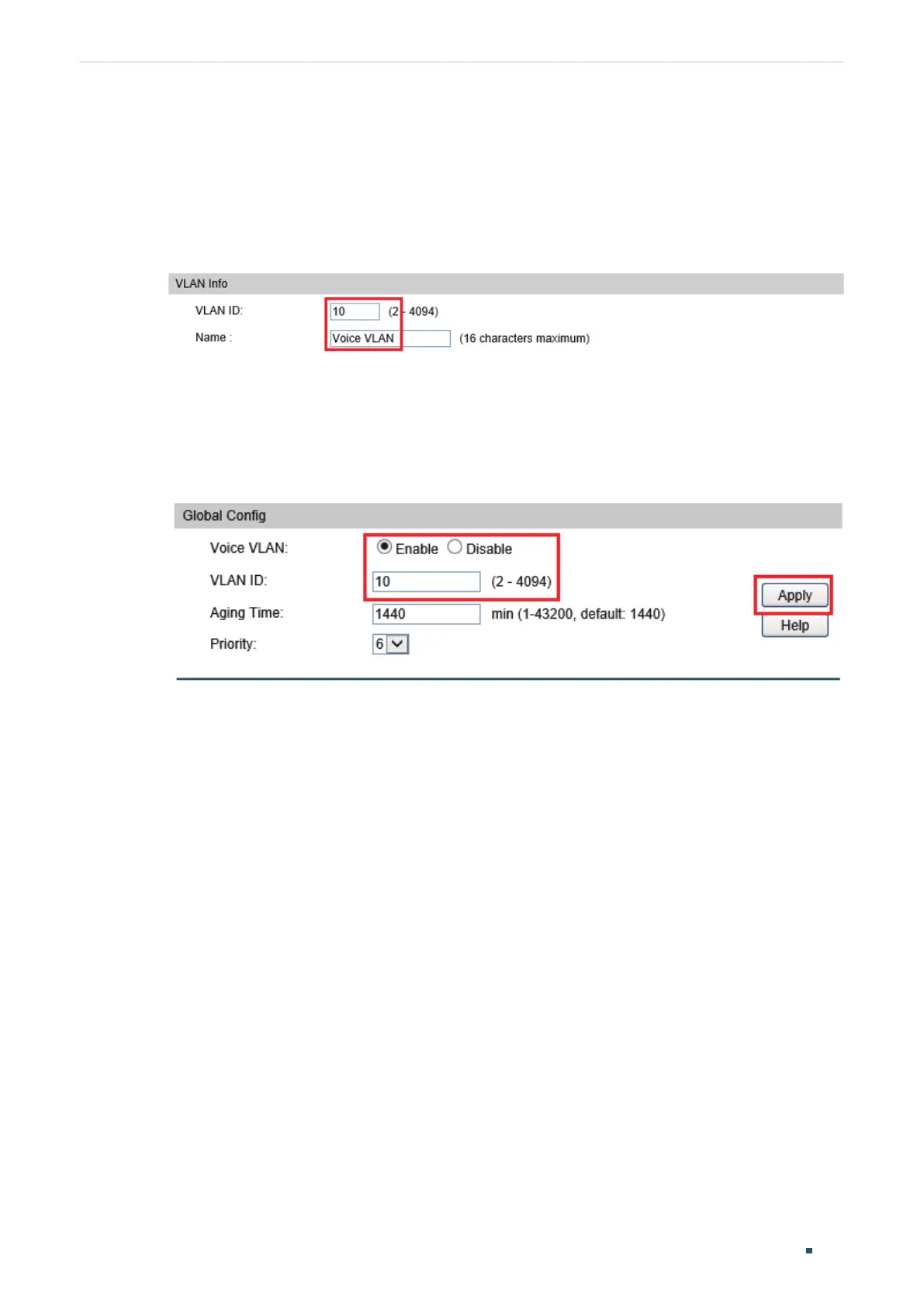

1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config to load the following page.
Create VLAN 10, and name it as Voice VLAN.
Figure 6-5 Creating a VLAN
2) Enable and configure the Voice VLAN.
Choose the menu QoS > Voice VLAN > Global Config, enable Voice VLAN and set the
VLAN ID to 10.
Figure 6-6 Configuring Voice VLAN Globally
Choose the menu QoS > Voice VLAN > Port Config, set the Voice VLAN mode on
Gi1/0/1 and Gi1/0/2 as Auto and Manual respectively.
