Configuring Protocol VLAN Protocol VLAN Configuration
2.1.3 Configuring Protocol VLAN
Choose the menu VLAN > Protocol VLAN > Protocol Group to load the following page.

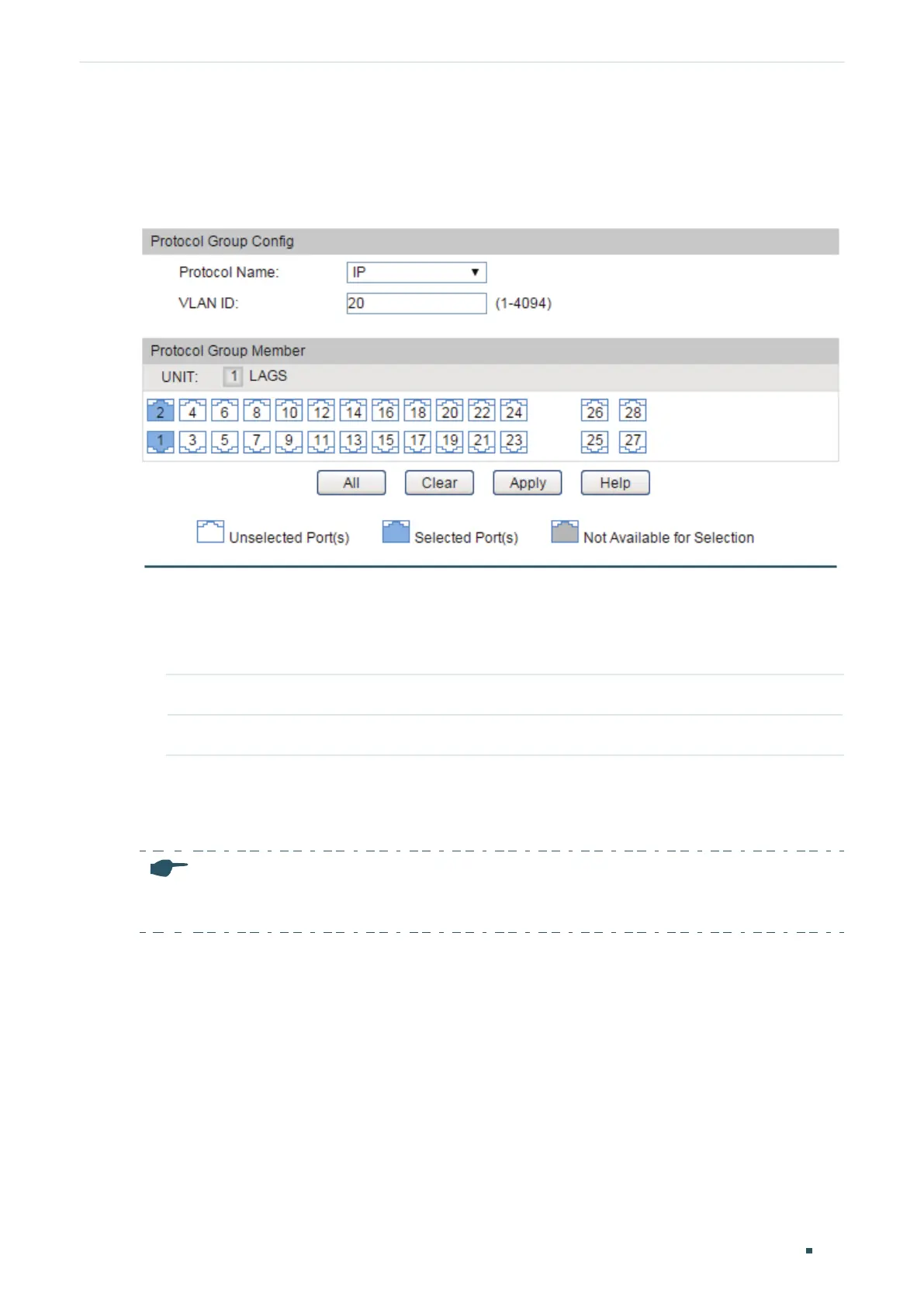

Figure 2-2 Configure the Protocol Group
Follow these steps to configure the protocol group:
1) In the Protocol Group Config section, select the protocol name and enter the VLAN ID
to bind the protocol type to the VLAN.
Protocol Name Select the protocol type.
VLAN ID Enter the ID of the 802.1Q VLAN to be bound to the protocol type.
2) In the Protocol Group Member section, select the port or LAG to add to the protocol
group.
3) Click Apply.
Note:
The member port of an LAG (Link Aggregation Group) follows the configuration of the LAG but not
its own. The configurations of the port can take effect only after it leaves the LAG.
2.2 Using the CLI
2.2.1 Configuring 802.1Q VLAN
Before configuring protocol VLAN, create an 802.1Q VLAN and set the port type according
to network requirements. For details, refer to
Configuring 802.1Q VLAN
.
To Next Page
