Configuring Layer 2 Multicast Configuring MLD Snooping
Configuration Guide
319
3.1.8 Viewing MLD Statistics on Each Port
Choose the menu Multicast > MLD Snooping > Packet Statistic to load the following
page.

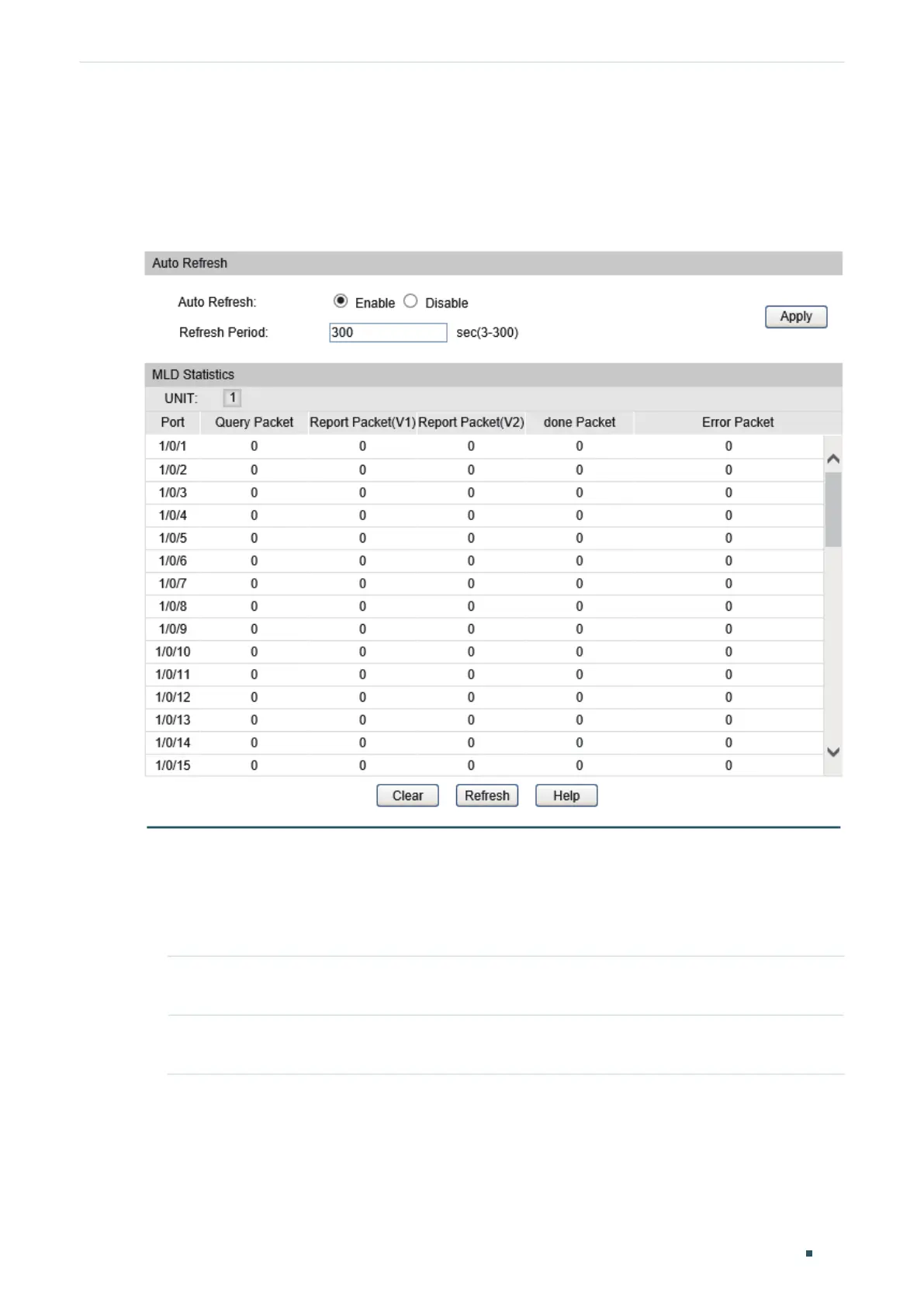

Figure 3-9 View MLD Statistics on the Port
Configuring Auto Refresh
Follow these steps to configure auto refresh.
1) Enable or disable Auto Refresh.
Auto Refresh If Auto Refresh is enabled, statistics of MLD packets on this page will refresh
automatically.
Refresh Period After Auto Refresh is enabled, enter the interval between each refresh. The valid
values are from 3 to 300 seconds.
2) Click Apply.
Viewing MLD Statistics
The MLD Statistics table displays all kinds of MLD statistics of all the ports.
