Configuration Guide 90

Managing Physical Interfaces Port Isolation Configurations

Port Isolation Configurations

5.1 Using the GUI

Choose the menu Switching > Port > Port Isolation to load the following page.

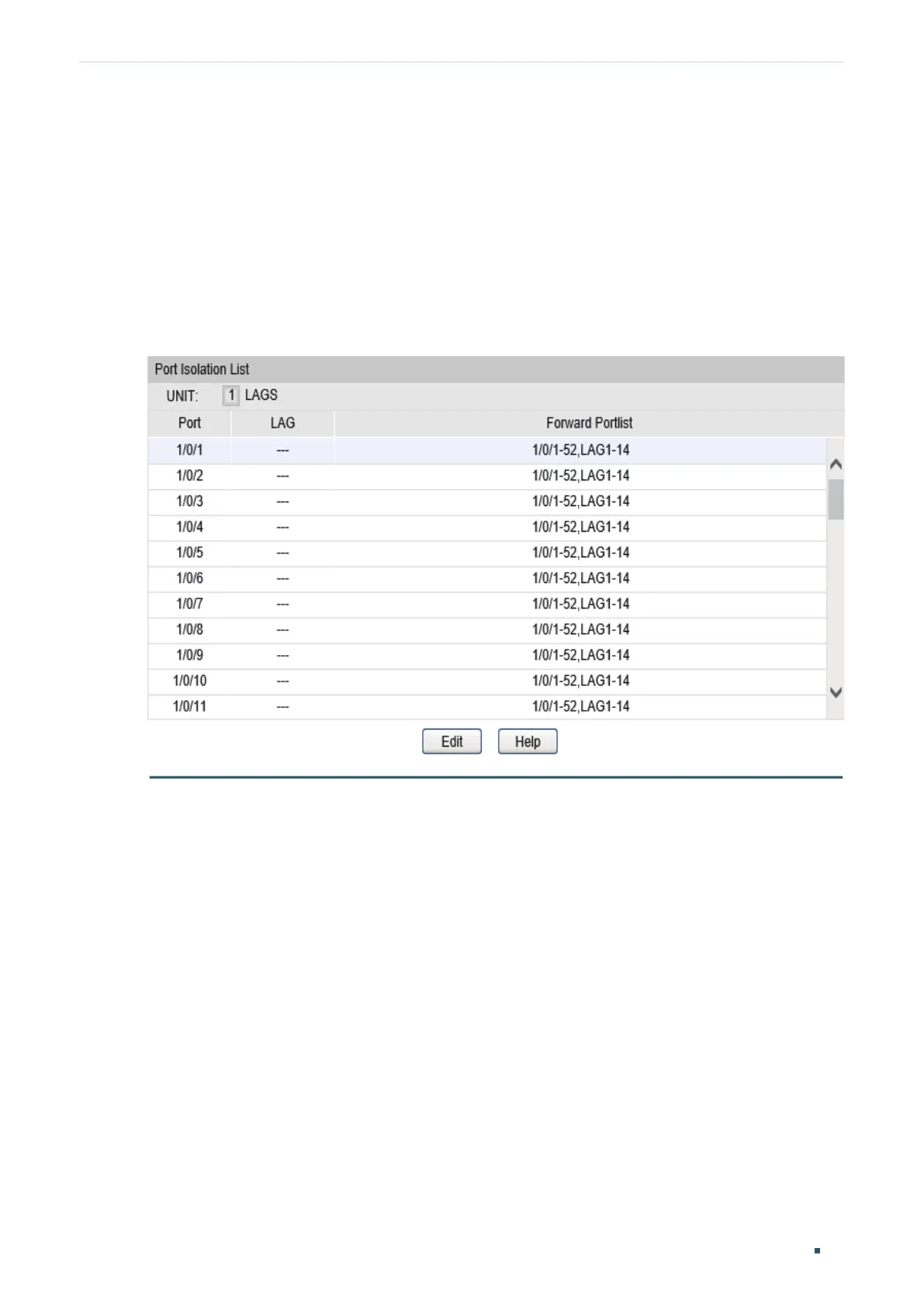

Figure 5-1 Port Isolation List

The above page displays the port isolation list. Click Edit to configure Port Isolation on the

following page.
