Configuration Guide 148
Managing MAC Address Table Example for Security Configurations
4.3 Using the GUI

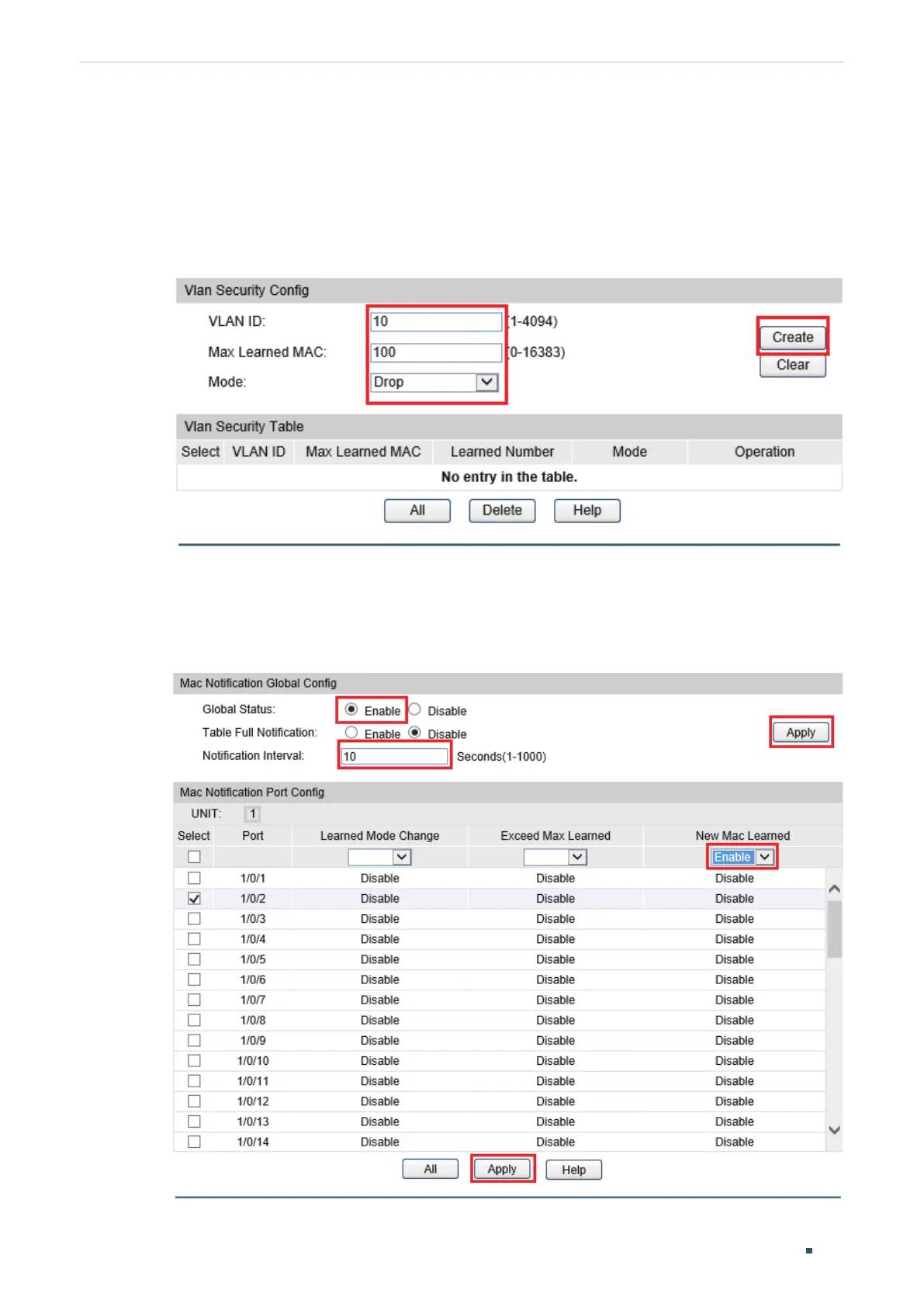

1) Choose the menu Switching > MAC Address > MAC VLAN Security to load the
following page. Set the maximum number of MAC address in VLAN 10 as 100, choose
drop mode and click Create.
Figure 4-2 Configuring VLAN Security
2) Choose the menu Switching > MAC Address > MAC Notification to load the following
page. Enable Global Status, set notification interval as 10 seconds, and click Apply.
Then, enable new-mac-learned trap on port 1/0/2 and click Apply.
Figure 4-3 Configuring New-MAC-learned Traps
