Configuration Guide 120
Configuring LAG Configuration Example

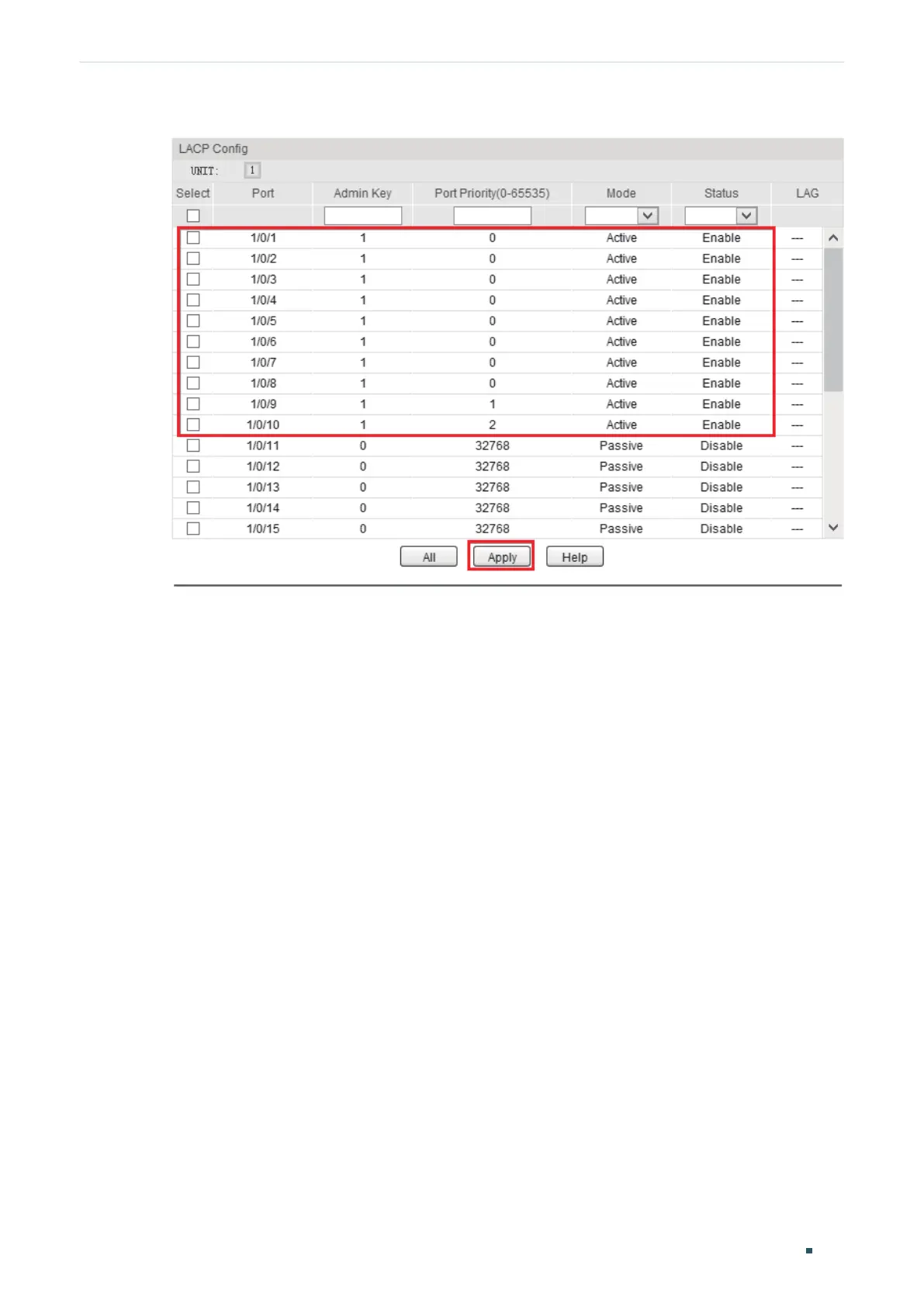

Figure 3-4 LACP Configuration
4) Click Save Config to save the settings.
3.4 Using the CLI
The configurations of Switch A and Switch B are similar. The following introductions take
Switch A as an example.
1) Configure the load-balancing algorithm as “src-dst-mac”.
Switch#configure
Switch(config)#port-channel load-balance src-dst-mac
2) Specify the system priority of Switch A as 0. Remember to ensure that the system
priority value of Switch B is bigger than 0.
Switch(config)#lacp system-priority 0
3) Add ports 1/0/1-8 to LAG 1 and set the mode as LACP. Then specify the port priority as
0 to make them active.
Switch(config)#interface range gigabitEthernet 1/0/1-8
Switch(config-if-range)#channel-group 1 mode active
Switch(config-if-range)#lacp port-priority 0
Switch(config-if-range)#exit
