Configuration Guide 86
Managing Physical Interfaces Port Security Configuration
4
Port Security Configuration
4.1 Using the GUI
Choose the menu Switching > Port > Port Security to load the following page.

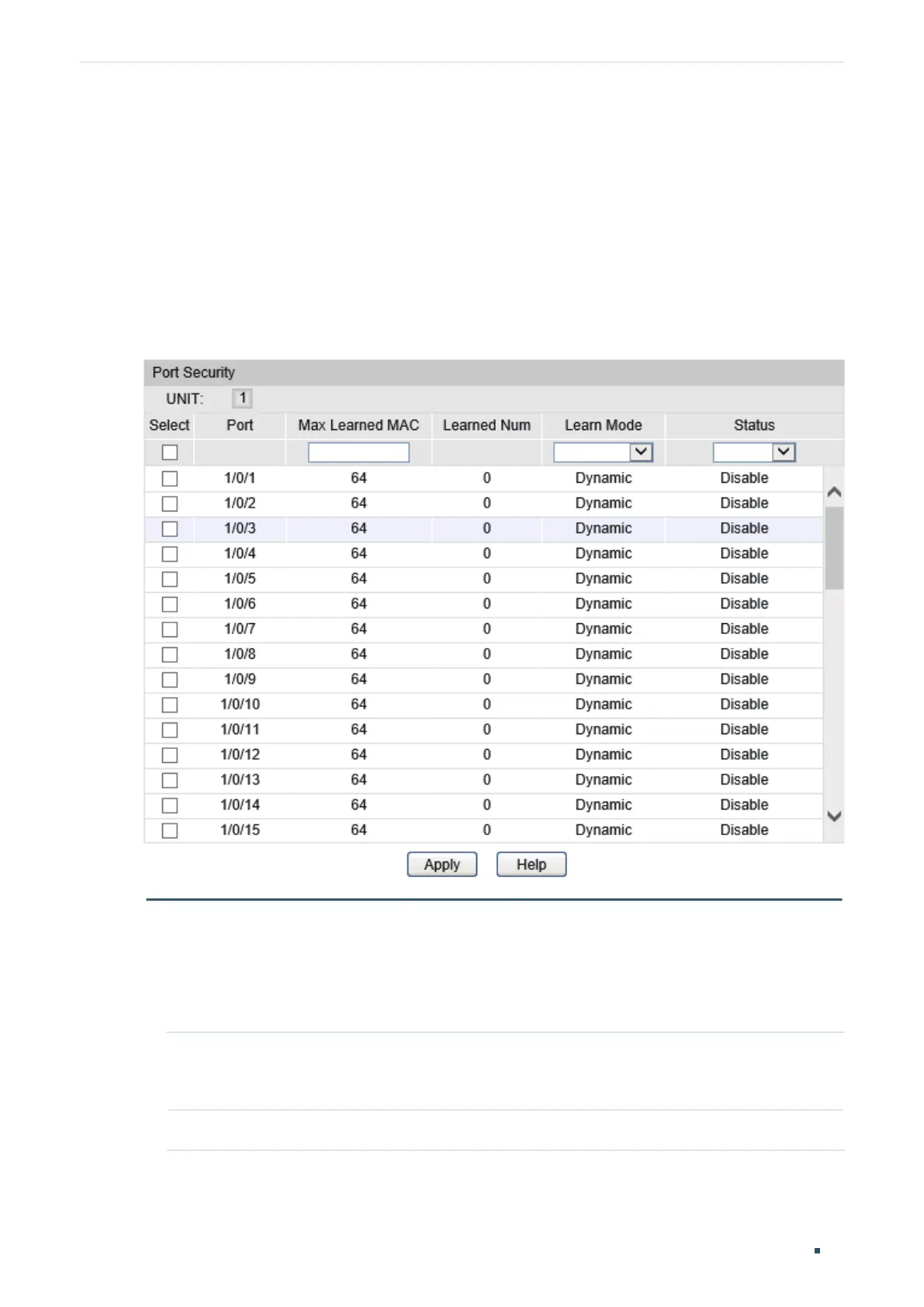

Figure 4-1 Port Security
Follow these steps to configure Port Security:
1) Select one or multiple ports for security configuration.
2) Specify the maximum number of the MAC addresses that can be learned on the port,
and then select the learn mode of the MAC addresses.
Max Learned MAC Specify the maximum number of MAC addresses that can be learned on the
port. When the learned MAC address number reaches the limit, the port will
stop learning. The default value is 64.
Learned Num Displays the number of MAC addresses that have been learned on the port.
