Configuring Layer 2 Multicast IGMP Snooping Configurations
Configuration Guide
271
2.1.2 Configuring the Port’s Basic IGMP Snooping Features
Choose the menu Multicast > IGMP Snooping > Port Config to load the following page.

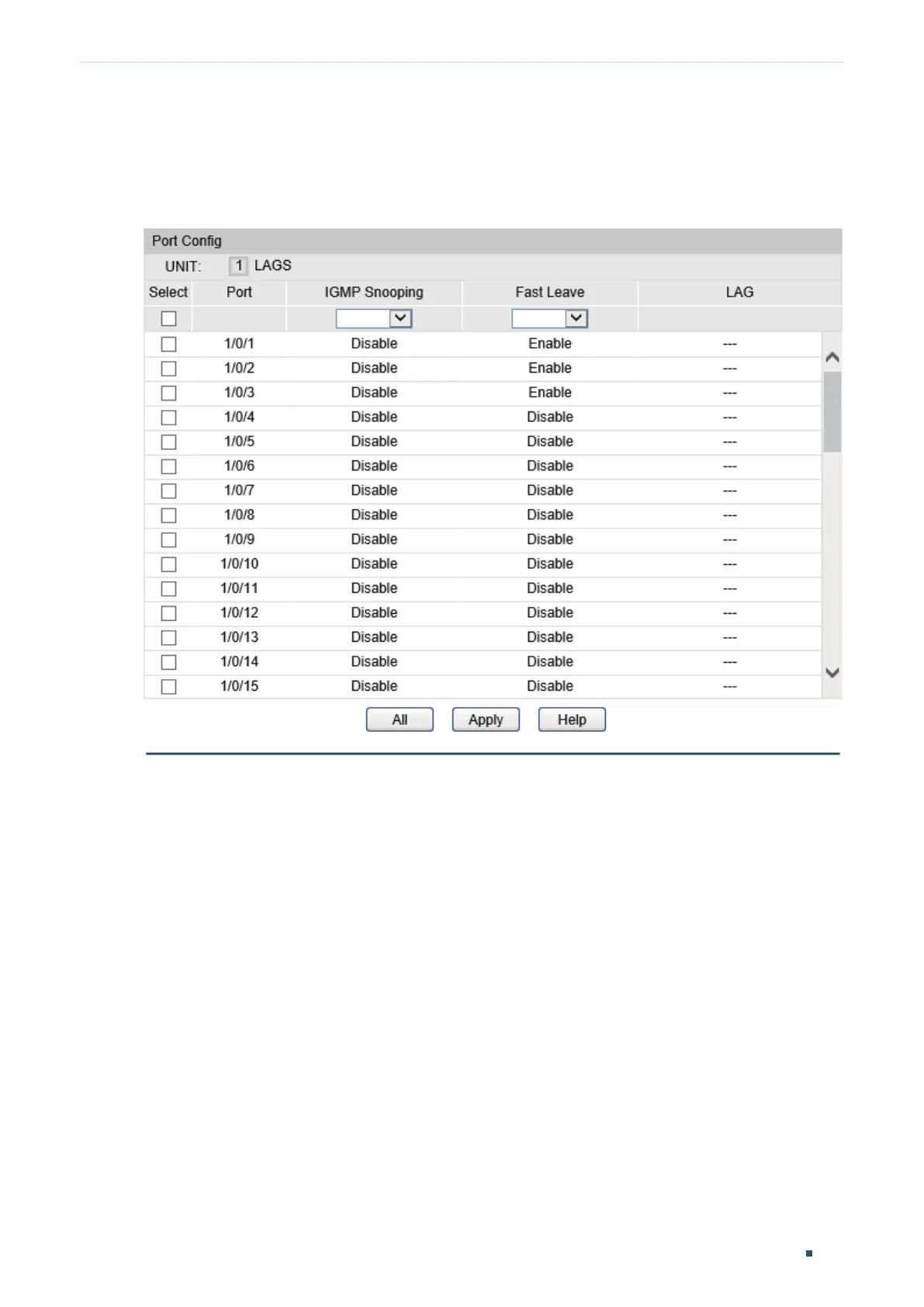

Figure 2-2 Enable IGMP Snooping on Port
Enabling IGMP Snooping on the Port
Follow these steps to enable or disable IGMP Snooping on the port.
1) Select the port to be configured and select Enable under the IGMP Snooping column.
2) Click Apply.
(Optional) Configuring Fast Leave
With Fast Leave enabled on a port, the switch will remove this port from the forwarding
list of the corresponding multicast group once the port receives a leave message. Once
deleted, the switch will no longer forward MASQs to this port to verify if there are other
members of this multicast group.
Follow these steps to configure fast leave.
1) Select the port to be configured and select Enable under the Fast Leave column.
