Configuration Guide 238

Configuring Spanning Tree STP Security Configurations

STP Security Configurations

With STP security, you can:



Configure the Loop Protect function.



Configure the Root Protect function.



Configure the TC Protect function.



Configure the BPDU Protect function.



Configure the BPDU Filter function.

4.1 Using the GUI

4.1.1 Configuring the STP Security

Choose the menu Spanning Tree > STP Security > Port Protect to load the following

page.

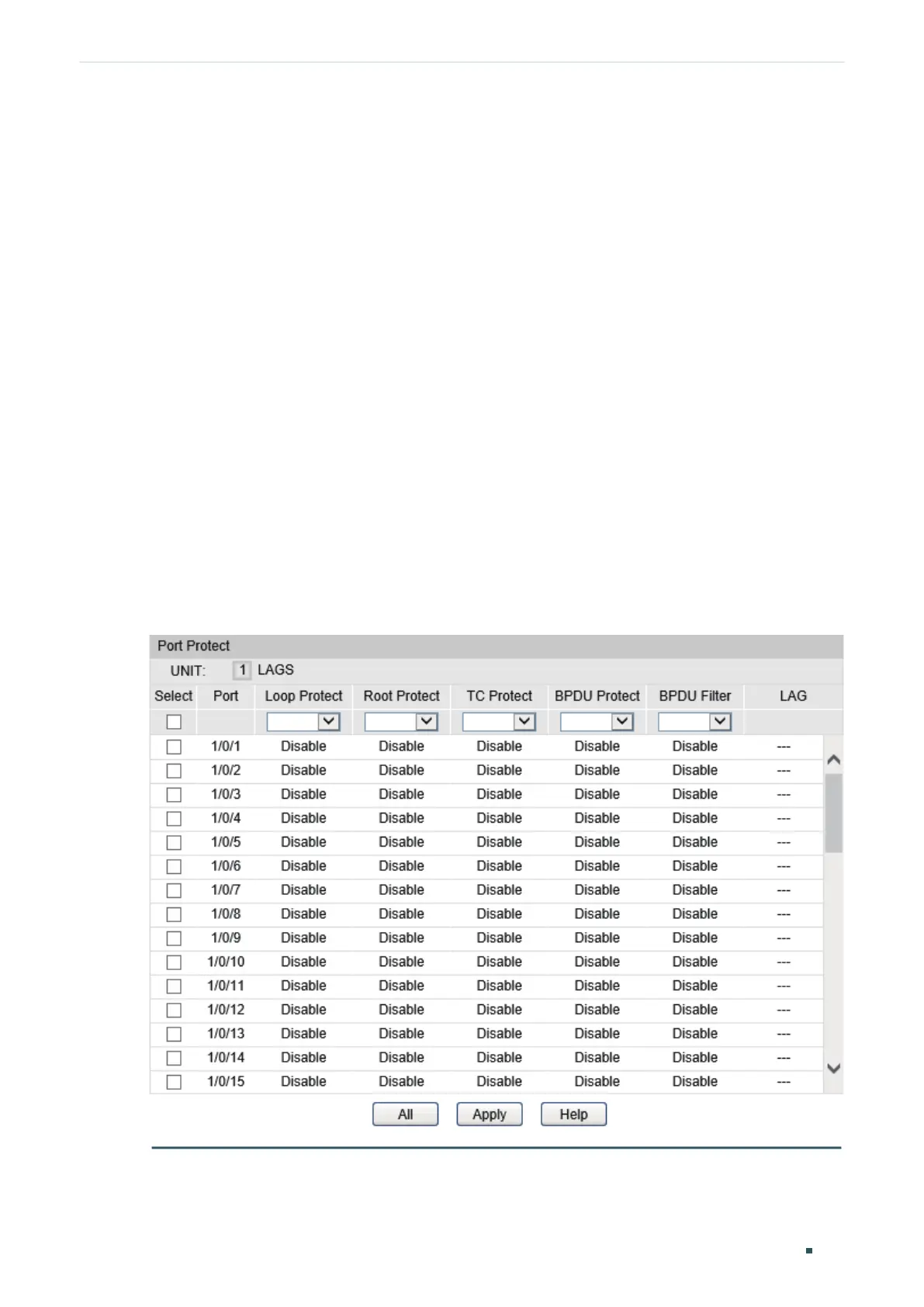

Figure 4-1 Configuring the Port Protect
