7.1.4 Using the CLI
Switch#configure
Switch(config)#monitor session 1 destination interface gigabitEthernet 1/0/1
Switch(config)#monitor session 1 source interface gigabitEthernet 1/0/2-5 both
Switch(config)#end
Switch#copy running-config startup-config
Verify the Configuration
Switch#show monitor session 1
Monitor Session: 1
Destination Port: Gi1/0/1
Source Ports(Ingress): Gi1/0/2-5
Source Ports(Egress): Gi1/0/2-5
7.2 Example for Port Isolation
7.2.1 Network Requirements
As shown below, three hosts and a server are connected to the switch and all belong to
VLAN 10. With the VLAN configuration unchanged, Host A is not allowed to communicate
with the other hosts except the server, even if the MAC address or IP address of Host A is
changed.

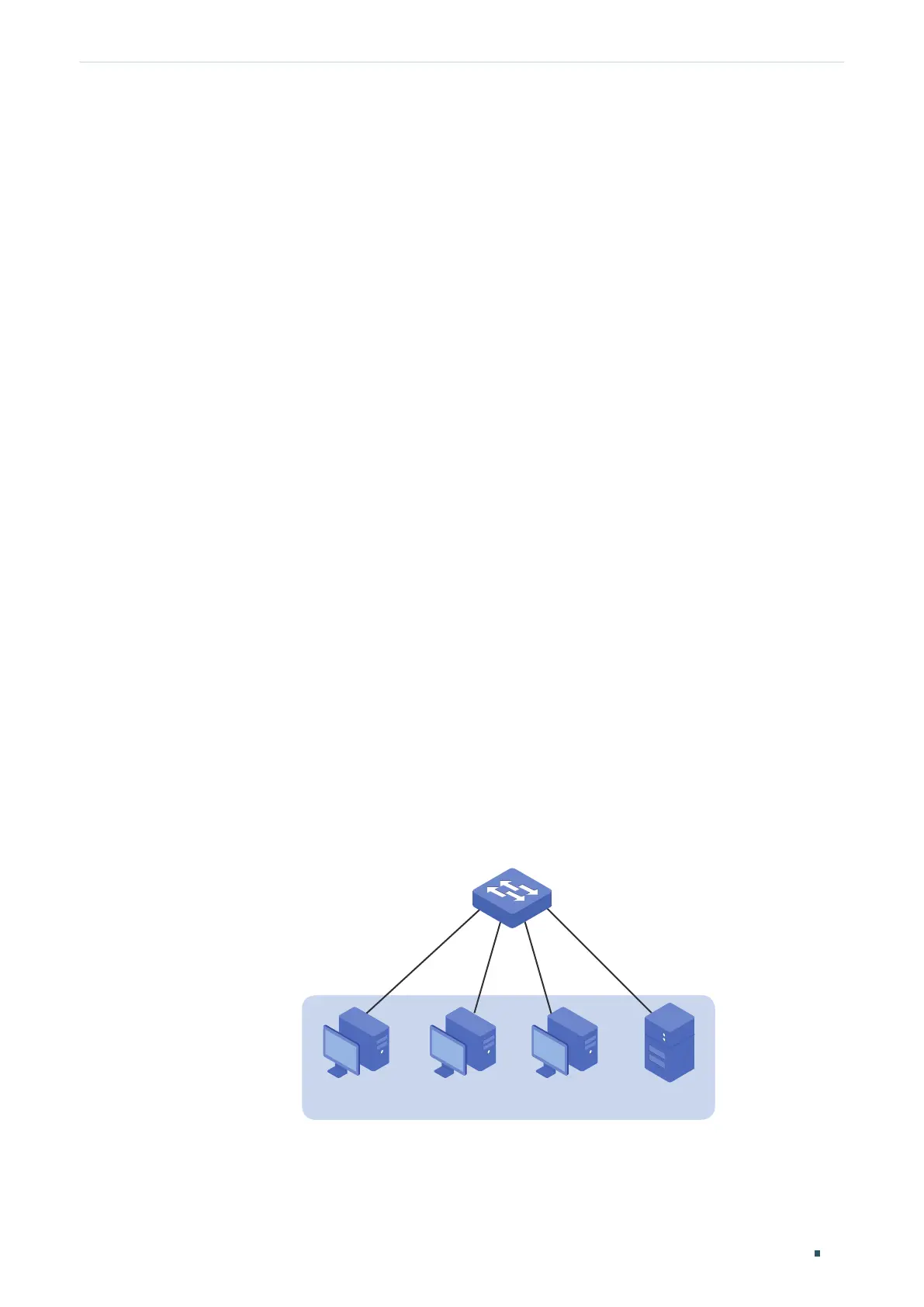

Figure 7-5 Network Topology
VLAN 10
Switch
Gi1/0/1
Gi1/0/2
Gi1/0/4
Gi1/0/3
Host A
Host B Host C Server
