Configuration Guide 98
Managing Physical Interfaces Configuration Examples

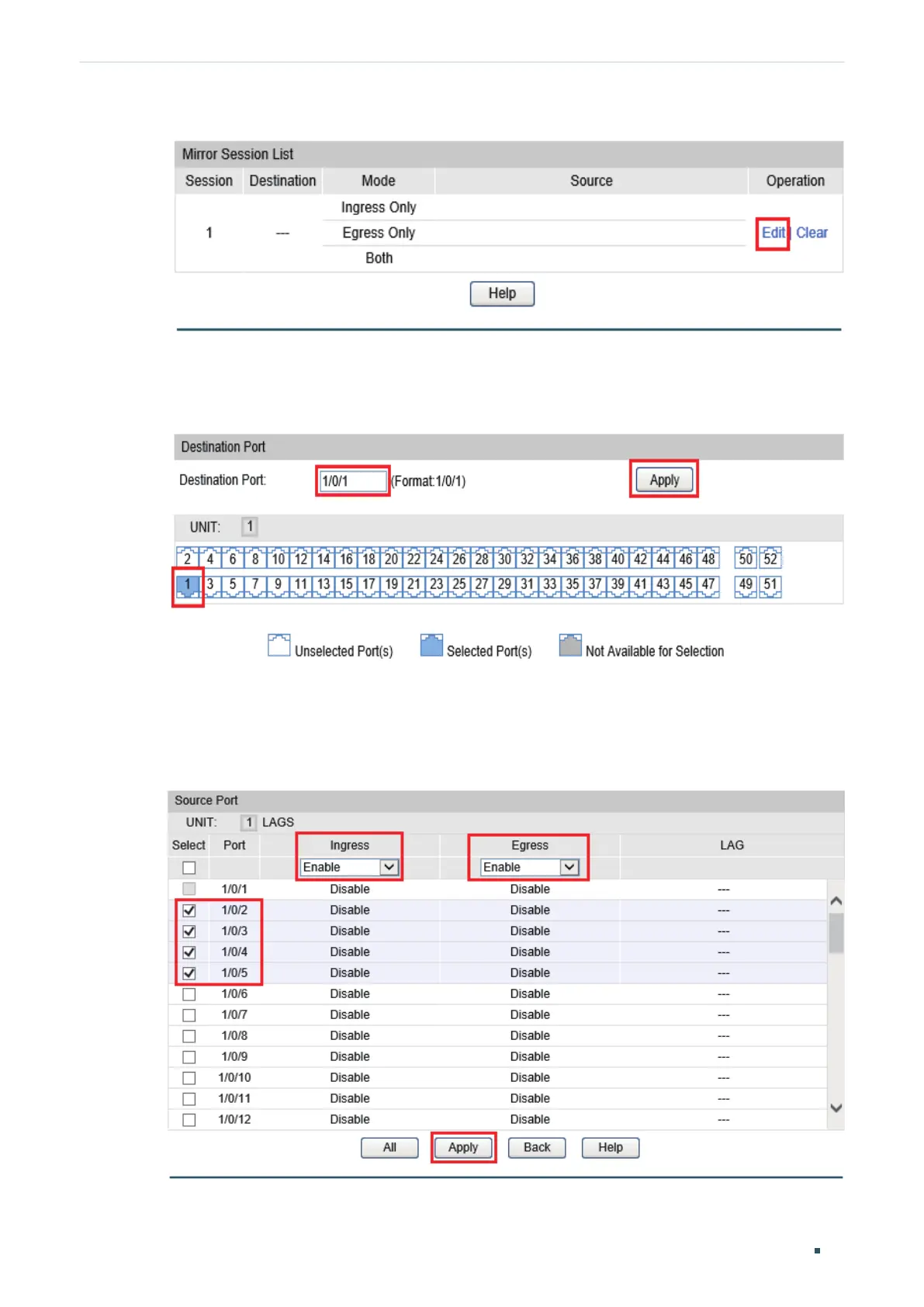

Figure 7-2 Mirror Session List
2) Click Edit on the above page to load the following page. In the Destination Port section,
select port 1/0/1 as the monitoring port and click Apply.
Figure 7-3 Destination Port Configuration
3) In the Source Port section, select ports 1/0/2-5 as the monitored ports, and enable
Ingress and Egress to allow the received and sent packets to be copied to the
monitoring port. Then click Apply.
Figure 7-4 Source Port Configuration
4) Click Save Config to save the settings.
