Configuring LLDP Configuration Example
Configuration Guide
653

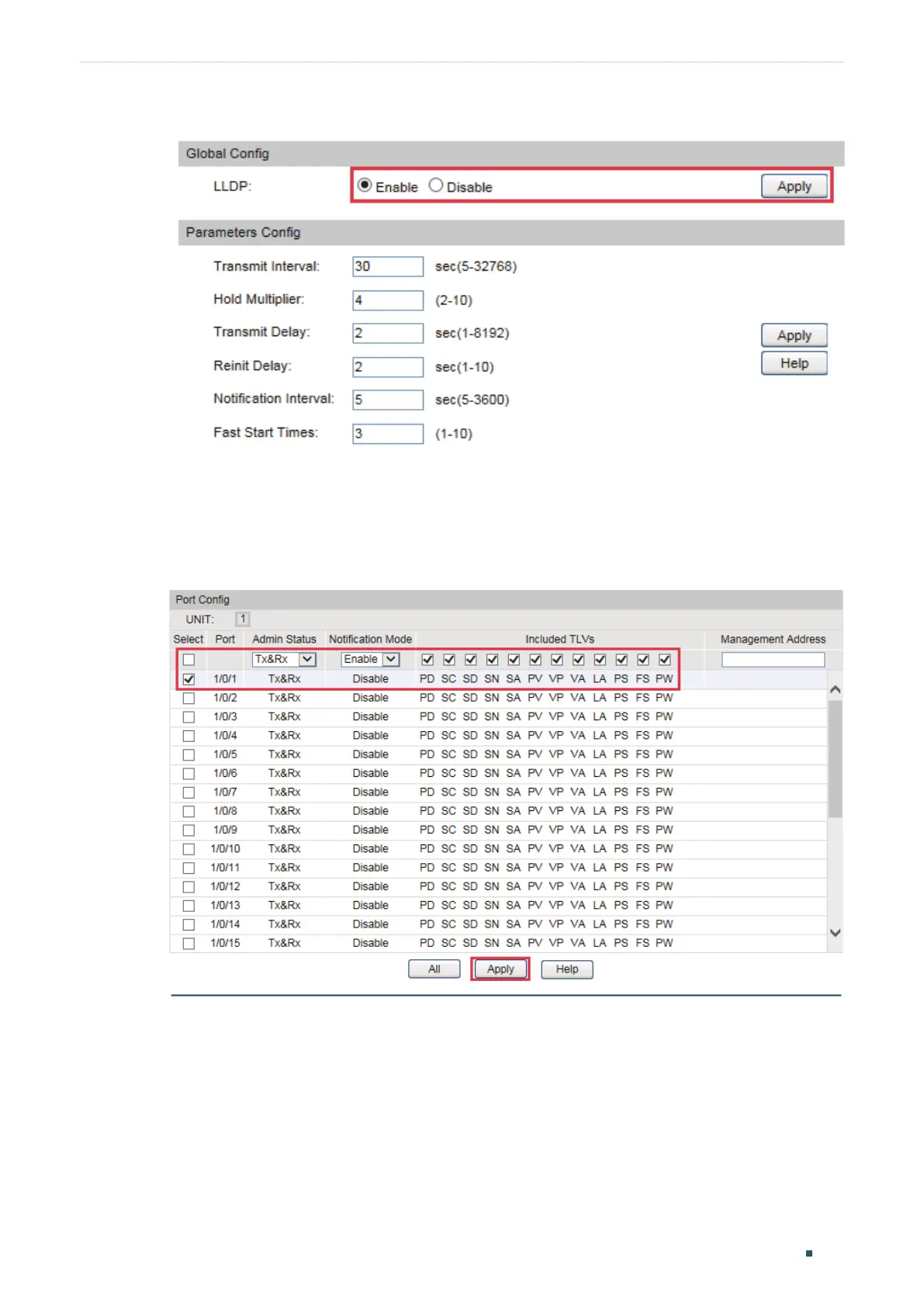

Figure 6-2 LLDP Global Config
2) Choose the menu LLDP > Basic Config > Port Config to load the following page. Set
the Admin Status of port Gi1/0/1 to Tx&Rx, enable Notification Mode and configure all
the TLVs included in the outgoing LLDP packets.
Figure 6-3 LLDP Port Config
6.1.5 Using CLI
1) Enable LLDP globally and configure the corresponding parameters.
Switch_A#configure
Switch_A(config)#lldp
Switch_A(config)#lldp hold-multiplier 4
